Product number:
6096200

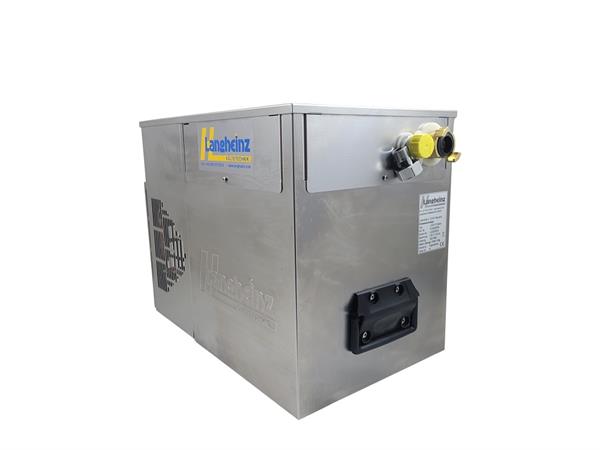

For tempering the honey during the creaming process – this produces the finest cream honey!
Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat.
The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.
The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.
The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.
The device can only be used for cooling.
Technical Data:
Water connection: 3/4"
Cooling power: 457 W at0 °C, 527 W at +5 °C
Electrical power: 230 V, 50 Hz, 2,1 A / 350 W
Cooling machine: DLE4CN
Cooling refrigerant: R290
Filling quantity: 60 g
Tank content: 12,5 litre
Measurements (L/D/H): 480 x 300 x 400 mm
Casing: stainless steel
Agitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 W
Weight: 25 kg
Shipping weight: 37 kg
Optional Accessories - Please order separately:
Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamer
Item no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamer
Item no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer
6096000-5
Accessories for Water cooling system with circulation pump for 100 kg double walled tank (production year 2023 or later) including the following:
Accessories for Water cooling system (item no. 6096100) to connect to a double walled 100 kg tank (production year 2023 or later) with return circulation distributor - picture similar
6096000-7
Accessories for Water cooling system with circulation pump (2023 or later) and double walled tank (2022 or earlier / 3/4")
Accessories for Water cooling system with circulation pump (production 2023 or later) and double walled tank (production 2022 or earlier / with overflow outside thread 3/4")
6096000-3
Accessories for Water cooling system with circulation pump for 300 kg double walled tank (production 2023 or later) including the following:
Accessories for Water cooling system (item no. 6096100) to connect to a double walled 300 kg tank (production year 2023 or later) with return circulation distributor - picture similar
6096000-4

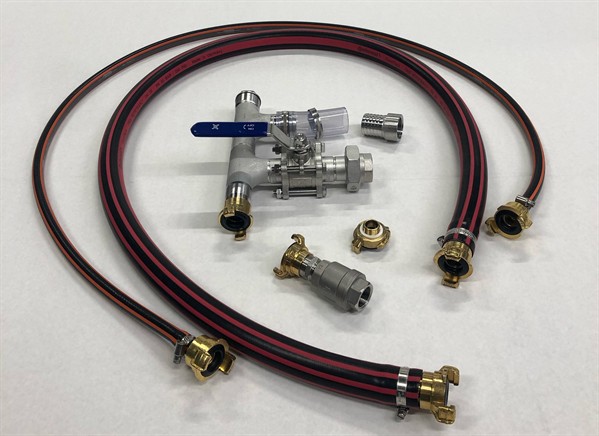

Accessories for Water cooling system with circulation pump for 600 kg double walled tank (production year 2023 or later) including the following:
Accessories for Water cooling system (item no. 6096100) to connect to a double walled 600 kg tank (production year 2023 or later) with return circulation distributor - picture similar
6096000-6

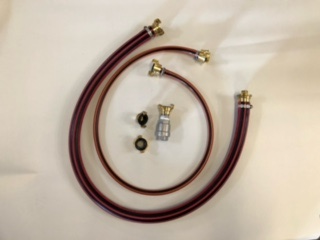

Accessories for Water cooling system with circulation pump (2023 or later) and double walled tank (2022 or earlier / 1")
Accessories for Water cooling system with circulation pump (production 2023 or later) and double walled tank (production 2022 or earlier / with overflow outside thread 1")
