Product number:
5092100
Product information
This timer is suitable for all honey stirrers and mixers with 400 V motor.
Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)
One of our experienced employees does the installation.
Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)
One of our experienced employees does the installation.
Login
accessories
5822300
CFM-Honey creamer 300 kg (double walled)
This double-walled honey creamer is especially suitable for mixing different blossom honey varieties. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 °C - 30 °C. In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.Technical details:• flat gear motor 550 W / 400 V• approx. 24 rpm• paddle screw with rake at the bottom• minimum filling quantity: 100 kg• inner tank Ø 55 cm, welded bottom without gap• outer tank Ø 60 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6 kW / 400 V• capacity for double wall: approx. 72 liter• outer tank height: 114 cm• total height: 157 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without/with wrapping: 88 kg / 110 kgPacked on a wooden palletChargeable weight: 110 kg Accessories to be ordered separately:Item no. 5092100 Timer switchItem no. 5097050 Stand
5221000

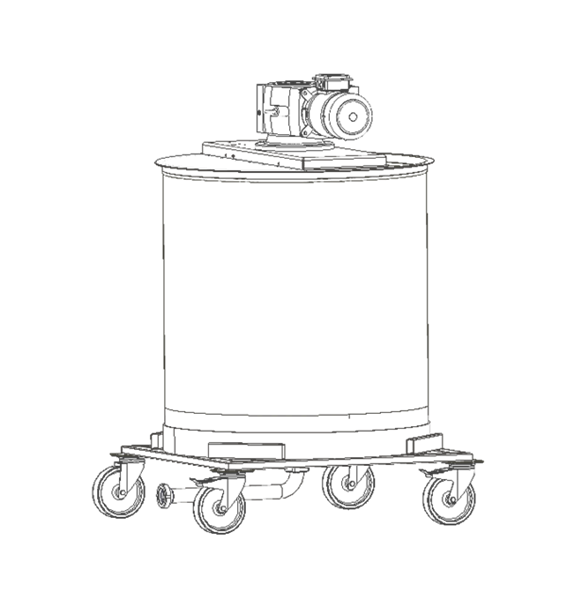

CFM-Honey creamer / homogenizer for 1000kg, motor 2200W / 400 V, DN50 disc valve
Technical details:• Flat gear motor 2200 W / 400 V• Approx. 12 rpm• Paddle rake• Inner tank Ø 100 cm welded bottom without gap• Tank bottom with outlet at bottom center• Outlet: DN50 disc valve under the tank, elbow pipe with DN50 dairy thread connection at the level of the tank wall• Incl. stand, solid stainless steel tube construction with 4 wheels, 2 of which are equipped with parking brake• Distance from floor to dairy thread connection 7 cm• Material: Stainless steel• Tank height incl. stand: 140 cm• Total height: 180 cmWeight without/with wrapping: approx. 244 kg / 275 kgPacked on a palletChargeable weight: 275 kg Accessories - please order separately:Item no. 5091300 bottom heatingItem no. 5092100 timer switch
5022300
CFM-Honey creamer 300 kg

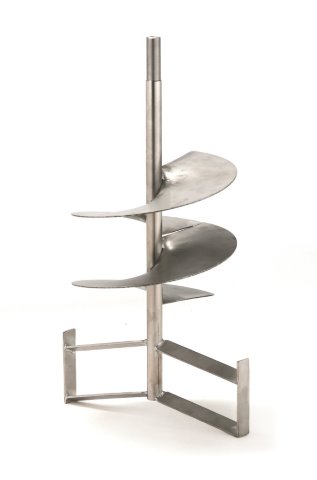

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!Technical details:• Flat gear motor 550 W / 400 V• Approx. 25 rpm• Paddle screw with rake at the bottom• Minimum filling quantity: 100 kg• Inner tank Ø 55 cm welded bottom without gap• Rigid handles• Tank bottom with slope to the outlet• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve• Material: Stainless steel• Outer tank height: 104 cm• Total height: aprox. 147 cmWeight without/with wrapping: 66 kg / 82 kgPacked on a palletChargeable weight: 82 kg Accessories - please order separately:Item no. 5091200 bottom heatingItem no. 5092100 timer switchItem no. 5097010 stand for 300 kg creamer
5822600

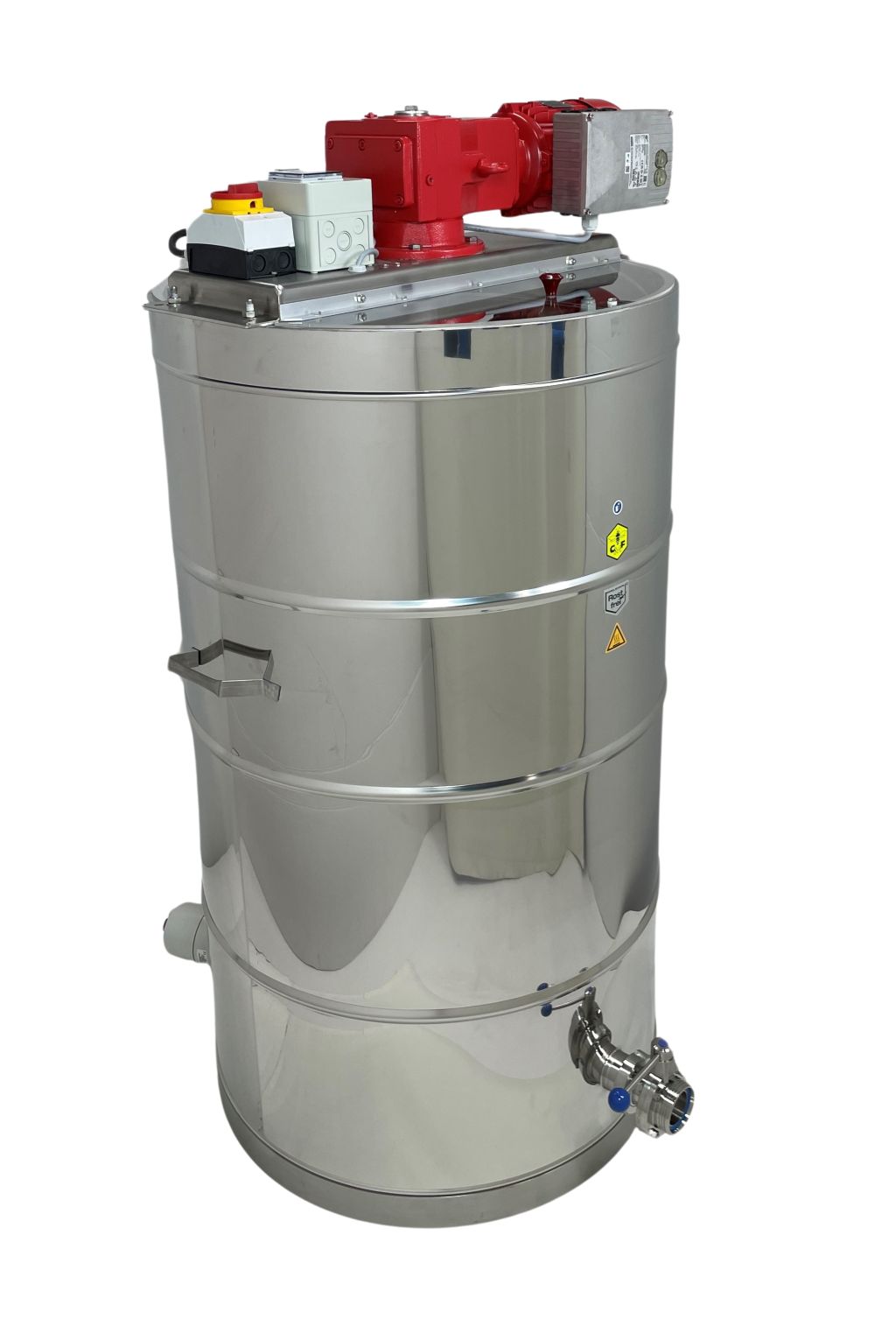

CFM-Honey creamer 600 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25-30°C.In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (Rake has to be covered with honey)!Technical details:• flat gear motor 1100 W / 400 V• approx. 18 rpm• paddle screw with rake at the bottom• minimum filling quantity: 130 kg• inner tank Ø 72 cm, welded bottom without gap• outer tank Ø 77 cm• rigid handles• tank bottom with slope to the outlet• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve• material: stainless steel• heater 6kW / 400 V• capacity for double wall: approx. 92 liter• outer tank height: 137 cm• total height: 162 cmPlease note:We recommend filling the double wall with water (eg filtered rainwater).Weight: without wrapping: approx. 175 kg / with wrapping 185 kgPacked on a palletChargeable weight: 185 kg Optional accessories - please order separately:Item no. 5092100 timerItem no. 5097031 stand
