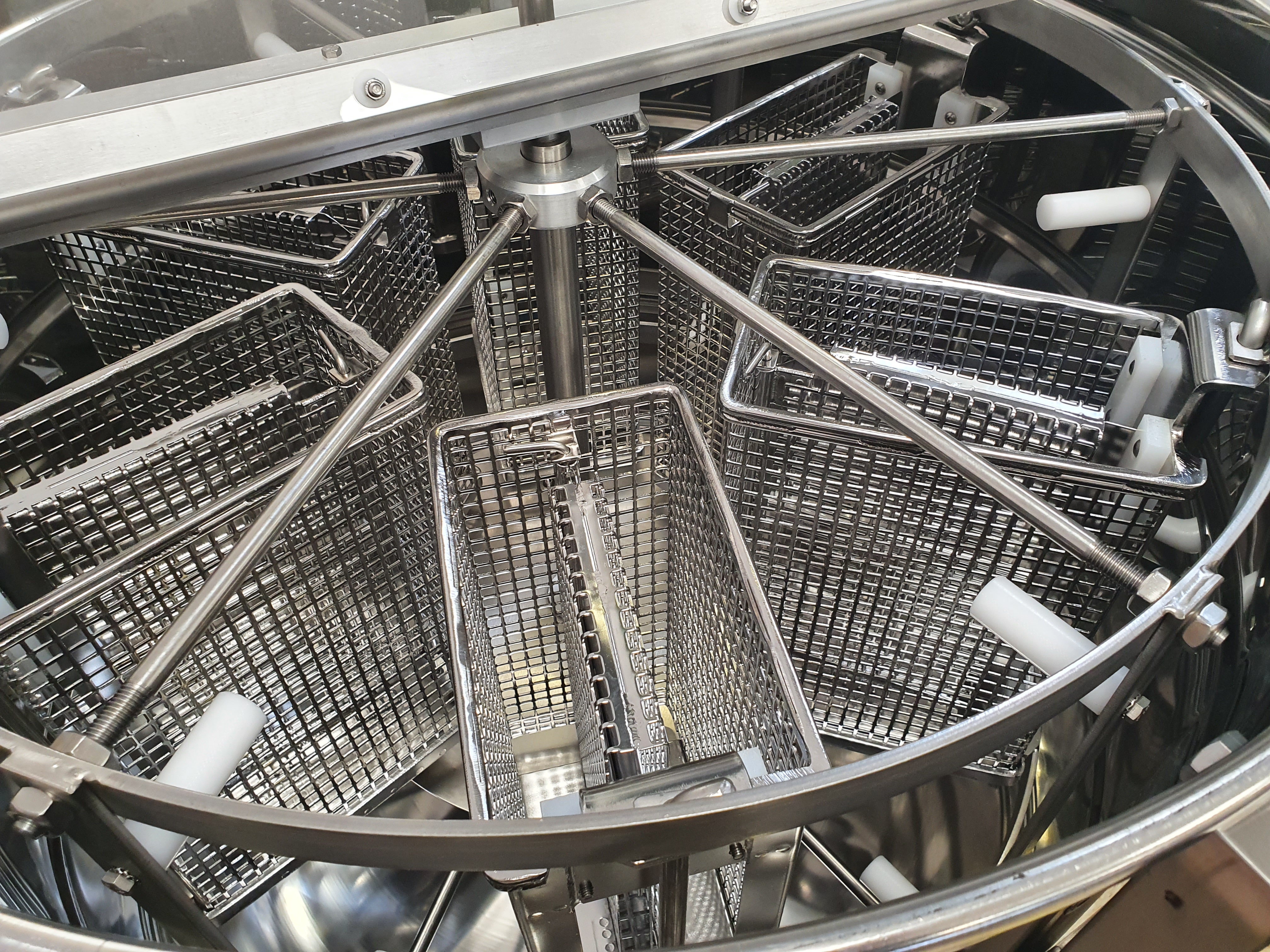

Honey extractor with double pockets

A honey extractor with double pockets offers a maximum capacity (number of honeycombs) by using a minimum of space. Two honeycombs are inserted into one pocket.The honey extractor can thus empty substantially more honeycombs in the same time than a conventional honey extractor can.

5535025

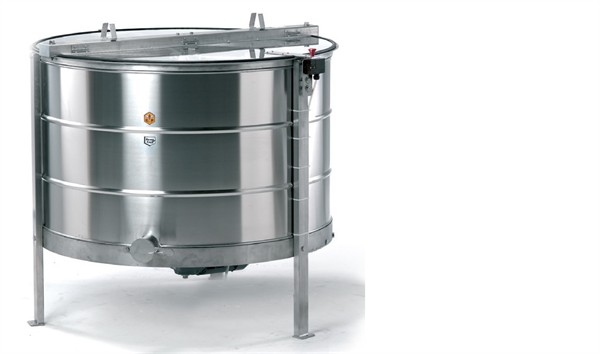

CFM-Double pocket honey extractor 24 shallow frames, motor drive 1500 W underneath, fully automatic

Suitable for: • 24 shallow frames sidebar length up to 25 cm Technical details: • Emergency stop botton • Safety device with lid lock • Bottom drive 1500 W / 230 V • Fully automatic speed control with wall holder • Hinged acrylic glass lid halfs • Inner tank Ø 125 cm, welded bottom withouth gap • Tank bottom with slope to the outlet • 6 double pockets size 27 cm x 45 cm • Slots for frame lugs • Material:stainless steel • Loading height 117 cm • Total height 131 cm • Distance from the floor to the honey tap 38 cm • Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap Weight: XX kg, packed on a wooden pallet Tripod (5055500) for speed control has to be ordered separatly! (Picture similar)

€13,429.00*

5522017

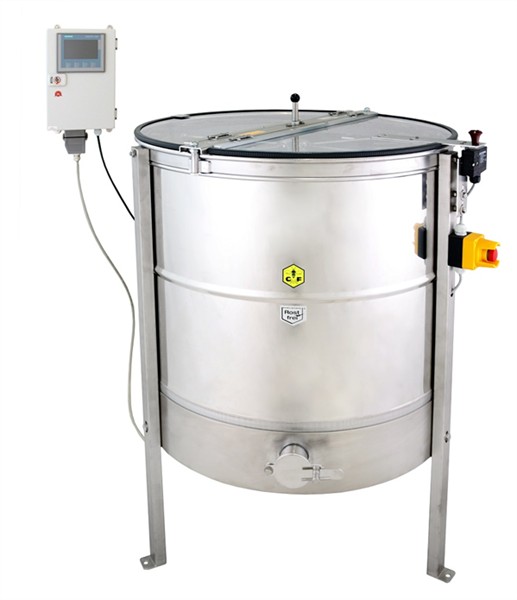

CFM-Double pocket honey extractor 12 shallow frames, motor drive 370 W underneath, fully automatic

Suitable for: • 12 shallow frames sidebar length up to 17 cm Technical details: • Emergency stop botton • Safety device with lid lock • Bottom drive 370 W / 230 V • Fully automatic speed control with wall holder • Hinged acrylic glass lid halfs • Inner tank Ø 77 cm, welded bottom withouth gap • Tank bottom with slope to the outlet • 6 double pockets size 19 cm x 45 cm • Slots for frame lugs • Material:stainless steel • Loading height 110 cm • Distance from the floor to the honey tap 38 cm • Outlet: 2" honey tap, welded at bottom level Weight: XX kg, packed on a wooden pallet Tripod (5055000) for speed control has to be ordered separatly! (Picture similar)

€7,364.00*
