A honey extractor with top drive means that the motor is mounted on top of the honey extractor on a crossbar. The complete drive must be removed for cleaning. The crossbar with motor can be easily detached by the wing screws.

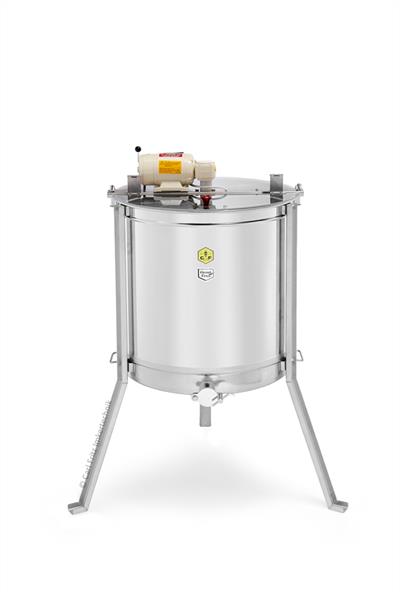

5155012
CFM-Honey extractor 12 shallow frames, radial, with "Extractor Witch"
The smallest of our CFM-Honey radial extractors with "Extractor Witch" (motor drive).
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 110 W / 230 V
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 111 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 30 kg / 24 kg
Wrapping: cardboard box
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request

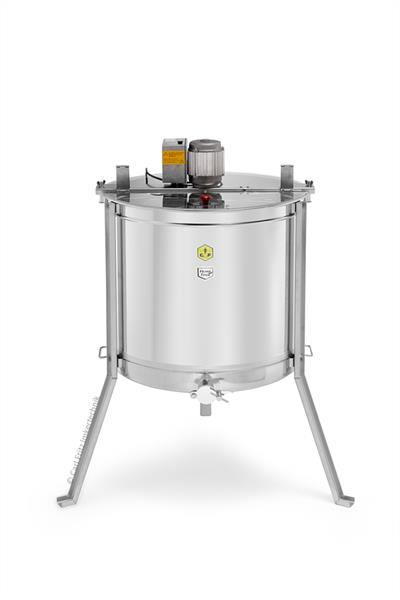

5263018
CFM-Radial extractor Ø 63cm, 18 shallow frames with "Whispering Witch"
The basic model of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 18 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303818 3 grids
Item no. 5003840 4 frames tangential cage 38 x 46cm
Acrylic glass lid half on request

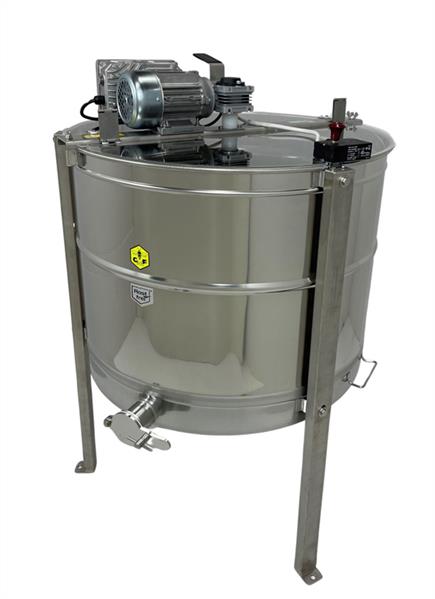

5772028
CFM-Radial extractor Ø 72cm, 16 deep/28 shallow frames, motor 270W
Suitable for:
• 16 deep frames / 28 shallow frames (side bar up to 17 cm and side bar width 35 mm)
• Frame sizes: Dadant super, Zander, Zander half and super, German Standard, German Standard half and super, Langstroth frames, 16 Manley frames
Technical details:
• Top drive with safety device and lid locking system
• Motor 270 W / 230 V
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 16 deep frames / 28 shallow frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 115 cm
• Distance from the floor to the honey tap: 38 cm
Included in the delivery:
1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 40 kg / 66 kg
Wrapping: Wooden pallet
Chargeable weight: 66 kg
Spare parts and accessories:
Item no. 6000070 Ball for bottom bearing
Item no. 6300062 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203828 Radial cage for 16 deep / 28 shallow frames
Item no. 5303828 Grids to insert into the cage
Acrylic glass lid half on request

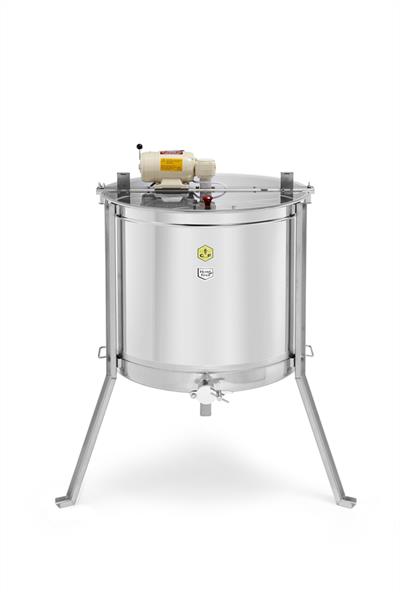

5163018
CFM-Radial extractor Ø 63cm, 18 shallow frames, with "Extractor Witch"
The basic model of our radial extractors with motor. The extractor has a honey tap and practical handles at the tank.
For cleaning just open the wing nuts at the cross-beam and take off the complete drive including the lids.
Suitable for:
• 18 shallow frames (side bar up to 16 cm and side bar width 42 mm)
• Frame sizes: Dadant super, Zander half and super, German Standard half and super, Langstroth half and super frames
Technical details:
• Top drive with safety device
• Motor 110 W / 230 V
• Hinged acrylic glass lid halfs
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 111 cm
• Distance from the floor to the honey tap: 38 cm
• Conversion into tangential extractor possible
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: approx. 50 kg / approx. 40 kg
Wrapping: cardboard box
Chargeable weight: 50 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203818 Radial cage for 18 shallow frames
Item no. 5303818 Grids to insert into the cage
Item no. 5003840 4-Frames tangential cage
Acrylic glass lid half on request

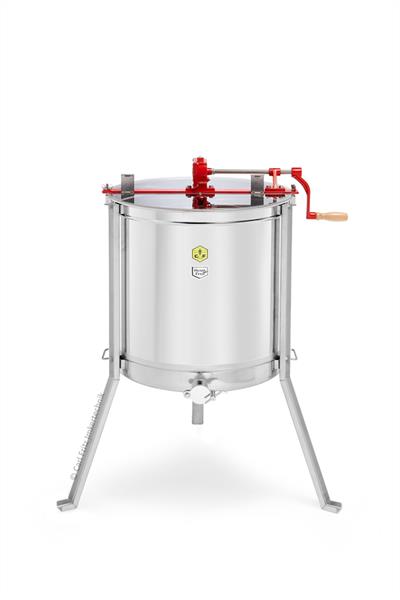

5055012

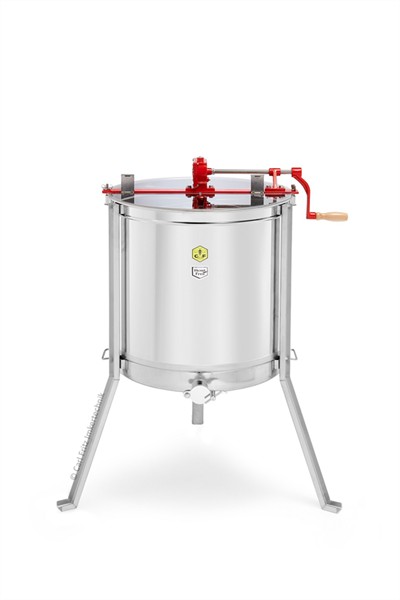

CFM-Honey extractor 12 shallow frames, radial, manual drive
The smallest of our CFM-Honey radial extractors with manual drive
Advantages are the compact design and the fact that you can run this honey extractor without electricity.
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
Technical details:
• Manual drive with hinged lid halfs
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 110 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 26 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request

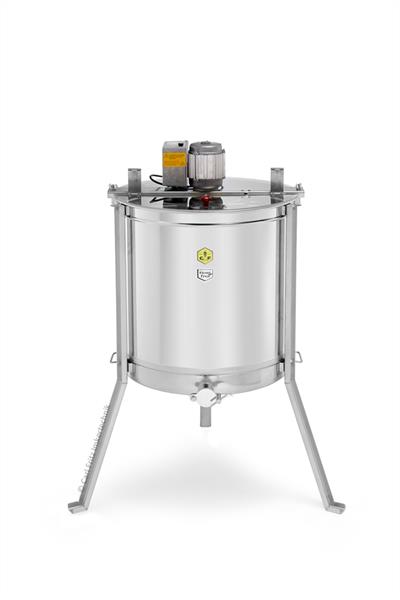

5255012
CFM-Radial extractor 12 shallow frames, with "Whispering Witch"
The smallest of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request
8.31
%
Z5772028
II. Choice CFM-Radial extractor Ø 72cm, 16 deep/28 shallow frames, motor 270W
*** Special price II. choice with small flaws - works perfectly ***
Suitable for:
• 16 deep frames / 28 shallow frames (side bar up to 17 cm and side bar width 35 mm)
• Frame sizes: Dadant super, Zander, Zander half and super, German Standard, German Standard half and super, Langstroth frames, 16 Manley frames
Technical details:
• Top drive with safety device and lid locking system
• Motor 270 W / 230 V
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 16 deep frames / 28 shallow frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 115 cm
• Distance from the floor to the honey tap: 38 cm
Included in the delivery:
1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 40 kg / 66 kg
Wrapping: Wooden pallet
Chargeable weight: 66 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300062 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203828 Radial cage for 16 deep / 28 shallow frames
Item no. 5303828 Grids to insert into the cage
Acrylic glass lid half on request

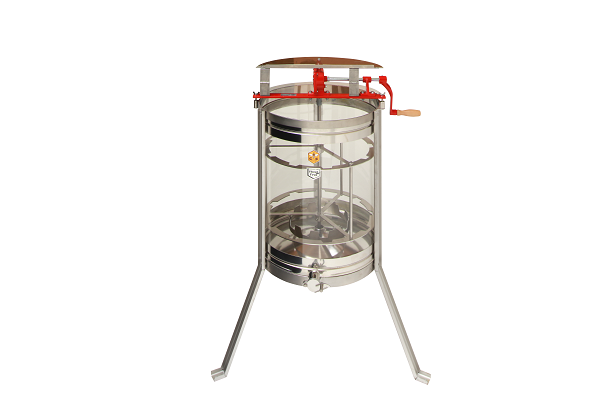

5037050
CFM-Acrylic glass radial extractor, 9 shallow frames, manual drive
Suitable for:
• 9 shallow frames (side bar length up to 16 cm and side bar width 40 mm)
• Frame sizes: Dadant shallow, Zander shallow, DN shallow, Langstroth shallow
Technical details:
• Manual drive
• Hinged acrylic glass lid halves
• Inner tank Ø 50 cm
• Material: Stainless steel and food grade acrylic glass
• Grids available to insert into cage for tangential extracting
• Ideal for demonstration of extracting process
• Total height 116 cm
• Distance from floor to the tap / bottom of tank: 40/38 cm
• Honey tap clear span Ø 36 mm
Weight without/with wrapping: 20 kg / 25 kg
Wrapped in a cardboard box
Chargeable weight: 34 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20g
Item no. 23045001 Sealant for bottom bearing
Item no. 5037033 3 grids made of stainless steel
Acrylic glass lid half on request
5303820

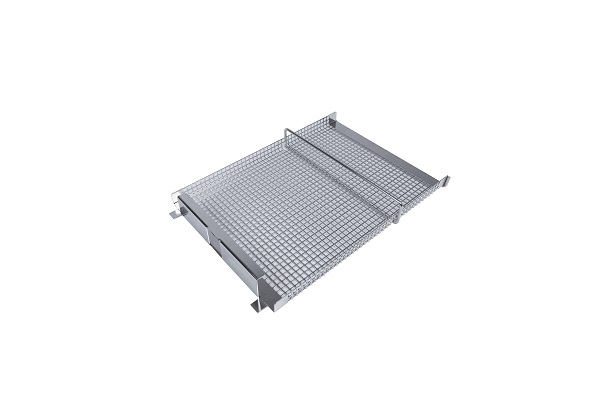

4 Einhängegitter für 20 Waben Radialschleuder mit Kesselinnen-Ø 72 cm
• Gitterfläche 360 x 450 mm
• 4 Einhängegitter aus Edelstahl-Rostfrei
• zum Einhängen in Radialschleudern mit Kesselinnen-Ø 72 cm
• für 4 Ganz- oder 8 Halbrahmen
Passend zu Honigschleuder Art.-Nr. 5272028 und 5772028
5263012-CH

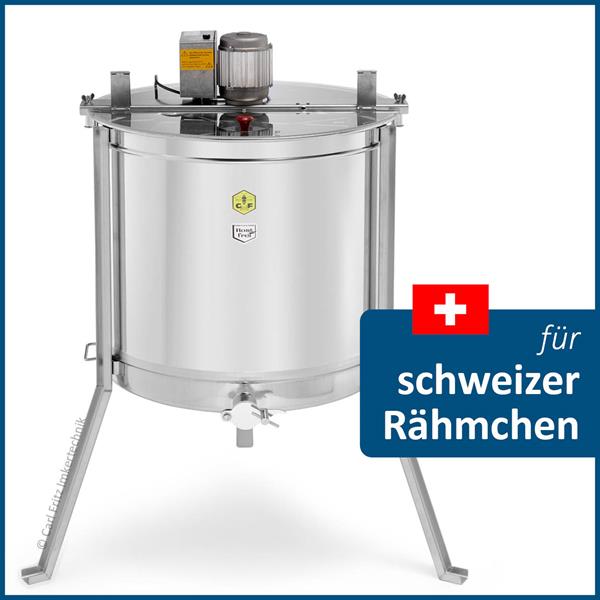

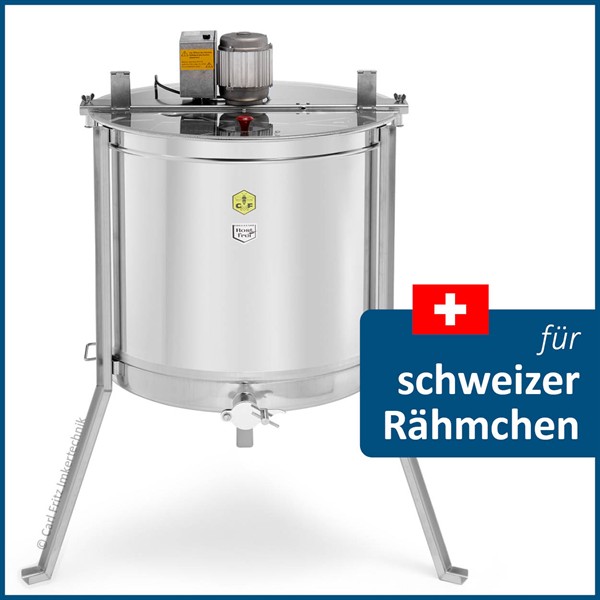

CFM-Radial extractor Ø 63cm, 12 SWISS frames, with "Whispering Witch"
Our Radial extractor especially for SWISS frames with adjusted cage height.
The extractors is equipped with our new "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 17.5 cm side bar length and 40 mm side bar width
• Frame sizes: low cage version especially made for SWISS frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 SWISS frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: approx. 50 kg / approx. 40 kg
Wrapping: cardboard box
Chargeable weight: 50 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712-CH 12 SWISS frames radial cage
Item no. XXX 3 grids
Item no. 5003840 4 frames tangential cage 38 x 46cm
Acrylic glass lid half on request
5037051
CFM-Radial honey extractor 9-shallow combs, 110 W motor drive
Suitable for:
• 9 shallow frames (side bar up to 16 cm and side bar width 40 mm)
• frame sizes: Dadant, Zander shallow, DN shallow, Langstroth shallow
Technical details:
• top drive with safety device
• motor 110 W / 230 V
• hinged acrylic glass lid halfs
• tank inner-Ø 50 cm
• grids available to insert into cage
• stainless steel and food grade acrylic glass
• total height 116 cm
Weight: 23 kg
Chargeable weight: 38 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20g
Item no. 23045001 Sealant for bottom bearing
Acrylic glass lid half on request
5037061
CFM-Acrylic glass radial extractor Ø 50 cm, 9 shallow frames with "Whispering Witch"
* Our innovation for 2020 *
This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier?
Suitable for:
• 9 shallow frames up to 16 cm sidebar length and 40 mm width
• Frame dimensions: Dadant, Zander shallow, DN shallow, Langstroth shallow
Technical data:
• Direct drive with safety switch
• Motor power 40 W / 230 V
• Very quiet drive, even at full speed
• Infinitely variable speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 50 cm
• Material: Stainless steel (cage) / food safe acrylic glass (tank)
• Total height 116 cm
• Distance from the floor to the bottom edge of the tank 38 cm
Weight: 23 kg
Packaging: Cardboard box
Chargeable weight: 38 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20g
Item no. 23045001 Sealant for bottom bearing
Item no. 5037033 3 grids made of stainless steel
Acrylic glass lid half on request
9.34
%
Z5272012
II. Choice CFM-Radial extractor Ø 72cm, 12 deep with "Whispering Witch"
*** Special price II. Choice - works properly ***
This extractor is equipped with our new CFM "Whispering Witch" (direct drive). Why whispering witch? Because this drive is amazingly quiet even at full speed
In addition to the wonderful quietness of the drive, the comfortable operation is also a major advantage. You have everything under control with one knob - can it be easier?
The extractor has a honey tap and practical handles at the tank.
Suitable for:
• 12 deep frames
• Frame sizes: Zander, German Standard, Langstroth, Dadant super
Technical details:
• Direct drive with safety device
• Motor 40 W / 230 V
• Very quiet drive even at full speed
• Infinitely variable speed control 80 - 350 rpm
• Hinged acrylic glass lid halfs
• Inner tank Ø 72 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 deep frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 120 cm
• Distance from the floor to the honey tap: 38 cm
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: Wooden pallet
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300059 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Acrylic glass lid half on request
