Fittings and valves

Here you can find various fittings, valves and other spare parts for our products.

You are unsure which fitting or valves fits? Contact us, we will gladly assist you and find the right product together!

Phone: 0049 9776 / 8115-0 or write us an e-mail: info@carl-fritz.de

6000093

Spiral hose Ø 40 mm (price per m)

Food-safe PVC suction and pressure hose with hard PVC spiral. Dimensions: inner Ø 40 mm Colour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine. Operating temperature: – 5 °C to + 60 °C

€17.50*

6200099

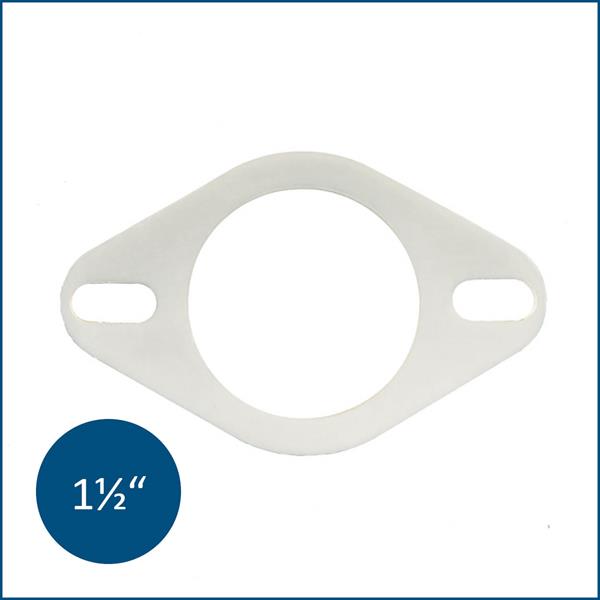

Silicon gasket with elongated holes for honey tap flange 1 1/2

€5.20*

29060017

Spiral hose Ø 38 mm (price per m)

Food-safe PVC suction and pressure hose with hard PVC spiral. Dimensions: inner Ø 38 mm Colour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine. Operating temperature: – 5 °C to + 60 °C

€15.10*

49000109

Half hose coupling DN40 / tube nozzle 38 mm

Half hose coupling mad of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 38 mm. For connecting hoses to disc valves.

€71.70*

49000039

Half hose coupling DN40 / tube nozzle 40 mm

Half hose coupling made of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 40 mm. For connecting hoses to disc valves.

€65.50*

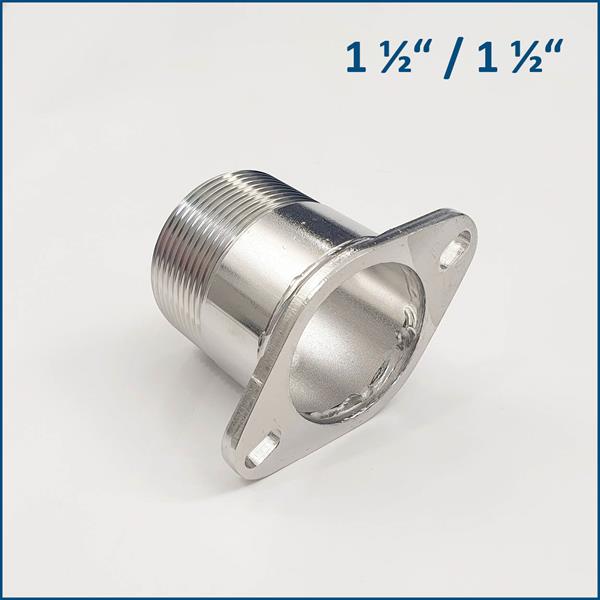

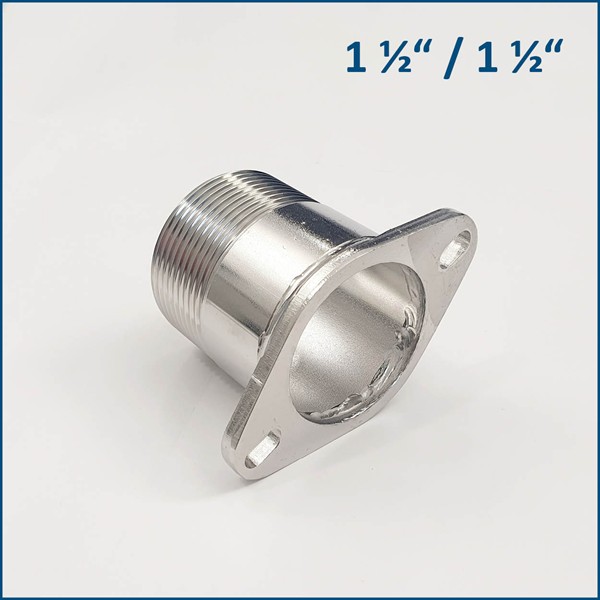

5200099

Honey tap adapter made of 1 1/2" honey tap flange and 1 1/2" male thread

Honey tap flange for 1 1/2" honey tap with 1 1/2" male thread. Can be connected to all CFM honey tanks (25 kg - 100 kg) starting production year 2021. Long holes offer a distance of 62,5 - 88 mm. Note: Please also order the silicon seal (item no. 6200099)

€37.50*

5009079

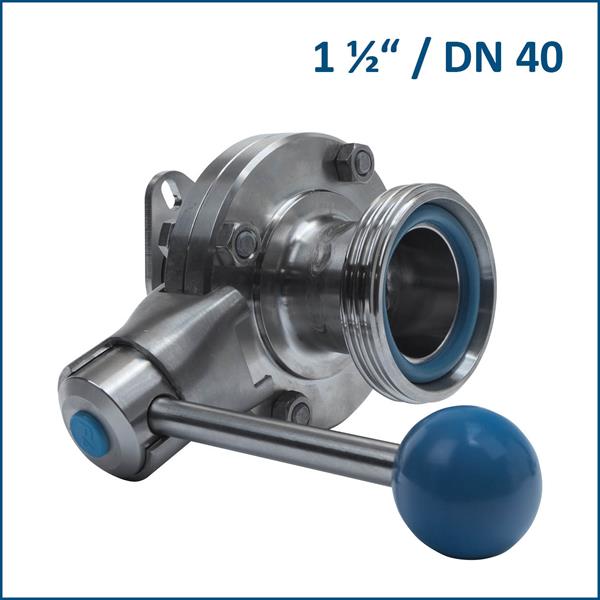

Disc valve DN40 with 1 1/2" honey tap flange incl. silicon seal

Tank side: 1 1/2" honey tap flange incl. silicon seal Tap side: Dairy thread DN 40 Material: Stainless steel

€226.80*

6000095

Spiral hose Ø 50 mm (price per m)

Food-safe PVC suction and pressure hose with hard PVC spiral. Dimensions: inner Ø 50 mm Colour: LUISANA yellow (may vary slightly) Ideal for honey pump/filling machine. Operating temperature: – 5 °C to + 60 °C

€18.00*

49000040

Half hose coupling DN50 / tube nozzle 50 mm

Half hose coupling mad of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 50 mm. For connecting hoses to disc valves.

€88.30*

49000108

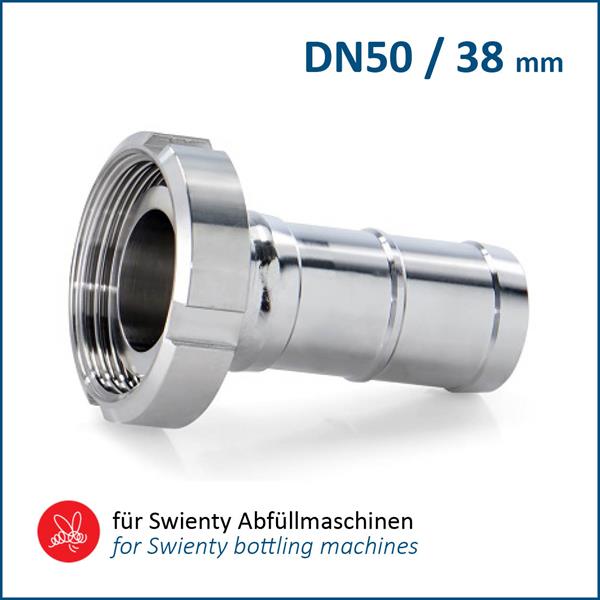

Half hose coupling DN50 / tube nozzle 38 mm

Half hose coupling made of stainless steel with cone connecting piece DN38 and locking nut DN 50 for hose-Ø 38 mm. For connecting hoses to disc valves. Especially suitable when you want to connect our CFM honey creamer with a hose Ø 38mm to a Swienty bottling machine.

€95.00*

49000017

Half hose coupling DN50 / tube nozzle 40 mm

Half hose coupling made of stainless steel with cone connecting piece DN 50 and locking nut DN 50 for hose-Ø 40 mm. For connecting hoses to disc valves.

€89.50*

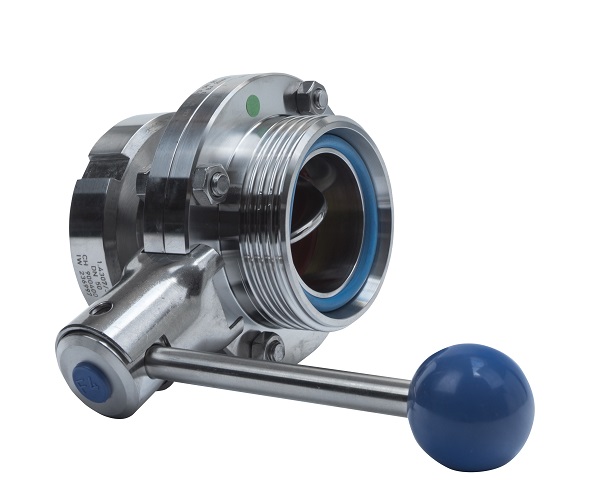

20810037

Disc valve DN50 with connection piece/union nut and male thread

Tank side: liner for milk thread socket with connecting nut Outfall side. Milk thread socket incl. seal

€175.40*

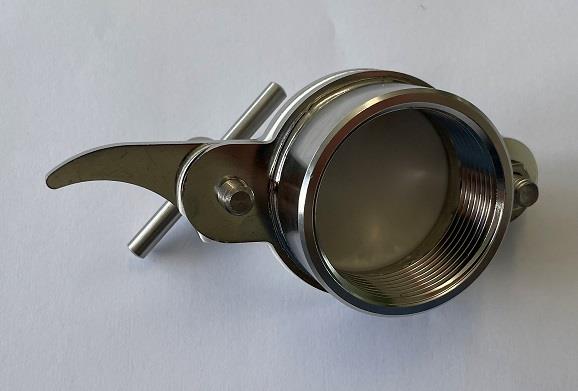

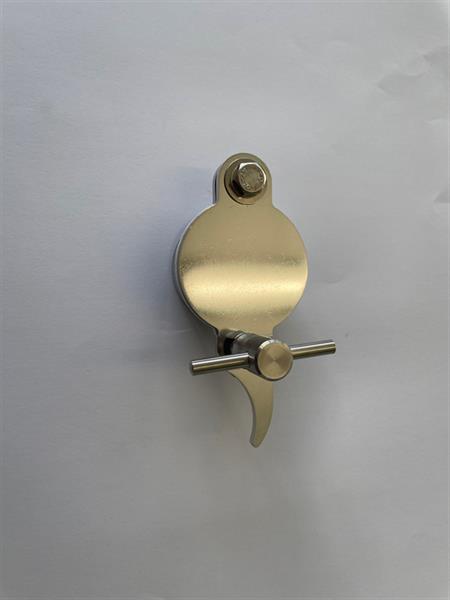

CFM-Honey tap 1 1/2" stainless steel with seal and 1 1/2" female thread

5000079-IG

CFM-Honey tap 1 1/2" stainless steel with seal and 1 1/2" female thread

Honey valve 1 1/2" made of stainless steel with 1 1/2" female thread, honey tap top part with seal.

€64.70*

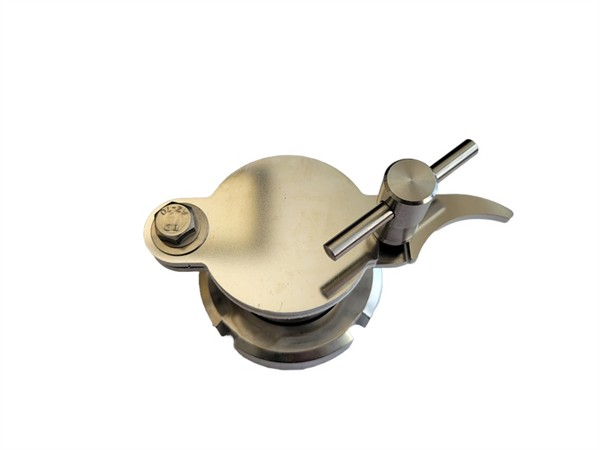

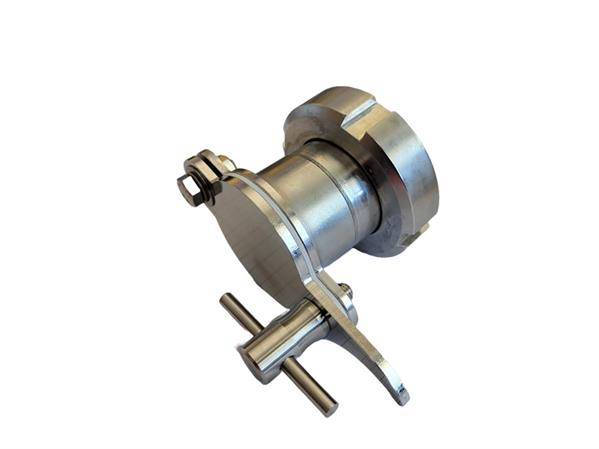

CFM-Honey valve 1 1/2", stainless steel with seal, DN40 cone socket and union nut

5000079-40

CFM-Honey valve 1 1/2", stainless steel with seal, DN40 cone socket and union nut

To screw onto a DN40 dairy thread, completely made of stainless steel.

€84.80*

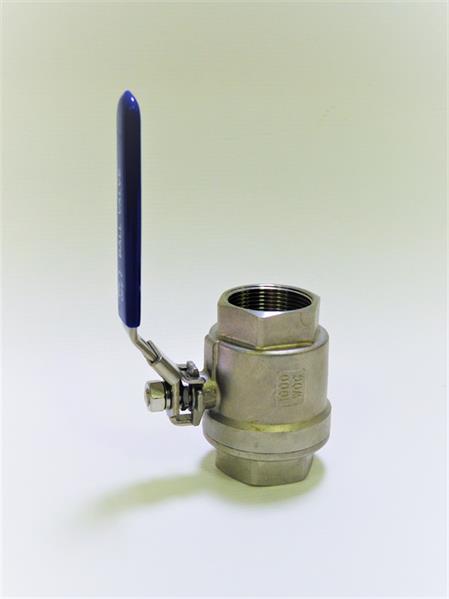

6000080

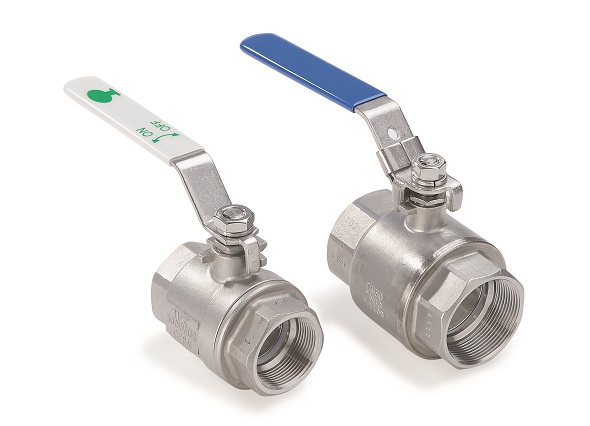

Ball valve 1 1/2"

Ball valve with 1 1/2"; female thread on both sides and full passage

€55.00*

Tip

5000096

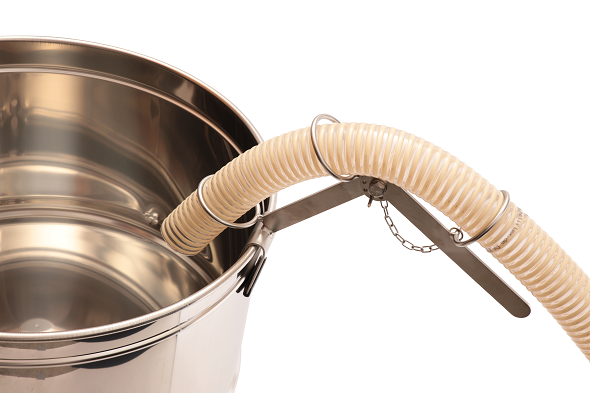

CFM-Hose support for hose Ø 40 and 50 mm, stainless steel

Very useful support to keep the hose in position. You stick the hose through the support and hang it on the rim of the tank, the hose sits very tight

€66.50*

5000079

CFM Honey valve 1 1/2"

Made of stainless steel with seal. To solder to a tank - no thread Outer Ø 40 mm, Inner Ø 36 mm Length honey valve (without T-screw): 57 mm Length honey valve (with T-screw): 82 mm

€40.90*

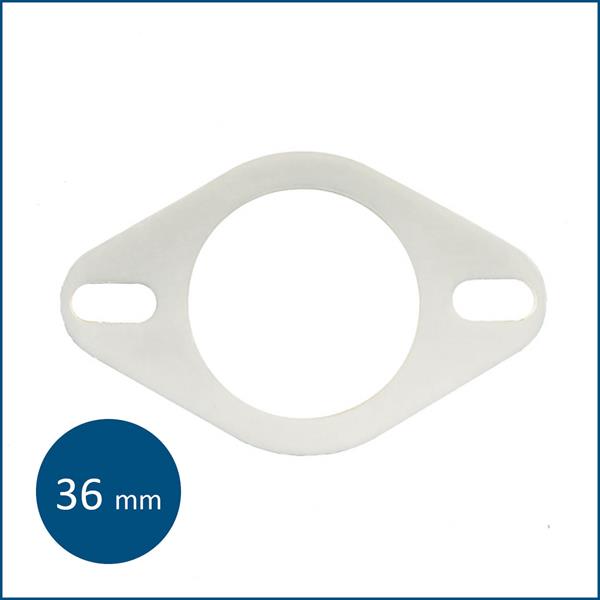

6000099

Silicon gasket with elongated holes, food safe, for item no. 5000098

€4.90*

5400098

Hose connection with 1 1/2" honey tap flange for hose 38 mm

*For honey tanks from year 2021 onwards* Hose adapter with flange for honey tap with 1 1/2" (for hose Ø approx. 38 mm), long holes offer a distance of 62,5 - 88 mm. Including wire hose clamp. NOTE: Please order the matching silicone seal (item no. 6200099)!

€59.50*

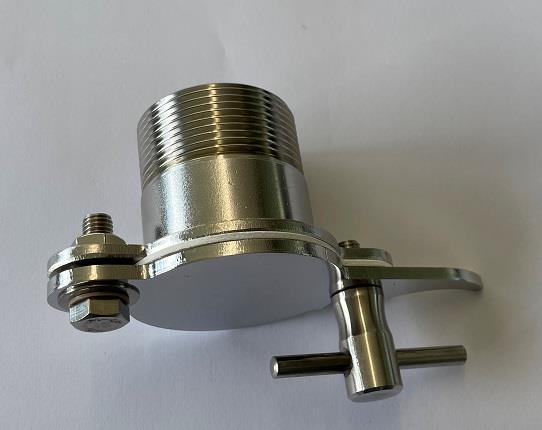

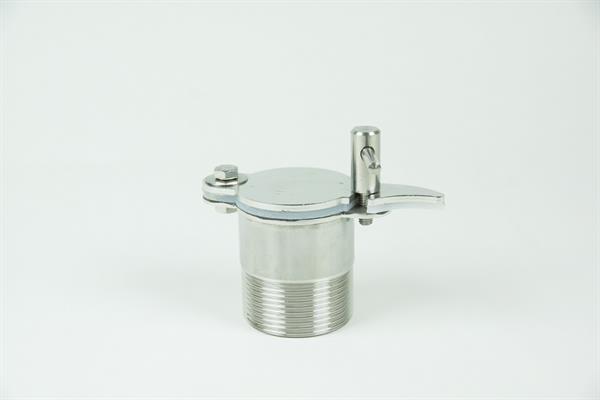

CFM-Honey tap 1 1/2" made of stainless steel with sealing and 1 1/2" male thread

5000079-AG

CFM-Honey tap 1 1/2" made of stainless steel with sealing and 1 1/2" male thread

€57.30*

49000015

Half hose coupling with 90° arc DN50 / tube nozzle 50 mm

Half hose coupling made of stainless steel with cone socket connecting piece DN 50, locking nut DN 50 and 90° pipe for hose-Ø 50 mm. For connecting hoses to disc valves.

€109.40*

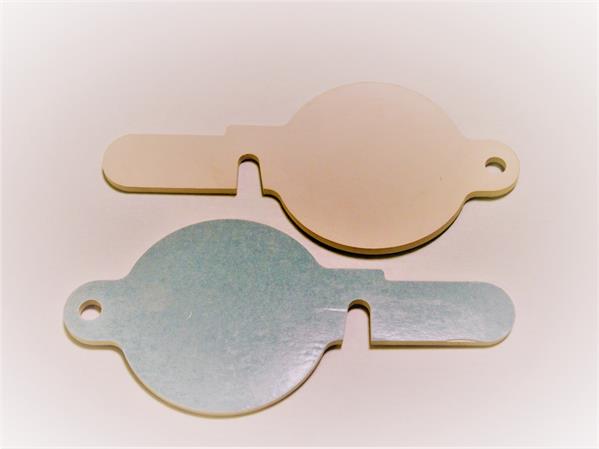

6000092

Plastic seal for CFM-honey valve no. 5000089

€5.90*

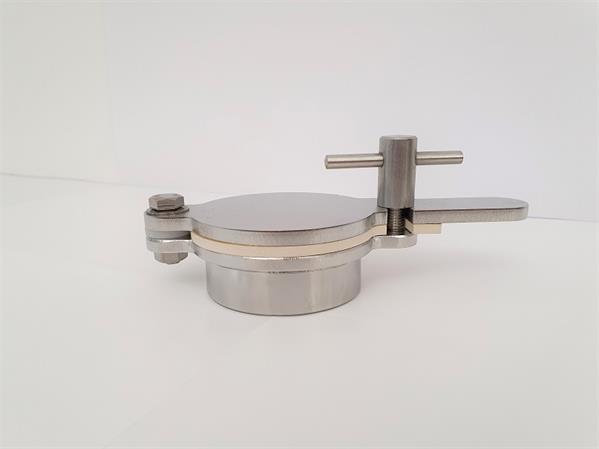

5000086

CFM-Valve 2", stainless steel with seal and 2" female thread

Made of stainless steel with seal and 2“ internal thread.

€62.40*

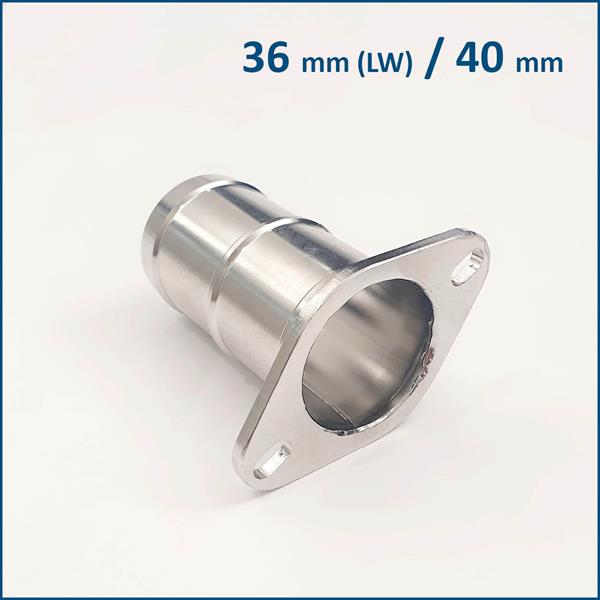

5000098

Hose connection with flange 36mm | 40mm

Hose adapter with flange for honey tap with 36 mm clear with (for hose Ø approx. 40 mm), long holes offer a distance of 53 - 75 mm. Including wire hose clamp. NOTE: Please order the matching silicone seal (item no. 6000099)!

€43.40*

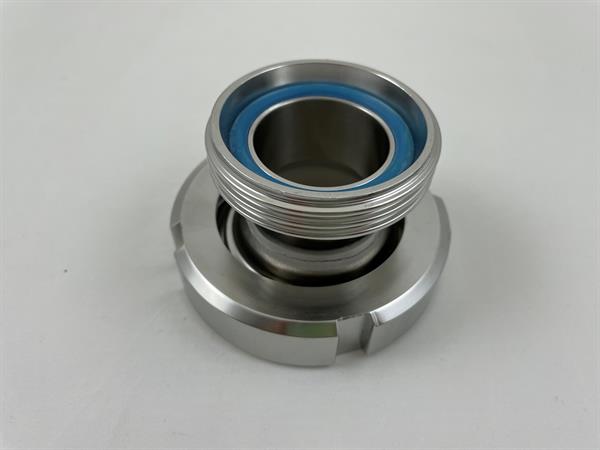

49000140

Reducer DN50 to DN40

Reducer DN50 to DN40: DN50 fitting with coupling ring to DN40 Dairy thread incl. seal

€126.00*

5200098

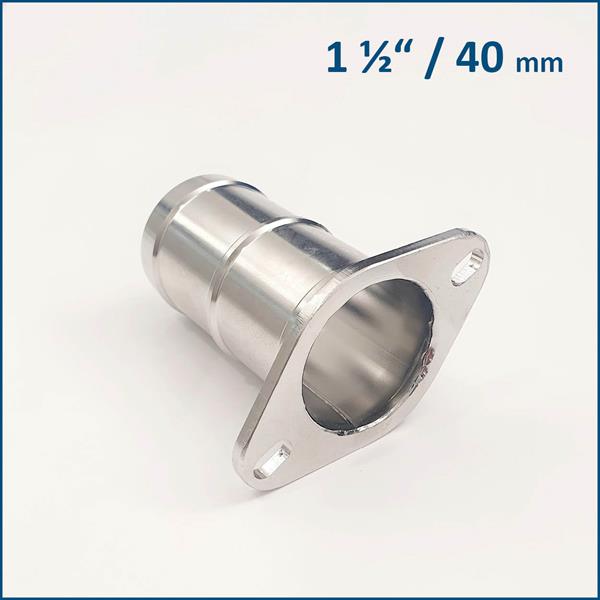

Hose connection with flange 1 1/2" | 40mm

*For honey tanks from year 2021 onwards* Hose adapter with flange for honey tap with 1 1/2" (for hose Ø approx. 40 mm), long holes offer a distance of 62,5 - 88 mm. Including wire hose clamp. NOTE: Please order the matching silicone seal (item no. 6200099)!

€47.00*

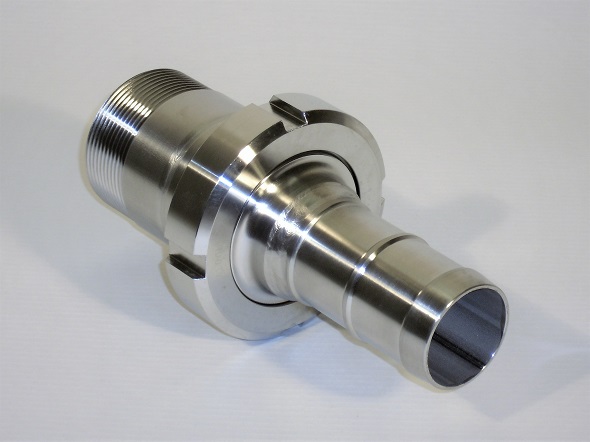

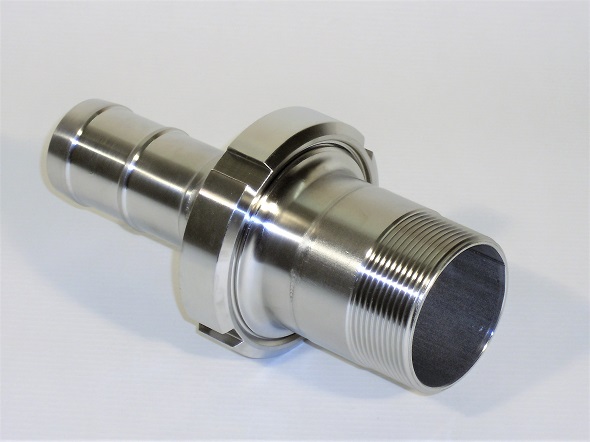

Hose coupling 2" external thread / DN 50 dairy thread / DN 40 hose nozzle

5309095

Hose coupling 2" external thread / DN 50 dairy thread / DN 40 hose nozzle

Stainless steel hose coupling with 2" external thread, DN 50 dairy thread and DN 40 hose nozzle. On request also available with internal thread or other threaded connections.

€133.50*

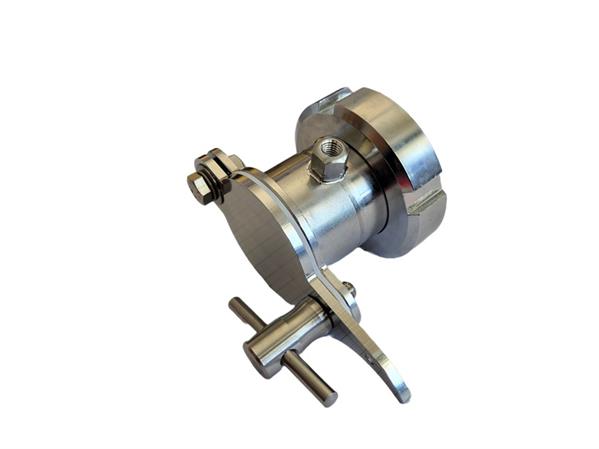

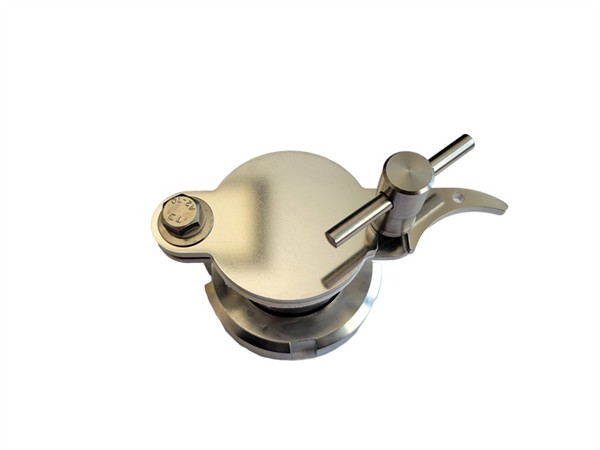

CFM-Honey tap 1 1/2", with seal, with DN40 cone socket and connecting nut, set up for mounting honey bottling set

5000079-10

CFM-Honey tap 1 1/2", with seal, with DN40 cone socket and connecting nut, set up for mounting honey bottling set

CFM-Honey tap 1 1/2" including seal, with DN40 cone socket and connecting nut. To screw onto a DN40 dairy thread. Made of stainless steel.

€89.50*

5000099

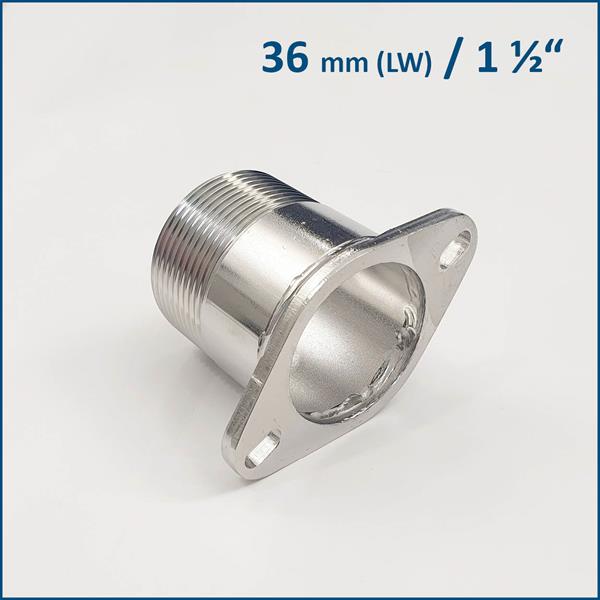

Honey tap adapter for older tap with inner width 36mm / 1 1/2" male thread

Flansch for honey tap with inner width 36 mm. Long holes offer a distance of 53 - 75 mm. With 1 1/2" male thread, made of stainless steel NOTE: Please order the matching silicone seal (item no. 6000099)!

€33.20*

5000082

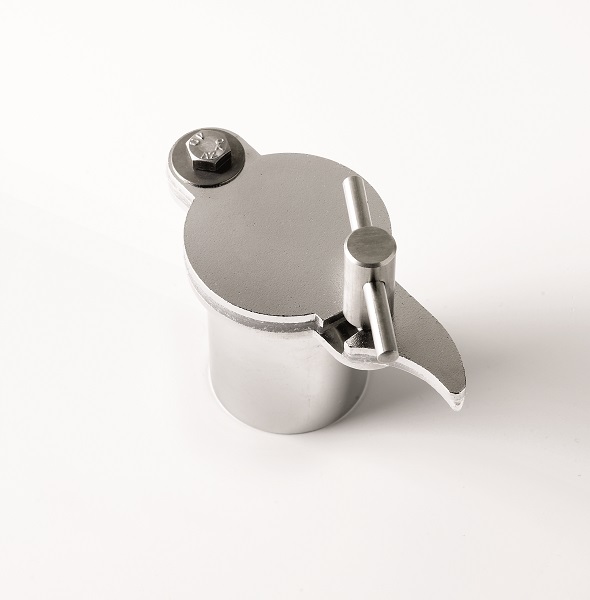

CFM-Honey valve (36 mm clear width)

Made of stainless steel with seal Valve to solder – due to that without screw thread Outside-Ø 40 mm. inside -Ø 36 mm Length valve (without T-screw): 57 mm Length valve (with T-screw): 82 mm

€38.60*

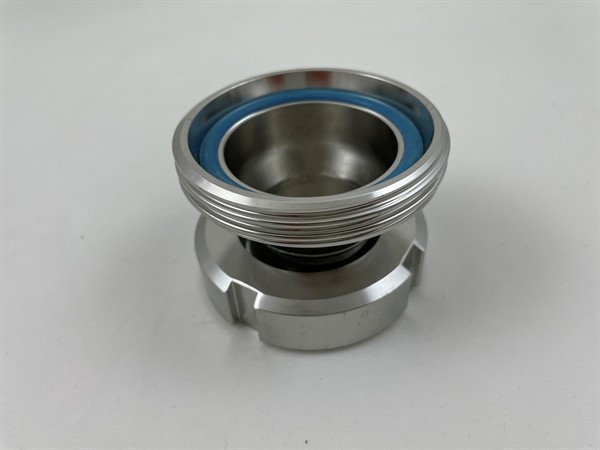

49000139

Adapter DN40 to DN 50

Adapter DN40 to DN 50: DN40 fitting with coupling ring to DN50 Dairy thread incl. seal

€122.00*

49000046

Half hose coupling with 90° arc DN50 / tube nozzle 40 mm

Half hose coupling made of stainless steel with cone socket DN 50, union nut DN 50 and 90° pipe with reduction cone socket and tube nozzle for hose Ø 40 mm. For connecting hoses to disc valves.

€103.00*

6000097

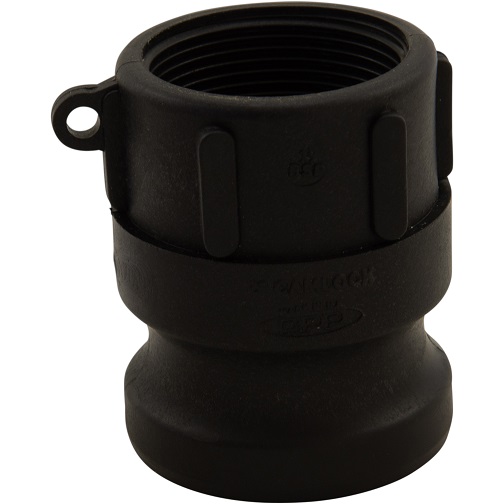

PP Quick coupling 1 1/2" female thread (BSP)

Accessory for mini honey pump, part no. 6001980

€12.50*

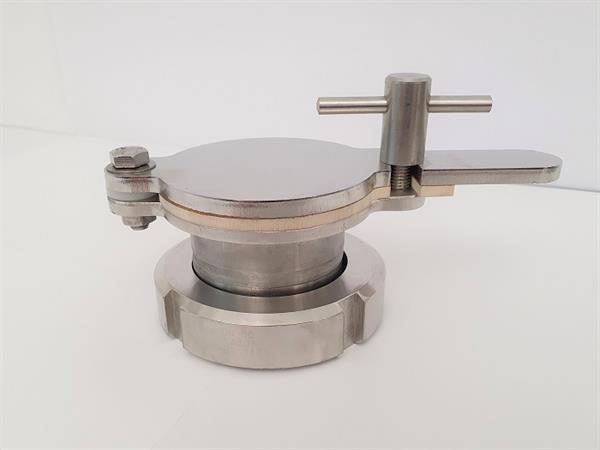

5000086-50

CFM-Honey valve 2" with DN50 cone socket and union nut

CFM-Honey valve 2", stainless steel with seal, DN50 cone socket and union nut. To screw onto a DN 50 dairy thread.

€93.50*

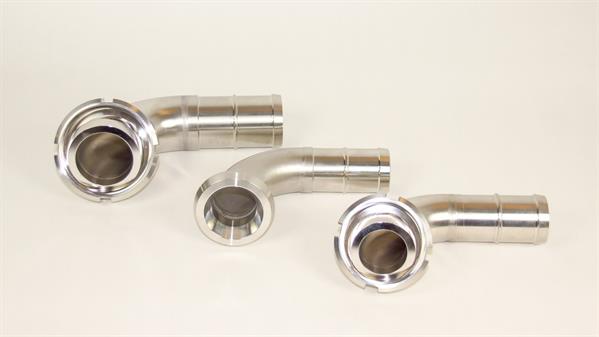

49000052

Half hose coupling with 90° arc DN40 / tube nozzle 40 mm

Half hose coupling made of stainless steel with cone socket connecting piece DN 40, locking nut DN 50 and 90° pipe for hose-Ø 40 mm. For connecting hoses to disc valves.

€96.00*

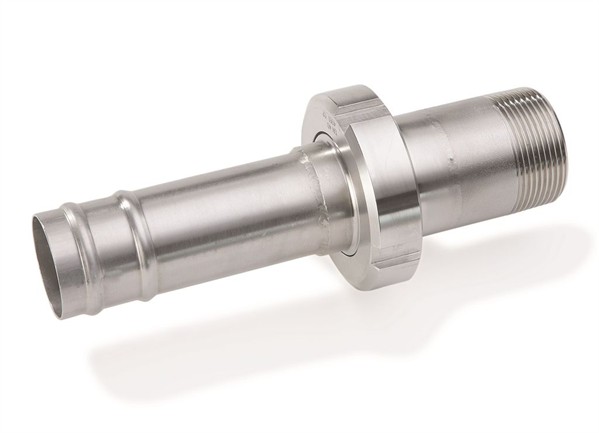

5309092

Hose coupling 1 1/2" external thread / DN 40 hose nozzle

Stainless steel hose coupling with 1 1/2" external thread and DN 40 hose nozzle. On request also available with internal thread or other threaded connections.

€106.00*

5009083

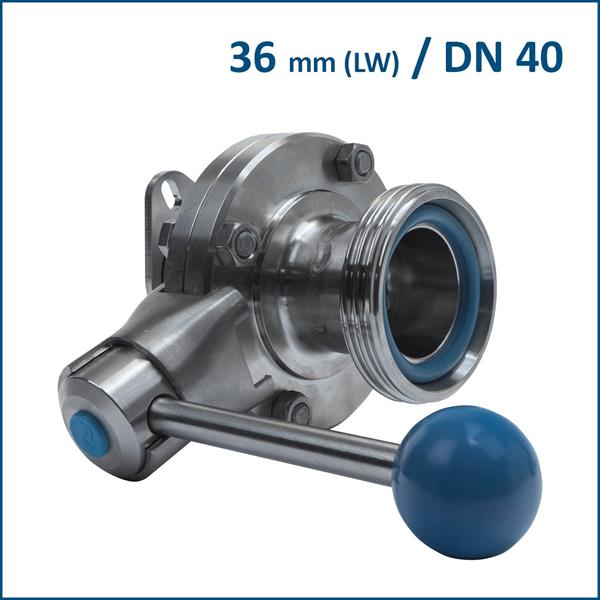

Disc valve with DN 40 honey valve flansch

Tank side: honey tap flange incl. gasket Outlet side: Dairy thread DN 40 Material: Stainless steel

€217.00*

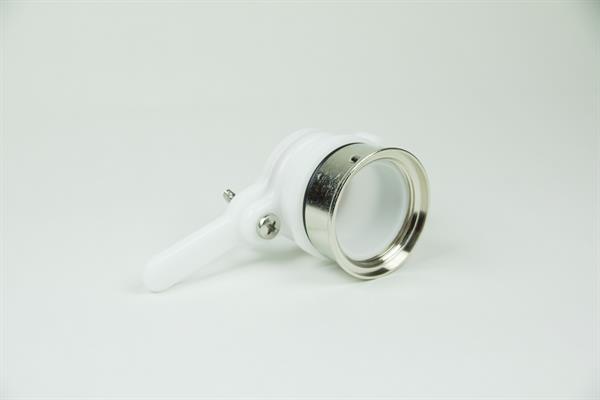

6000085

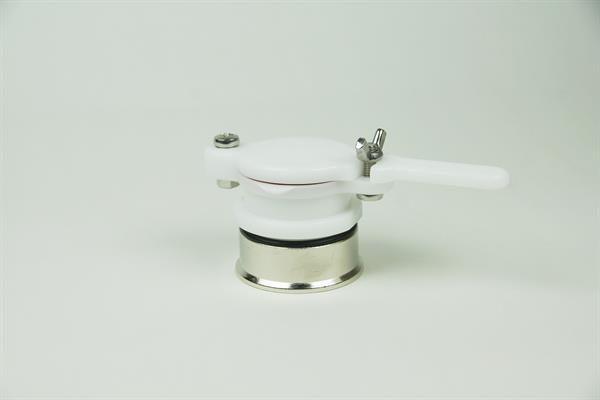

Plastic honey valve 1 1/2"

Honey valve made of plastic 1 1/2"; with chrome-plated lock nut and two seals. Best suited for screwing into plastic containers, clear width 40 mm.

€22.90*

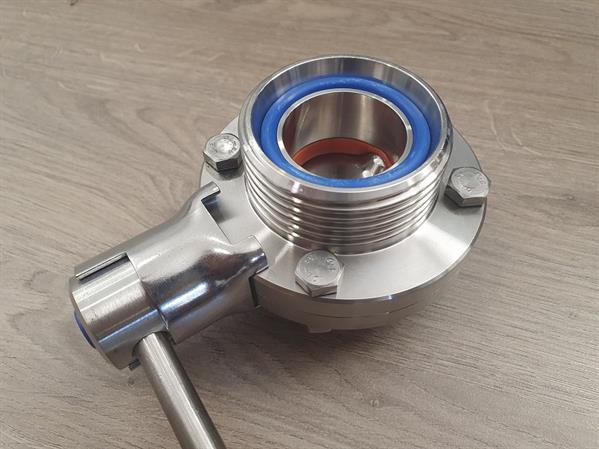

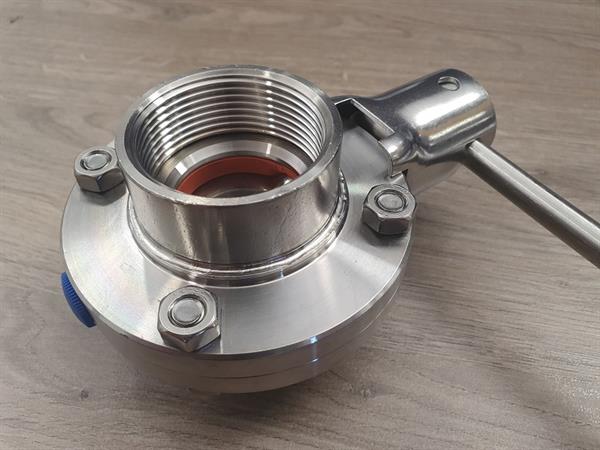

Flap valve DN 40 with 1 1/2" female thread and DN 40 male thread

20810042

Flap valve DN 40 with 1 1/2" female thread and DN 40 male thread

Tank side: 1 1/2" female tread Tap side: DN 40 dairy thread with seal

€184.00*

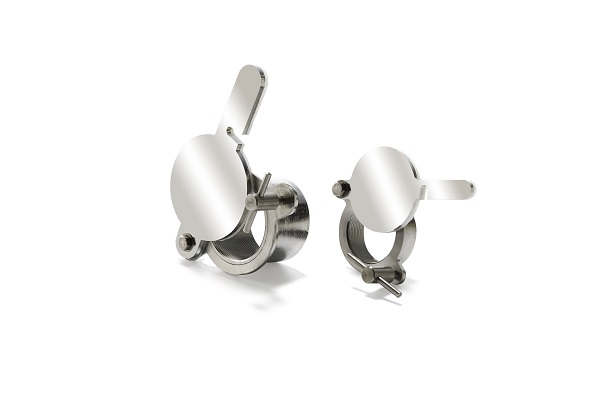

5000089

"CFM-Valve 2 1/2"", stainless steel with seal and 2 1/2"" female thread"

Made of stainless steel with seal and 2 ½“ internal thread.

€110.60*

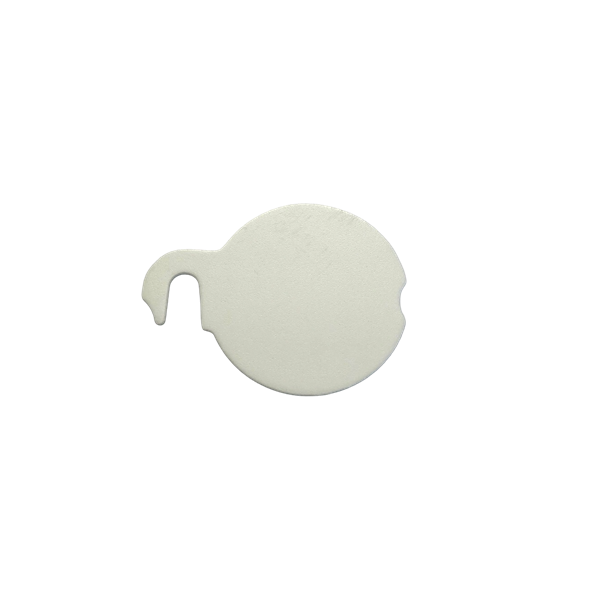

6000078

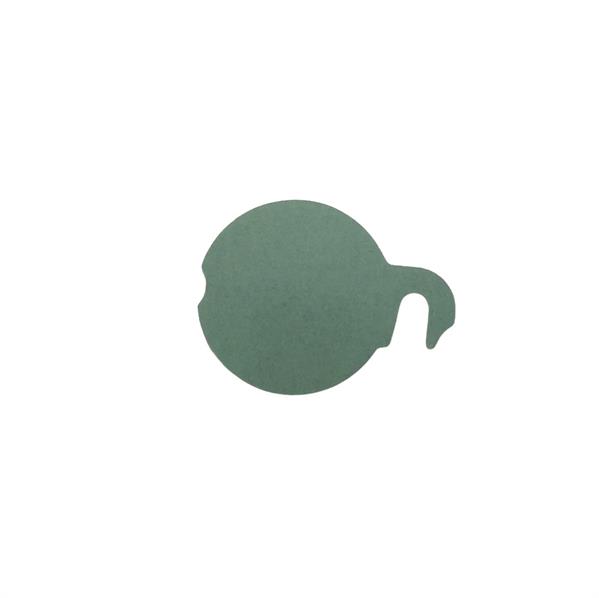

Seal for honey valve with clear width 44 mm (1 1/2")

2 mm seal for honey valve with clear width 44 mm (1 1/2"). Made of food safe plastic. One sticky side to be glued onto the valve metal piece.

€5.30*

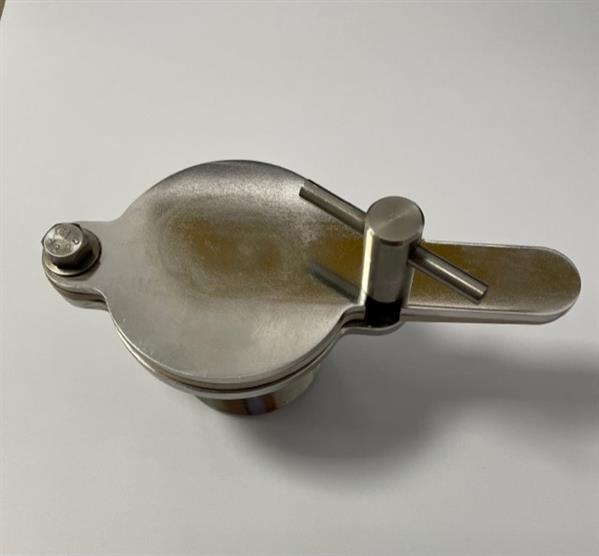

5000086-AG

CFM-Valve 2", stainless steel with seal and 2" male thread

€60.50*

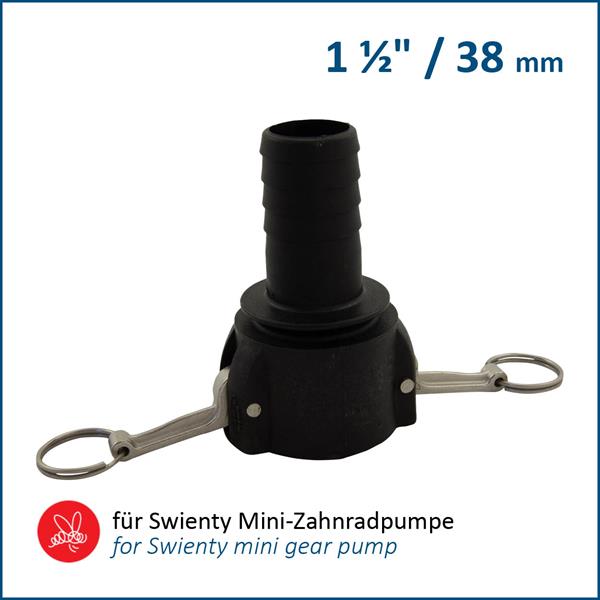

6000096

PP Quick hose coupling 1 1/2" with spout for DN 38 hose

Accessory for mini honey pump, part no. 6001980

€48.00*

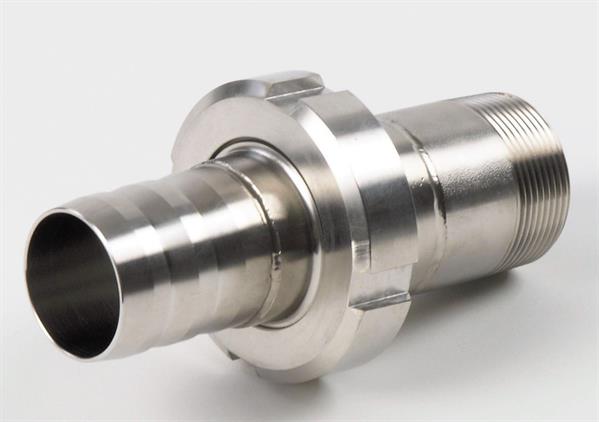

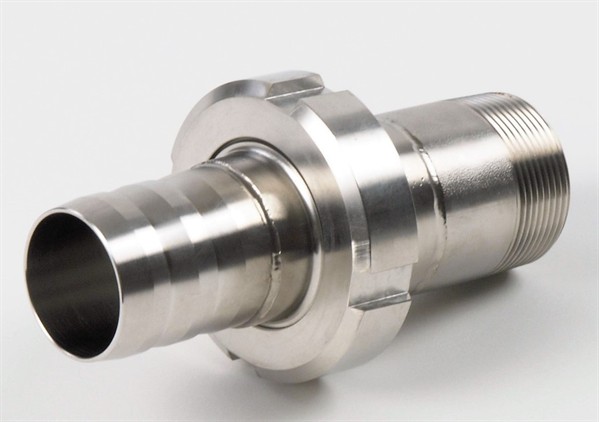

5309094

Hose coupling DN 50 x 2" male thread, stainless steel

Stainless steel hose coupling with 2" external thread and DN 50 hose nozzle. On request also available with internal thread or other threaded connections.

€126.50*

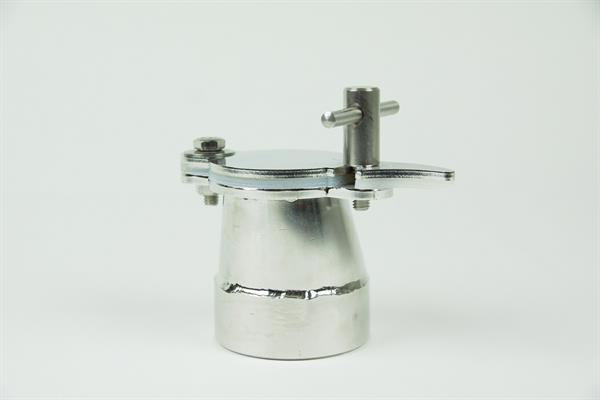

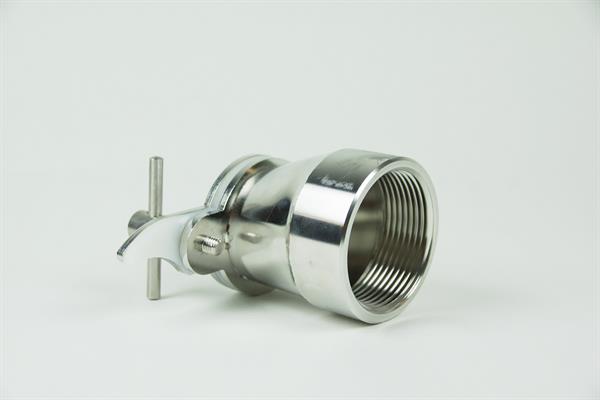

CFM Honey valve stainless steel with seal and 1 1/2" female thread

5000082-IG

CFM Honey valve stainless steel with seal and 1 1/2" female thread

Made of stainless steel with seal.

€66.00*

6000081

Ball valve 2"

Ball valve with 2" female thread on both sides and full bore, Stainless steel

€78.00*

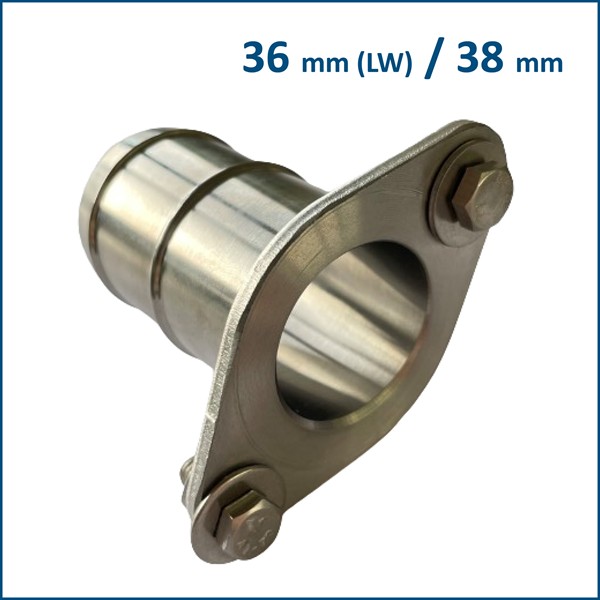

49000110

Hose connection with flange 36 mm (LW) / 38 mm

Hose adapter with flange for honey tap with 36 mm clear with (for hose Ø approx. 38 mm), long holes offer a distance of 53 - 75 mm. Including wire hose clamp. NOTE: Please order the matching silicone seal (item no. 6000099)!

€71.40*

20810041

Disc valve DN50 with 1 1/2" female thread and DN50 dairy thread

Disc valve DN 50 • Tank side: 1 1/2" female thread • Tap side: DN 50 dairy thread incl. seal

€178.50*

5009081

Flap valve DN50 stainless steel, customized

also available with female thread or other threaded connections

€224.00*

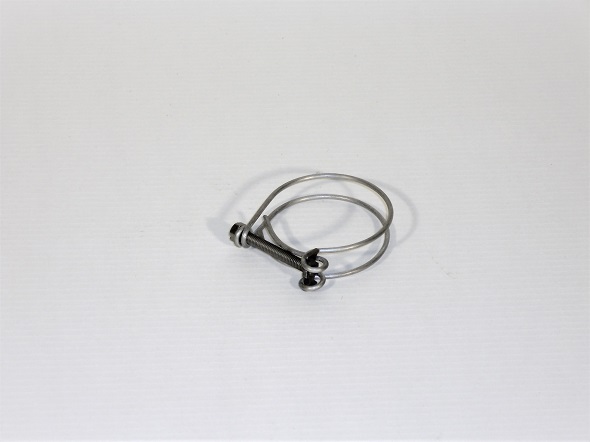

21710037

Wire hose clamp Ø 45-50 mm

Wire hose clamp Ø 45-50 mm, stainless steel V4A.

€8.65*
