Product number:
6099202
Product information
DANA api MATIC 1000 is a modern filling machine.
The machine consists of a newly constructed gear pump unit made of food grade plastic material and Swienty dosing electronics to contol the pump. The latest dosing electronics ensure powerful filling and a perfect drip-free function. The filling weight is digitally displayed and can be set for amounts from 10 grams to 10 kilos or 0.1 to 100oz.
Up to 20 different standard filling programs can be stored containing the weight, the calibration factor and other filling parameters. The electronics count the number of fillings during the filling cycle and also in total during machine life time.Further the total quantity (kg or oz) can be displayed. In pumping mode the pump quantity will be displayed.
The machine operates with great precision (up to +/-1g / 0.1oz) and can easily be calibrated to suit different types of liquids. This precision avoids an overfilling and pays for the machine in a very short time.
As a pump, the machine can operate equally well in both directions. The speed can be selected directely from the front panel.
The machine is able to fill nearly all kinds of viscous liquids.
All parts that come in contact with the liquid to be filled are constructed of either stainless steel or food grade plastic and can easily be taken apart (without tools) and cleaned.
Technical data:
• Type of machine: Computer controlled gear pump
• Filling range: from 20g/oz/ml
• Pump capacity: Approx. 300 kg/h (honey warm)
• Filling capacity: Approx. 200 kg/h
• Precision: +/- 1%
• Power: 100-260V/50-60Hz
• Powerconsumption: 230V
• Weight: Approx. 16,5 kg
Chargeable weight: 15,2 kg
• Dimensions: 22 x 31.5 x 18 cm
• Connections: 1 1/2"BS - 1 1/2" hose
• Max Temperatur der Flüssigkeit: 60-65 C°
Parts included in the delivery:
Nozzle 1½" 90° with connecting nut BS, 1.5m tube 1 1½, foot paddle, rubber closer with connecting nut complete, dosing syringe
Accessories not included (to be ordered separately):
Various nozzles and fittings, various filling nozzles, table or floor stand, various tanks, various creamers in different sizes, conical feed hopper 10 litre
Login
accessories
5900202
Support for creamer 100 kg together with filling machine Dana api Matic 1000
• Stainless steel, height 100 cm
• Suitable for No. 5022100 with filling machine No. 6099202
• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process
• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.
• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.
• Combination for making bottling honey easier.
• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)
Please note: Delivery without creamer and filling machine.
6099204
Holder and Switch for bottling machine DAM 1000
A great help, when you fill honey in jars.
As soon as you hold the jar against the switch, the bottling machine starts the filling.
This way you can start the bottling machine without activating "start" on the display or using the foot pedal.
5900202-DW
CFM-Support for 100 kg double walled creamer together with filling machine Dana api Matic 1000
• Stainless steel, height 100 cm
• Suitable for No. 5822100 with filling machine No. 6099202
• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process
• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the filling machine.
• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.
• With connection piece DN40
Delivery without filling machine!
6099202-E4

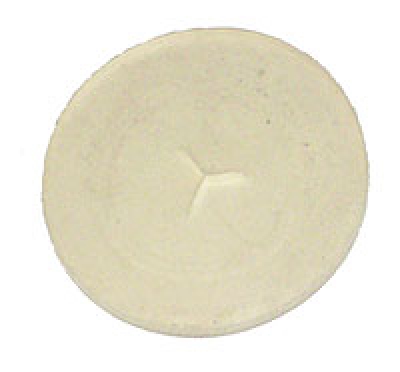

Dana api Matic 1000 silicon shutter
Ensures that the honey does run back into the hose.
Please remember that you also order the return disc, item no. 6099202-E12.
5999222
Funnel 20 litre incl. welding socket and nut BS 1.5"
This funnel is suitable for the filling machine DANA api MATIC 2000+ (No. 6000202). It is especially suitable if you do not want to connect the machine to a tank or the like via hoses. You can easily tilt the honey into the funnel and operate the filling machine. Capacity max. 20 Ltr. Incl. screw connection for connection to the filling machine.
