Product number:
5203818

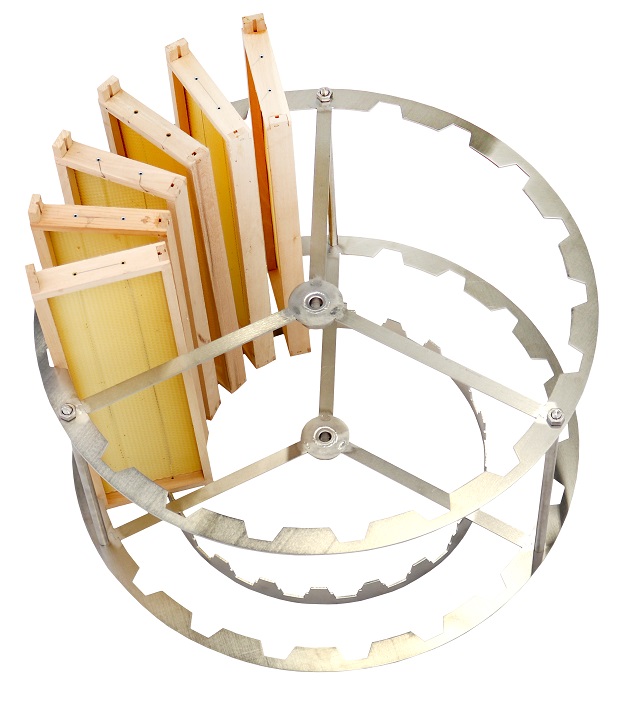

Product information
Made of stainless steel, for inner tank Ø 63 cm.
Shaft length 535 mm, Shaft Ø 14 mm (included)
In this radial cage fit shallow frames up to
• sidebar length 16.5 cm
• sidebar width 42 mm
Login
accessories
5163018

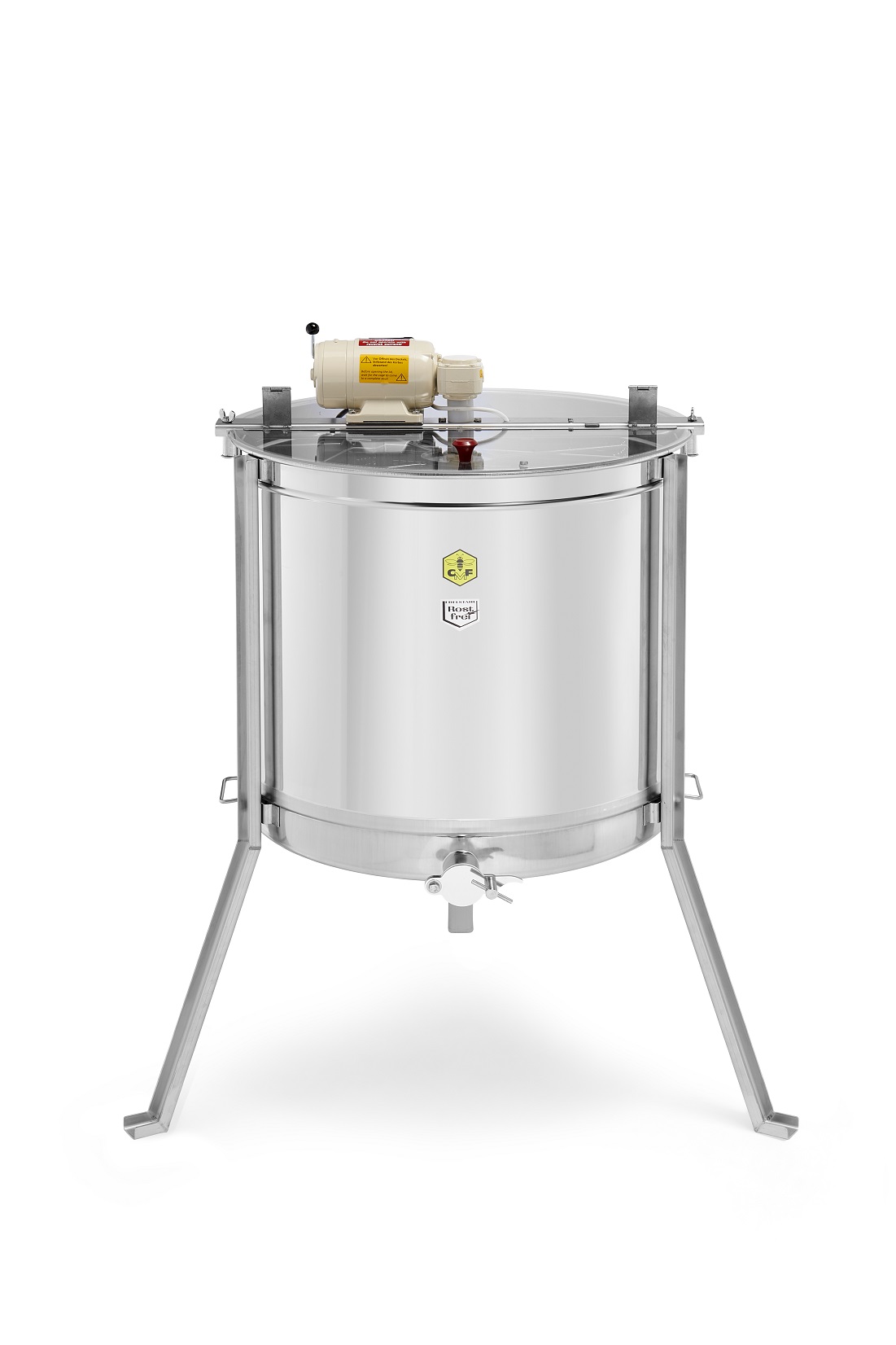

CFM-Radial extractor Ø 63cm, 18 shallow frames, with "Extractor Witch"
The basic model of our radial extractors with motor. The extractor has a honey tap and practical handles at the tank.
For cleaning just open the wing nuts at the cross-beam and take off the complete drive including the lids.
Suitable for:
• 18 shallow frames (side bar up to 16 cm and side bar width 42 mm)
• Frame sizes: Dadant super, Zander half and super, German Standard half and super, Langstroth half and super frames
Technical details:
• Top drive with safety device
• Motor 110 W / 230 V
• Hinged acrylic glass lid halfs
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 111 cm
• Distance from the floor to the honey tap: 38 cm
• Conversion into tangential extractor possible
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: approx. 50 kg / approx. 40 kg
Wrapping: cardboard box
Chargeable weight: 50 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203818 Radial cage for 18 shallow frames
Item no. 5303818 Grids to insert into the cage
Item no. 5003840 4-Frames tangential cage
Acrylic glass lid half on request
