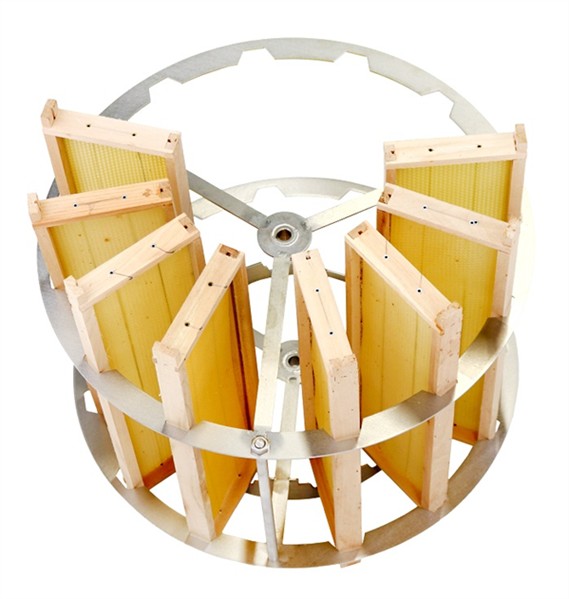

Product number:
5203712
Product information
Made of stainless steel, for inner tank Ø 55 cm.
Shaft length 535 mm, Shaft Ø 14 mm
In this radial cage fit shallow frames up to
• sidebar length 16 cm
• sidebar width 42 mm
Login
accessories
5055012
CFM-Honey extractor 12 shallow frames, radial, manual drive
The smallest of our CFM-Honey radial extractors with manual drive
Advantages are the compact design and the fact that you can run this honey extractor without electricity.
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
Technical details:
• Manual drive with hinged lid halfs
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 110 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 26 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request
5263018
CFM-Radial extractor Ø 63cm, 18 shallow frames with "Whispering Witch"
The basic model of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 18 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303818 3 grids
Item no. 5003840 4 frames tangential cage 38 x 46cm
Acrylic glass lid half on request
5255012
CFM-Radial extractor 12 shallow frames, with "Whispering Witch"
The smallest of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request
