Product number:
5014400
Product information
The allrounder of the CFM-Honey extractors with manual drive

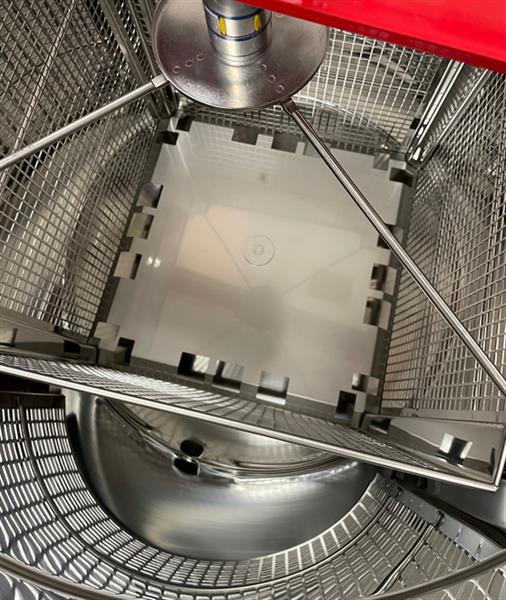

This tangential extractor is even suitable for the large frame sizes like Dadant and German Standard 1 1/2. The cage is without middle axis so you can turn the frames inside the cage.
This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep frames up to 37 cm side bar length or 8 shallow frames up to 18 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant, German Standard 1 1/2 or Swiss frames
Technical details:
• Manual drive with hinged lid halfs
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 38 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract radial with a radial cage
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 31 kg / 37 kg
Wrapping: cardboard box
Chargeable weight: 42 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003840 4 frames tangential cage
Item no. 5203815 15 shallow frames radial cage
Acrylic glass lid half on request
