Product number:
5009400
Product information

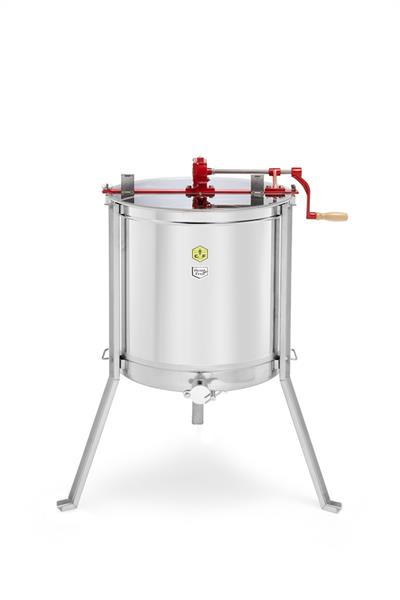

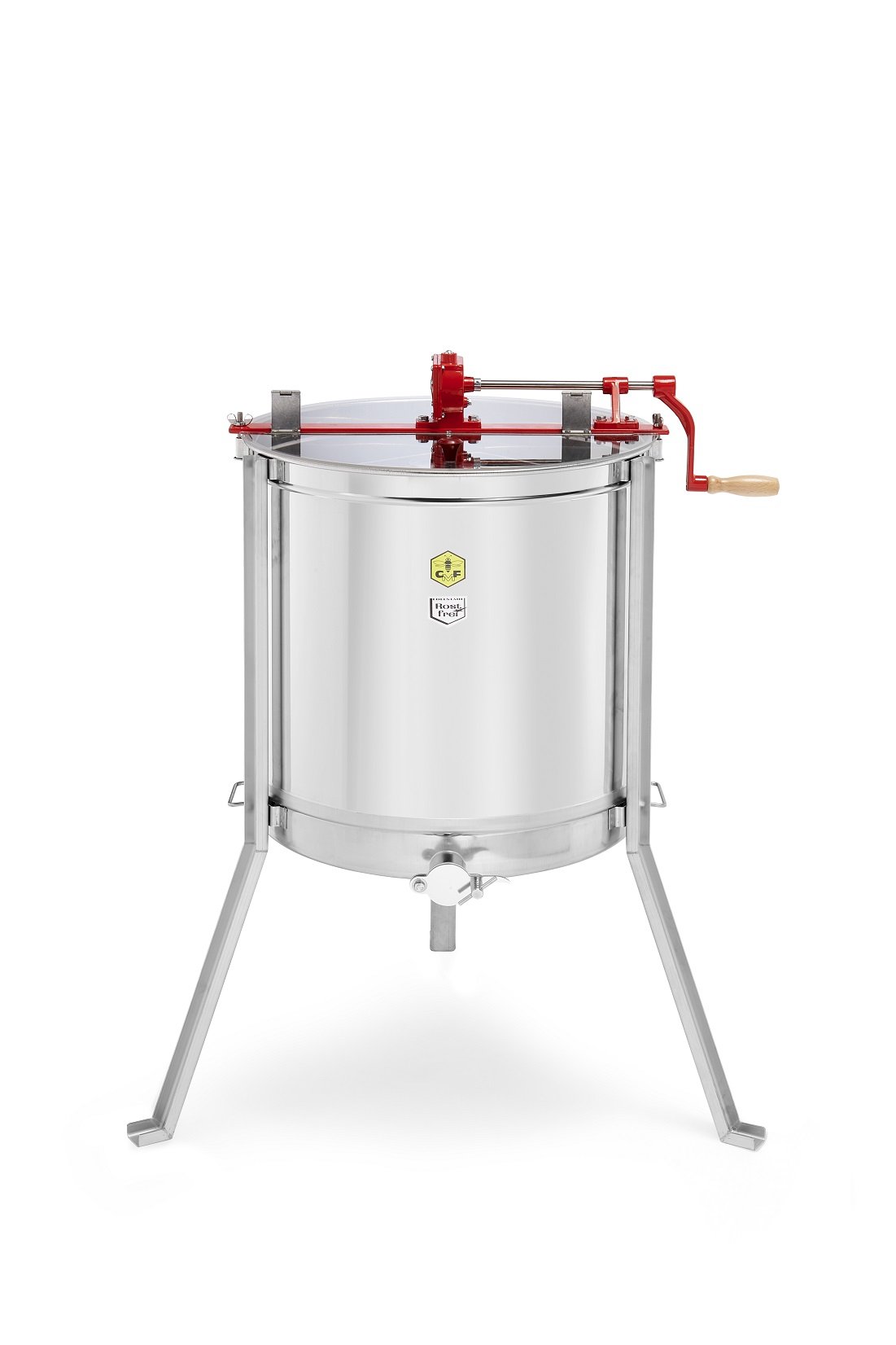

Our basic model of the CFM-Honey extractors with manual drive
Advantages are the compact design, the cage without middle axis and the fact that you can run this honey extractor without electricity.
This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep frames up to 31 cm side bar length or 8 shallow frames up to 15 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant
Technical details:
• Manual drive with hinged lid halfs
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 32 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract radial with a radial cage
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 26 kg / 32 kg
Wrapping: cardboard box
Chargeable weight: 38 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003244 4 frames tangential cage
Item no. 5003709 9 shallow frames radial cage
Acrylic glass lid half on request
