Product number:
5009471
Product information

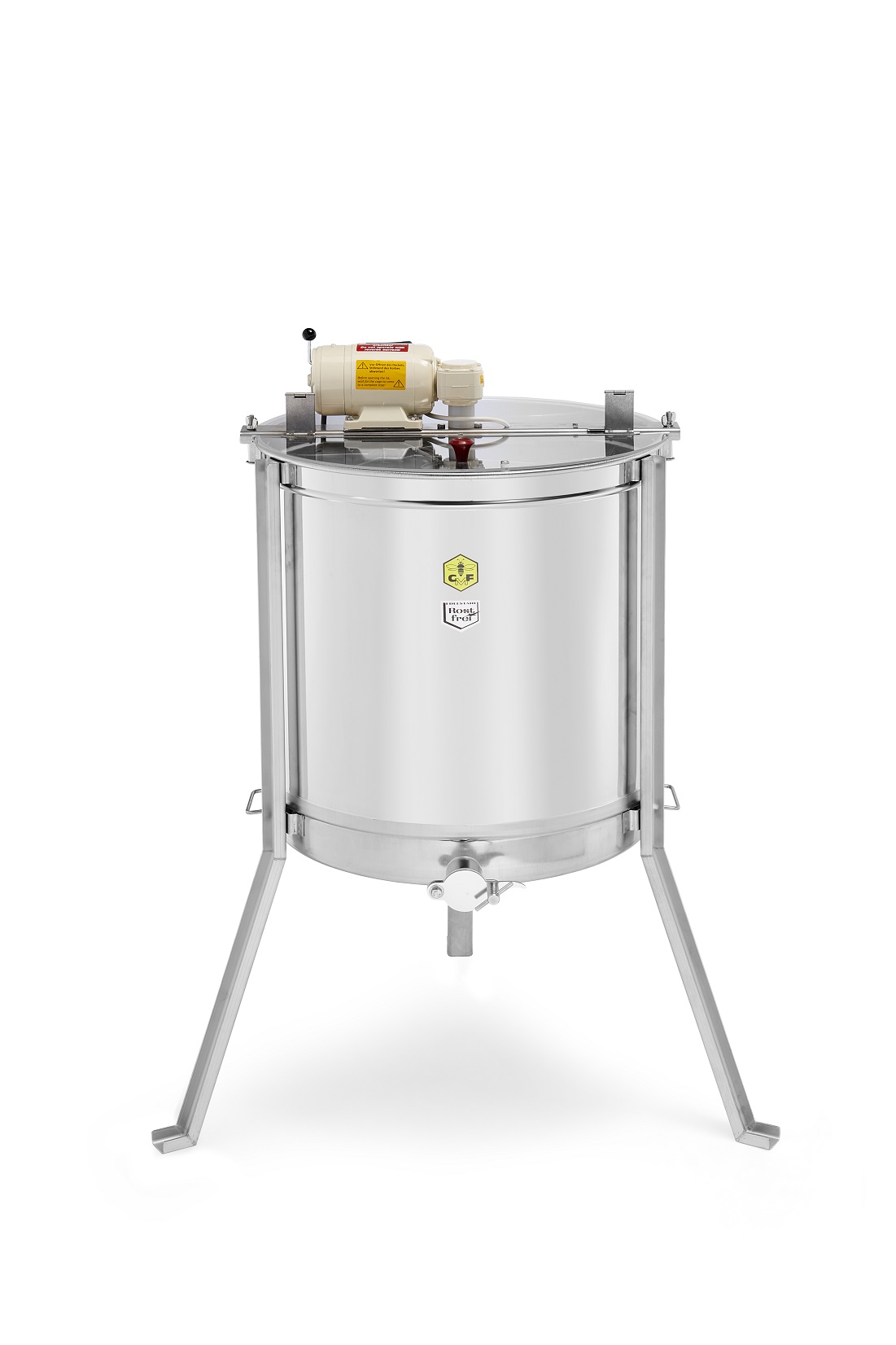

Our basic model of the CFM-Honey extractors with our "Extractor Witch".
Advantages are the compact design and the cage without middle axis.
This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 4 deep frames up to 31cm side bar length or 8 shallow frames up to 15 cm side bar length
• Frame sizes: Zander, German Standard, Langstroth, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Dadant
Technical details:
• Top drive with security switch
• Motor power 110 W / 230 V
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Grid area of the cage 32 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Material: Stainless steel
• Loading height: 100 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract radial with a radial cage
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: 29 kg / 35 kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5003244 4 frames tangential cage
Item no. 5003709 9 shallow frames radial cage
Acrylic glass lid half on request
