CFM-Tangential extractor Ø 43 cm, 4 frames with "Whispering Witch" 40W

Create review

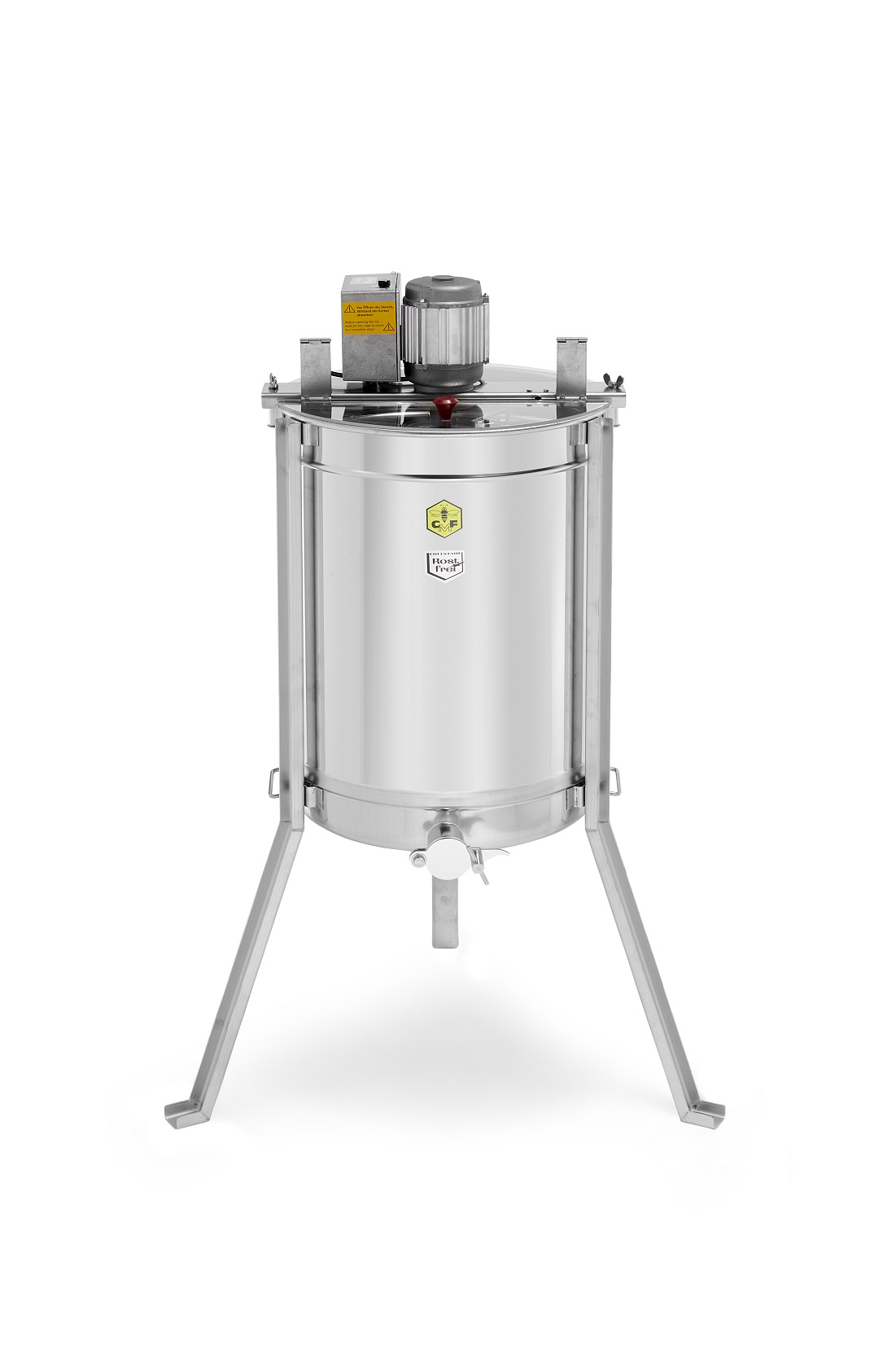

CFM-Tangential extractor Ø 43 cm, 4 frames with "Whispering Witch" 40W

€1,579.00*

Prices incl. VAT plus shipping costs

Available, Lieferzeit 1 - 3 Arbeitstage

Product number: 5002581

Product information

The smallest CFM-Honey extractors with our new direct drive "Whispering Witch". Why "Whispering"? Because this drive is amazingly quiet even at full speed. In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier? Further advantages are the very small dimension, the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes. For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids. Suitable for: • 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, Langstroth Technical details: • Direct drive with security switch • Motor power 40 W / 230 V • Very quiet drive even at full speed • Speed control 80 - 350 rpm • Hinged acrylic glass lid halves • Inner tank Ø 43 cm, welded bottom without gap • Tank bottom with slope to the outlet • Outlet: 1 1/2" honey tap, welded at bottom level • Handles at the lower end of the tank • Grid area of the cage 24.5 x 46 cm • Without middle axis (combs can be turned inside the cage) • Material: Edelstahl-Rostfrei • Loading height: 100 cm • Distance from floor to the tap 38 cm Included in the delivery: 1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing. Weight with/without wrapping: 24 kg / 29 kg Wrapping: cardboard box Chargeable weight: 35 kg Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6300061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20 g Item no. 23045007 Sealant for bottom bearing Item no. 5002443 4 frames tangential cage Acrylic glass lid half on request

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

6300061

Rubber feet with stainless steel for extractor up to inner tank Ø 63 cm, 1 set = 3 pieces, with M8 grub screws and nuts

1 set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors up to inner-Ø 63 cm with M8 threaded pin and nut. Protect your floors and ensure your extractor stands more firmly. Height of each rubber foot is 28 cm.

€18.30*

6000070

Ball Ø 10 mm for bottom bearing

Ball small Ø 10 mm for insertion into the bottom bearing. For honey extractors with drive or motor on TOP of the honey extractor.

€1.50*

23045007

Sealant for bottom bearing (starting building year 2021)

Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top. This sealant is to cover the bottom bearing while cleaning the tank. Colour: yellow

€1.50*

6000074

Food lubricant grease for bottom bearing 20 g

Food grade grease for the bottom bearing. Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage. For regular maintenance of your honey extractor. Contents: tin with 20 g

Content: 0.02 Kilogramm (€325.00* / 1 Kilogramm)

€6.50*

similar items

CFM-Tangential extractor Ø 43 cm, 4 frames with motor 110W

5002571

CFM-Tangential extractor Ø 43 cm, 4 frames with motor 110W

The smallest CFM-Honey extractors with our "Extractor Witch". Advantages are the very small dimension and the cage without middle axis. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes. For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids. Suitable for: • 4 deep or shallow frames up to 23.5 cm sidebar length • Frame sizes: Zander, German Standard, Langstroth Technical details: • Direct drive with security switch • Motor power 110 W / 230 V • Hinged acrylic glass lid halves • Inner tank Ø 43 cm, welded bottom without gap • Tank bottom with slope to the outlet • Outlet: 1 1/2" honey tap, welded at bottom level • Handles at the lower end of the tank • Grid area of the cage 24.5 x 46 cm • Without middle axis (combs can be turned inside the cage) • Material: Edelstahl-Rostfrei • Loading height: 100 cm • Distance from floor to the tap 38 cm Included in the delivery: 1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing. Weight with/without wrapping: 24 kg / 29 kg Wrapping: cardboard box Chargeable weight: 35 kg Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6300061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20 g Item no. 23045007 Sealant for bottom bearing Item no. 5002443 4 frames tangential cage Acrylic glass lid half on request

€1,363.00*

CFM-Tangential extractor Ø 43cm, manual drive, 4 frames

5002500

CFM-Tangential extractor Ø 43cm, manual drive, 4 frames

The smallest CFM-Honey extractors with manual drive Advantages are the very small dimension, the cage without middle axis and the fact that you can run this honey extractor without electricity. This extractor is equipped with a honey tap, has two practical handles at the tank and is suitable for a lot of the common frame sizes. For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids. Suitable for: • 4 deep or shallow frames up to 23.5 cm side bar length • Frame sizes: Zander, German Standard, Langstroth Technical details: • Manual drive with hinged lid halfs • Inner tank Ø 43 cm, welded bottom without gap • Tank bottom with slope to the outlet • Outlet: 1 1/2" honey tap, welded at bottom level • Handles at the lower end of the tank • Grid area of the cage 24.5 x 46 cm • Without middle axis (combs can be turned inside the cage) • Material: Edelstahl-Rostfrei • Loading height: 100 cm • Distance from floor to the tap 38 cm Included in the delivery: 1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing. Weight with/without wrapping: 21 kg / 26 kg Wrapping: cardboard box Chargeable weight: 32 kg Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6300061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20 g Item no. 23045007 Sealant for bottom bearing Item no. 5002443 4 frames tangential cage Acrylic glass lid half on request

€947.00*
