CFM-Tangential acrylic glass honey extractor 4-combs, 110 W motor drive

Create review

CFM-Tangential acrylic glass honey extractor 4-combs, 110 W motor drive

€1,693.00*

Prices incl. VAT plus shipping costs

Available in 15 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5004571

Product information

Suitable for: • 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm) • frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch Technical details: • top drive with safety device • motor 110 W / 230 V • hinged acrylic glass lid halfs • tank inner-Ø 50 cm • grid area of the comb cage 29 x 46 cm • without middle axis (frames can be turned inside the cage) • stainless steel • total height 116 cm Weight with/without wrapping: 28 kg / 23 kg Wrapping: cardboard box Chargeable weight: 38 KG Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6000061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20g Item no. 23045001 Sealant for bottom bearing Item no. 5002943 4-frames tangetial cage Acrylic glass lid half on request

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

6000074

Food lubricant grease for bottom bearing 20 g

Food grade grease for the bottom bearing. Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage. For regular maintenance of your honey extractor. Contents: tin with 20 g

Content: 0.02 Kilogramm (€325.00* / 1 Kilogramm)

€6.50*

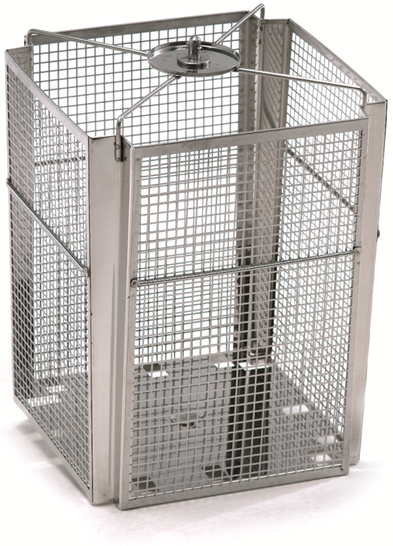

5002943

4-frames tangential cage for tank inner-Ø 50 cm

Cage without going through shaft so that the combs can be turned inside the cage. For extractors with Ø 50 cm. Suitable for the following CFM- honey extractors: no. 5004300, 5004371, 5004500, 5004571 Our standard size on top and bottom of the drive shaft: Ø 14 mm. For order indicate the aperture of the drift shaft (top and bottom) and the length of the shaft.

€257.00*

6000070

Ball Ø 10 mm for bottom bearing

Ball small Ø 10 mm for insertion into the bottom bearing. For honey extractors with drive or motor on TOP of the honey extractor.

€1.50*

23045007

Sealant for bottom bearing (starting building year 2021)

Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top. This sealant is to cover the bottom bearing while cleaning the tank. Colour: yellow

€1.50*

6300061

Rubber feet with stainless steel for extractor up to inner tank Ø 63 cm, 1 set = 3 pieces, with M8 grub screws and nuts

1 set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors up to inner-Ø 63 cm with M8 threaded pin and nut. Protect your floors and ensure your extractor stands more firmly. Height of each rubber foot is 28 cm.

€18.30*
