Product number:
5097031
Product information
• Solid tube construction made of stainless steel
• Height 50 cm
• With 4 wheels two of them with locking brake
• Fits item number 5800194 + 5821600
More sizes available on request.
Login
accessories
5800193

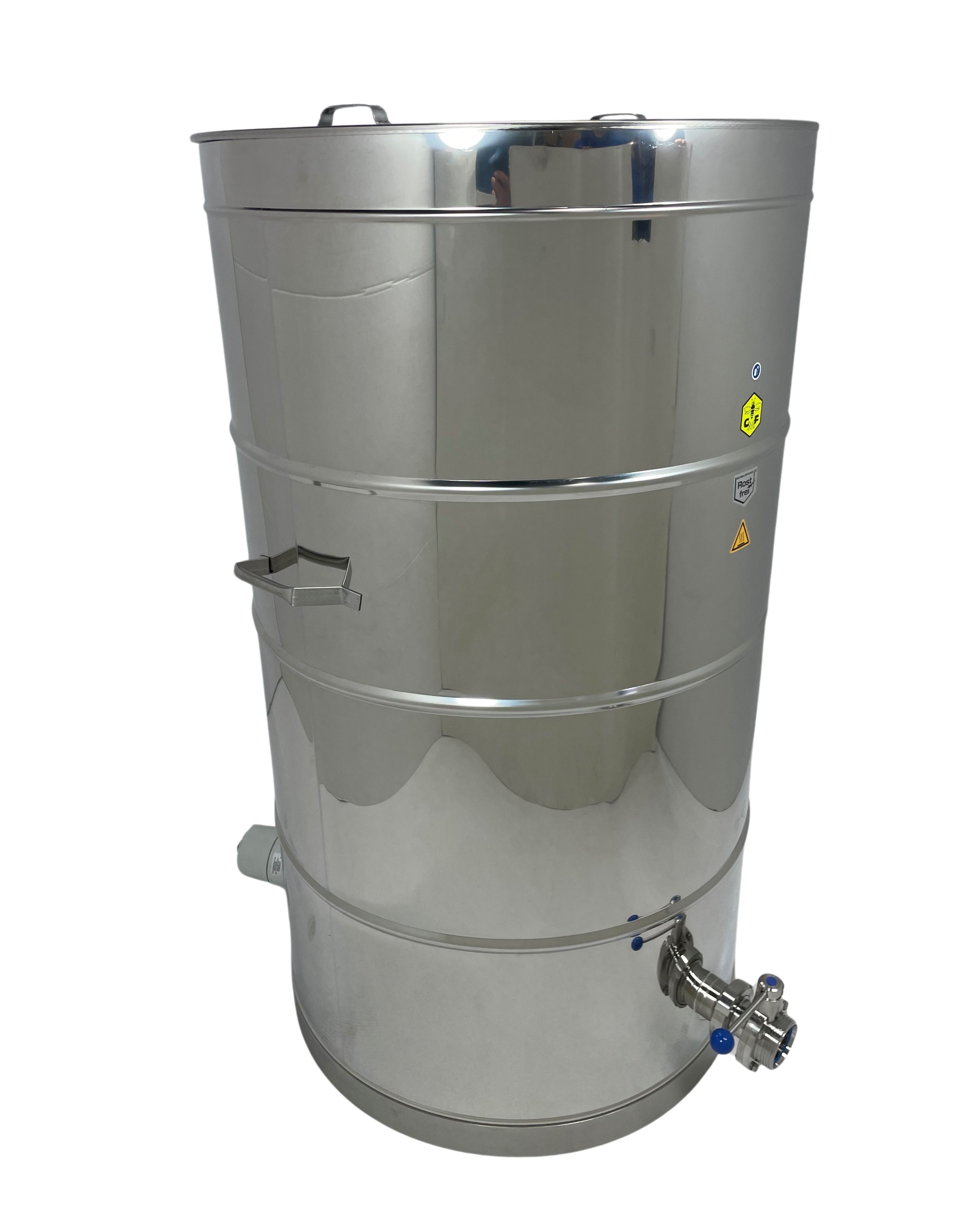

CFM-Honey tank 600 kg double walled, loose lid
Technical details:
• Inner tank Ø 72cm, welded bottom without gap
• Outer tank Ø 77 cm
• Outer tank height 138 cm
• Rigid handles
• Tank bottom with slope to the outlet
• Outlet: DN50 dairy thread weldet at bottom level with screwed on DN50 disc valve
• Loose lid
• Material: Stainless steel
• Heating 6kW / 400 V
• Capacity of the double wall: approx. 120 liter
Weight without/with wrapping: 80 kg / 106 kg
Packed on a wooden pallet
Chargeable weight: 106 kg
Please note:
We recommend to fill the double wall with filtered rainwater.
5822600
CFM-Honey creamer 600 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25-30°C.
In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (Rake has to be covered with honey)!
Technical details:
• flat gear motor 1100 W / 400 V
• approx. 18 rpm
• paddle screw with rake at the bottom
• minimum filling quantity: 130 kg
• inner tank Ø 72 cm, welded bottom without gap
• outer tank Ø 77 cm
• rigid handles
• tank bottom with slope to the outlet
• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve
• material: stainless steel
• heater 6kW / 400 V
• capacity for double wall: approx. 120 liter
• outer tank height: 137 cm
• total height: 162 cm
Please note:
We recommend filling the double wall with water (eg filtered rainwater).
Weight: without wrapping: approx. 175 kg / with wrapping 185 kg
Packed on a pallet
Chargeable weight: 185 kg
Optional accessories - please order separately:
Item no. 5092100 timer
Item no. 5097031 stand
