Product number:
5097057
Product information

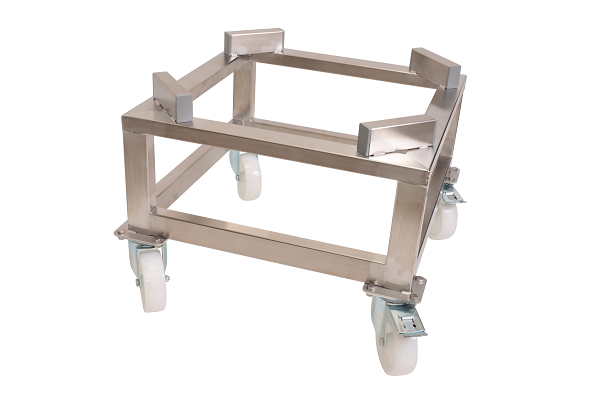

CFM-Stand for 100 kg tanks (double walled)
• Solid tube construction made of stainless steel
• Height 50 cm
• With 4 wheels two of them with locking brake
• Fits tank no. 5800186 and 5822100
Login
accessories
5800186
CFM-Honey tank 100 kg double walled, loose lid
Technical details:
• Inner tank Ø 43cm, welded bottom without gap
• Outer tank Ø 48 cm
• Outer tank height 72 cm
• Rigid handles
• Tank bottom with slope to the outlet
• Outlet: DN40 dairy thread weldet at bottom level with screwed on DN40 disc valve
• Loose lid
• Material: Stainless steel
• Heating 3kW / 230 V
• capacity of the double wall: approx. 38 liter
Weight without/with wrapping: 15 kg / 35 kg
Wrapped in cardboard box
Please note:
We recommend to fill the double wall with distilled water.
5822100
CFM-Honey creamer 100 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 - 30 °C.
In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 250 W / 230 V
• Approx. 24 rpm
• Paddle screw with rake at the bottom
• Inner tank Ø 43, welded bottom without gap
• Outer tank Ø 48 cm
• Rigid handles
• Tank bottom with slope to the outlet
• Outlet: DN40 dairy thread welded at bottom level with screwed on DN40 disc valve
• Material: stainless steel
• Heater 3000 W / 230 V
• Capacity for double wall: approx. 38 liter
• Outer tank height: 72 cm
• Total height: 100 cm
• Incl. plug-in timer
Please note: We recommend filling the double wall with water (filtered rain water).
Weight without wrapping: 60 kg
Incl. wrapping: 65 kg
