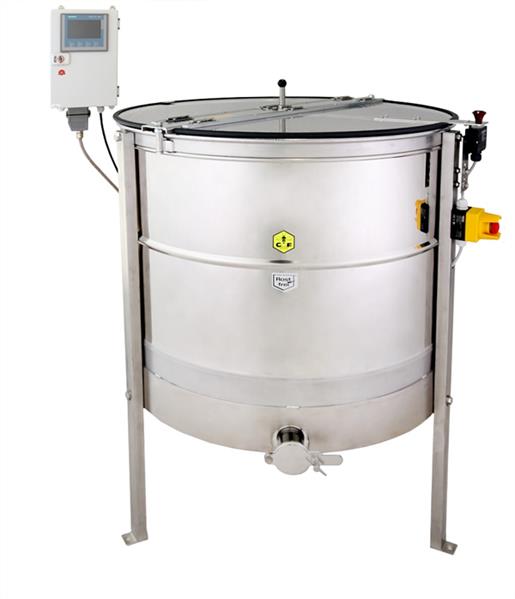

CFM-Self-turning extractor 6 pockets, Ø 85cm, 370W motor drive underneath, fully automatic

Create review

CFM-Self-turning extractor 6 pockets, Ø 85cm, 370W motor drive underneath, fully automatic

€6,112.00*

Prices incl. VAT plus shipping costs

Available in 15 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5524030

Product information

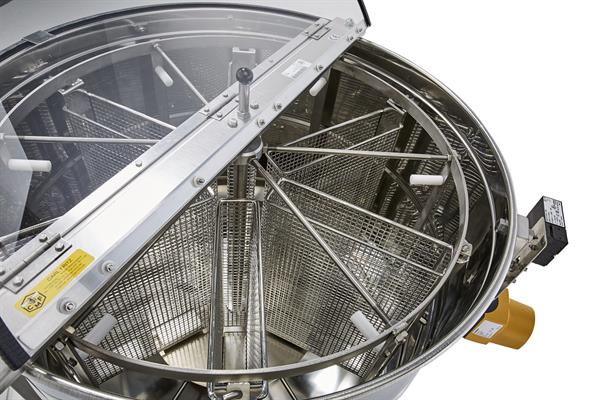

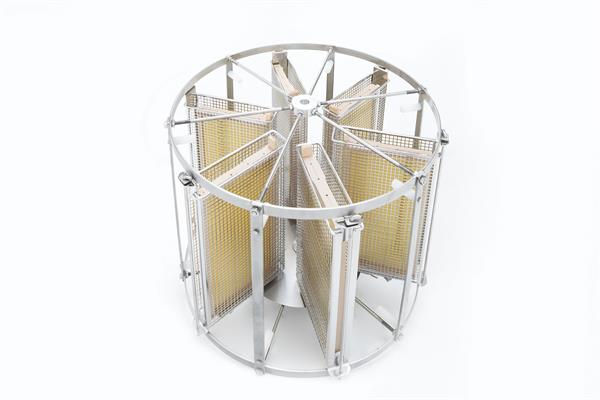

Suitable for: • 6 deep frames side bar length up to 29 cm / 12 shallow frames side bar length up to 14.5 cm • Frame sizes: Zander, German Standard, Langstroth, Dadant super, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe Technical details: • Emergency stop botton • Safety device with lid lock • Bottom drive 370W / 230 V • Fully automatic speed control with wall holder • Hinged acrylic glass lid halfs • Inner tank Ø 85 cm welded bottom withouth gap • Tank bottom with slope to the outlet • Pocket size 30 cm x 45 cm • Slots for frame lugs • Material:stainless steel • Loading height 110 cm • Total height 119 cm • Distance from the floor to the honey tap 38 cm • Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap Weight without/with wrapping: 121 kg / 150 kg Packed on a wooden pallet Chargeable weight: 150 kg Tripod (5055000) for speed control has to be ordered separatly!

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

23045002

Yellow cover for ball bearing (big), bottom drive

Plastic cover for the bottom bearing of honey extractors with bottom drive. The plastic cover protects the bottom bearing while cleaning the Honey extractor. colour: yellow

€1.60*

6000072

Ball Ø 15 mm for bottom bearing

Ball big Ø 15 mm for insertion into the bottom bearing. For honey extractors with drive or motor on BOTTOM of the honey extractor.

€2.30*

6000074

Food lubricant grease for bottom bearing 20 g

Food grade grease for the bottom bearing. Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage. For regular maintenance of your honey extractor. Contents: tin with 20 g

Content: 0.02 Kilogramm (€325.00* / 1 Kilogramm)

€6.50*
