CFM-Self-turning extractor 16 frames, Ø125cm, 1500W, bottom drive with fully automatic, with lid opener
Product number:
5536030-PTO
Product information
Suitable for:
• 16 deep frames (side bar length up to 29 cm) / 32 shallow frames (side bar length up to 14.5 cm)
• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Austrian Breitwabe
Technical details:

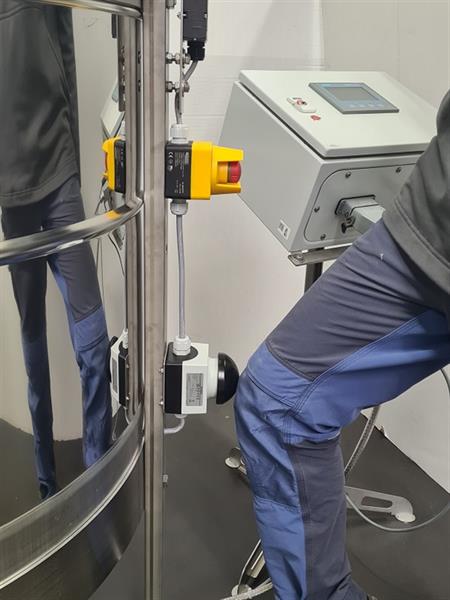

• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V

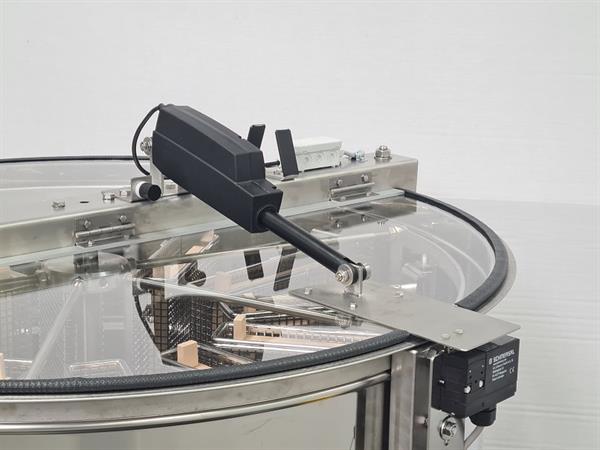

• With electrical lid opener
• Push-to-open via special button

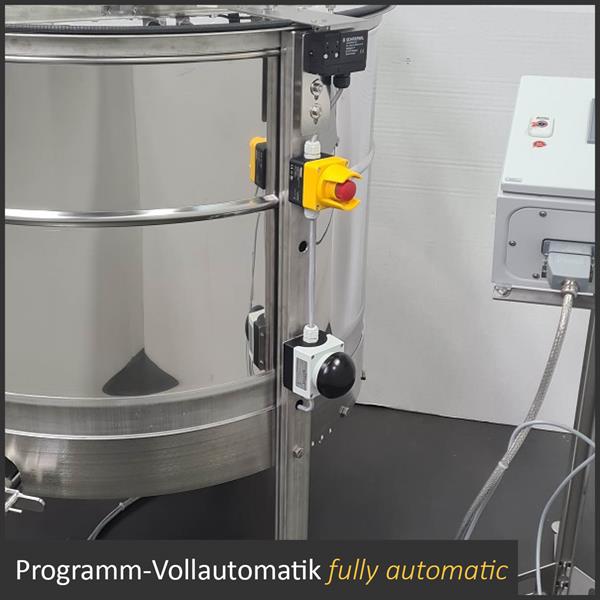

• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm, welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 30 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight: XX kg, packed on a wooden pallet
Tripod (5055500) for speed control has to be ordered separatly!
