CFM-Self-turning extractor, 12 pockets, Ø125cm, motor 1500W underneath, fully automatic, with lid opener
Product number:
5534034-PTO
Product information
Suitable for:
• 12 deep frames (side bar length up to 33 cm) / 24 shallow frames (side bar length up to 16.5 cm)
• frame sizes: Zander, German Standard, Langstroth, Dadant, Zander-Dadant, Freudenstein, Gerstung, Kuntzsch, Austrian Breitwabe
Technical details:
• Emergency stop botton
• Safety device with lid lock
• Bottom drive 1500W / 230 V

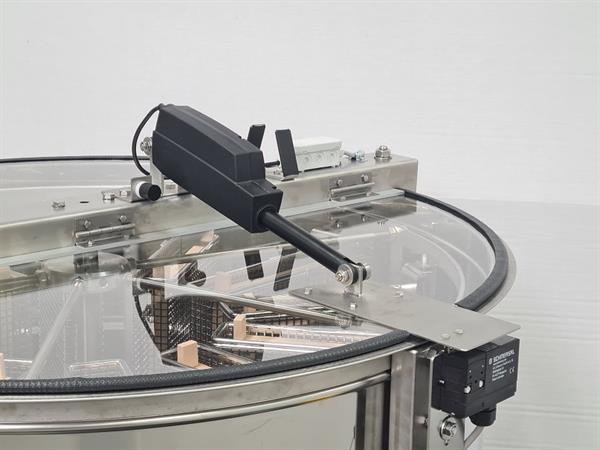

• With electrical lid opener
• Push-to-open via special button

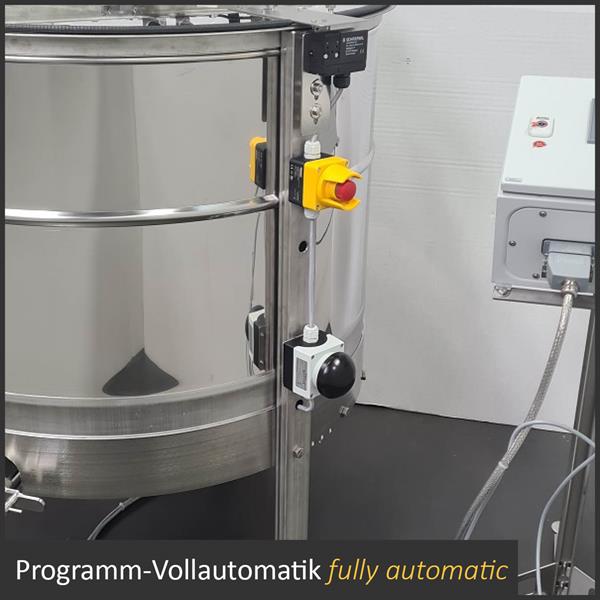

• Fully automatic speed control with wall holder
• Hinged acrylic glass lid halfs
• Inner tank Ø 125 cm welded bottom withouth gap
• Tank bottom with slope to the outlet
• Pocket size 34 cm x 45 cm
• Slots for frame lugs
• Material:stainless steel
• Loading height 117 cm
• Total height 131 cm
• Distance from the floor to the honey tap 38 cm
• Outlet: Outlet pipe welded at bottom level with DN 50 dairy thread connection and screw-on 2” honey tap
Weight without/with wrapping: 230 kg / 275 kg
Packed on a wooden pallet
Chargeable weight: 275 kg
Tripod (5055500) for speed control has to be ordered separatly!
