CFM-Mini cappings melter and honey liquefier with legs on wheels

Create review

CFM-Mini cappings melter and honey liquefier with legs on wheels

€1,555.00*

Prices incl. VAT plus shipping costs

Available in 30 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5400136

Product information

1 device - 3 applications: Melt uncapping wax, liquify honey and melt melizitosis honey.
*Hight adjustable*

Here you will find the product video: https://www.youtube.com/watch?v=oe7cHSfVwGk

Automatically separates the wax from the honey without overheating it because of the heater with fan in the lid. The fan achieves a uniform heat distribution over the entire wax-honey surface. The ideal device for beekeepers, who do uncapping with a machine or uncapping knife and thus have to process more uncapping wax mixed with honey.
Capacity above the drip tray approx. 55 ltr., so that a 40 kg bucket full of uncapping wax can easily be distributed onto the drip tray.

Additionally, the device can be used to liquify honey.

Technical details:
• Made of stainless steel.
• Inner Tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• 3 adjustable legs on wheels with brake
• Thermostatic control of the heating from 30 - 110°C (2000 W / 230 V)
• Outlet: 1 1/2" honey tap, welded at bottom level
• Inner tank height (drip tray to top edge): 50 cm

a) Low
Total height including fan motor: 137 cm
Distance floor to tank top: 102 cm
Distance floor to honey valve: 34 cm

b) High
Total height including fan motor: 145 cm
Distance floor to tank top: 110 cm
Distance floor to honey valve: 43 cm

Accessoriest:
• Item no. 5009136 Flat traverse with arbor
• Item no. 5008136 Stand for the cappings melter

Note:
The duration of the complete melting process depends on the filling and condition of the wax. For a loose filling with the young combs, approx. 3 - 4 hours can be expected.

Weight: 28 kg
Chargeable weight: 39 kg

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

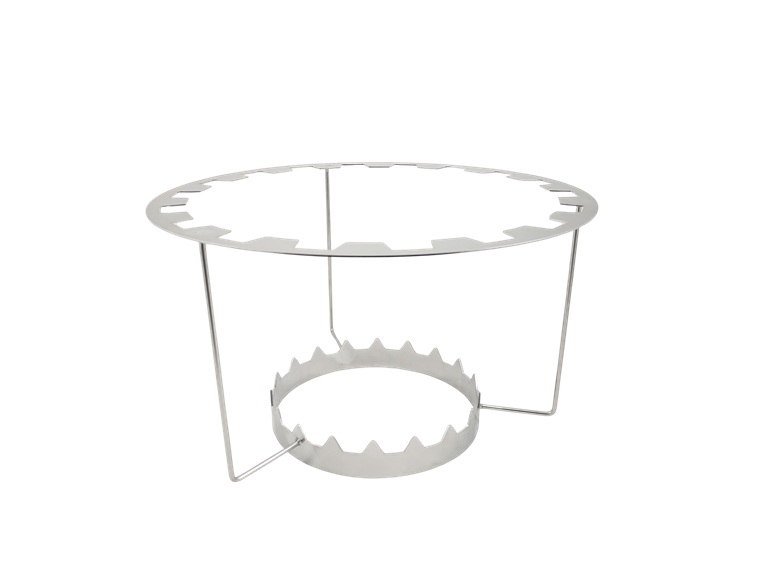

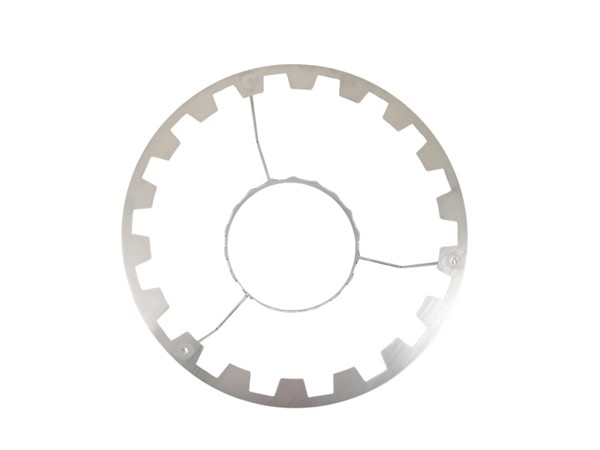

CFM-Frame suport for CFM-Mini cappings melter

5005136

CFM-Frame suport for CFM-Mini cappings melter

Made of stainless steel. Suitable for up to 18 frames with a side length up to 180 mm. Height: approx. 30 cm for tanks with Ø 55 cm. Suitable for CFM-Mini cappings melter item no. 5200136 / 5400136.

€139.00*

5306136

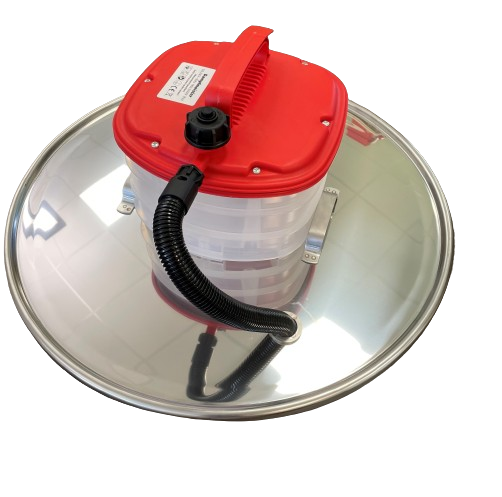

Lid with seal and steam generator for CFM-Mini cappings melter

Consists of: - Stainless steel lid with seal and hole for steamhose and two handles - Steam generator: Power: 1.850 - 2.200W / 230V Easy to use - just fill with water (preferably hot), put hose through hole in lid and plug it in the power supply. Water volume sufficient for approx. 1 hour of uninterrupted use.

€155.00*

5009136

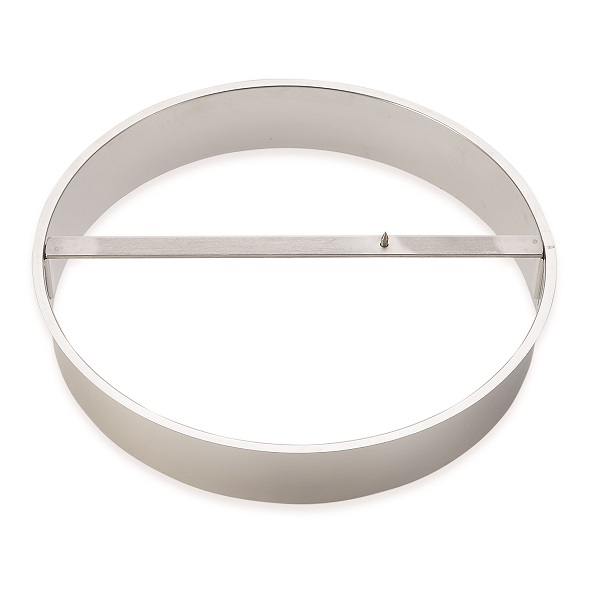

Traverse with spike for MINI cappings melter

Made of stainless steel. So you can put your frame on the spike and uncap it with the knife directly on the uncapping wax melter. No moving of the honey-wax mixture from one place to the other anymore! Ideal for uncapping with a knife. Suitable for item no. 5200136 or 5400136

€136.50*

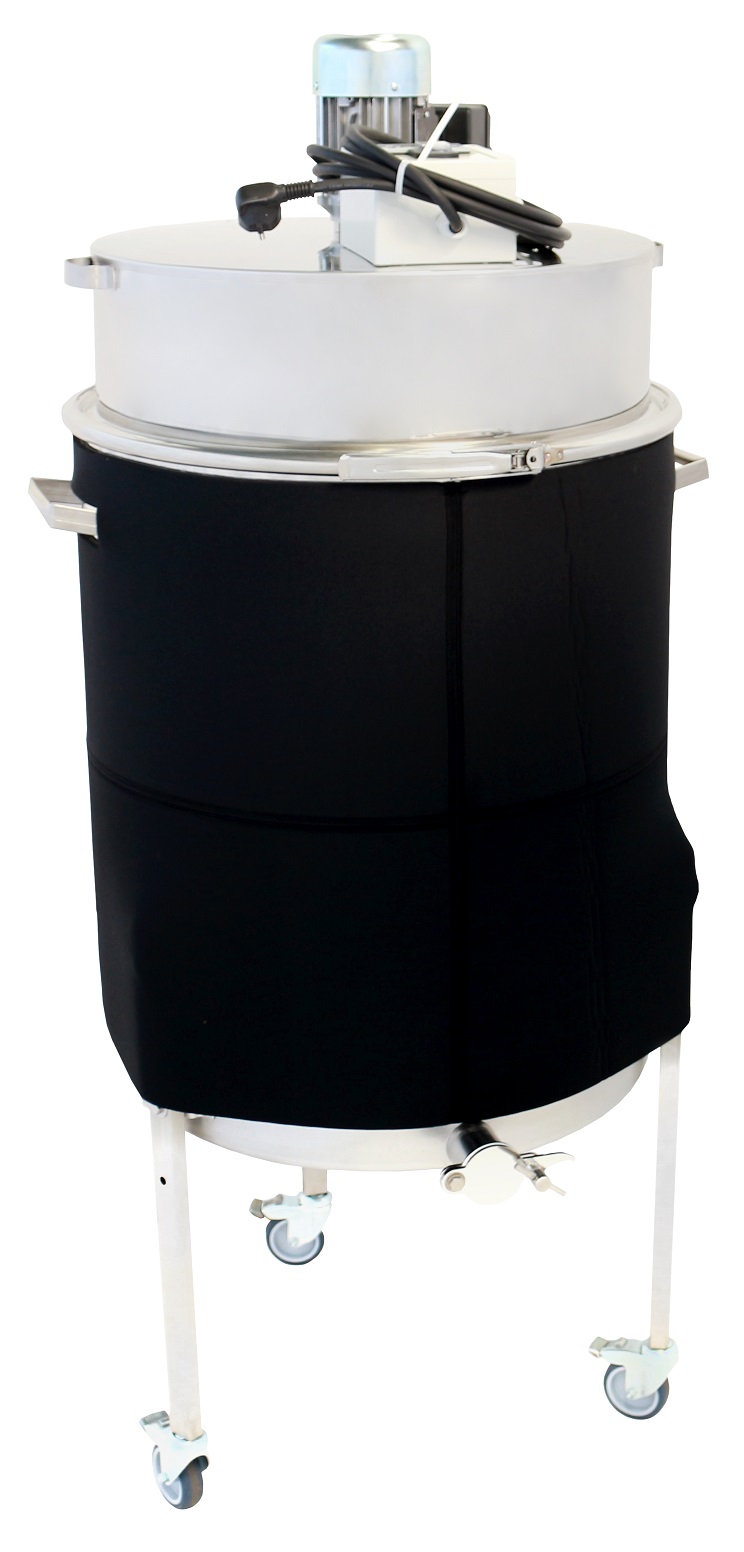

Tank insulation for CFM-Mini cappings melter

6093020

Tank insulation for CFM-Mini cappings melter

Suitable for CFM-Mini wax melter, item no. 5200136 and 5400136 • Made of foamed insulation material • With cut-outs for handles • Weight approx. 1,2 kg

€145.00*

similar items

6000135

Uncapping wax melter

A double-walled well insulated tank made entirely of stainless steel with two separate adjustable heating systems in the bottom and the lid. The special feature is the fan in the lid which quickly circulates the hot air and guarantees that the honey is treated quickly and is not damaged. To melt the uncapping wax, place the wax (approx. 120 kg = 3 x 40 kg bucket) on top of the bottom strainer, adjust the bottom temperature to 40°C, lid temperature to 80°C. The wax starts melting while the heavier honey flows off. You can first drain the undamaged honey and then the liquid wax. You can recover almost 100 % of the honey out of the uncapping wax. Tray inside: 99 x 49 x 34 cm Weight: 75 kg Chargeable weight: 130 kg

€4,530.00*

CFM-Mini cappings melter and honey liquefier

5200136

CFM-Mini cappings melter and honey liquefier

Here you will find the product video: https://www.youtube.com/watch?v=oe7cHSfVwGkAutomatically separates the wax from the honey without overheating it because of the heater with fan in the lid. The fan achieves a uniform heat distribution over the entire wax-honey surface. The ideal device for beekeepers, who do uncapping with a machine or uncapping knife and thus have to process more uncapping wax mixed with honey. Made of stainless steel.Capacity above the drip tray approx. 55 ltr., so that a 40 kg bucket full of uncapping wax can easily be distributed onto the drip tray.Additionally, the device can be used to liquify honey. Thermostatic control of the heating from 0 - 110 ° C (2.000 W / 230 V)Technical details:• Inner Tank Ø 55 cm, welded bottom without gap• Tank bottom with slope to the outlet• Total height incl. lid with motor: approx. 95 cm• Tank height (bottom to top edge): 63.5 cm• Tank height (drip tray to top edge): 41 cm• Rigid handles• Outlet: 1 1/2" honey tap, welded at bottom levelAccessoriest:• Item no. 5009136 Flat traverse with arbor• Item no. 5008136 Stand for the cappings melterNote:The duration of the complete melting process depends on the filling and condition of the wax. For a loose filling with the young combs, approx. 3 - 4 hours can be expected.Weight: 26 kgChargeable weight: 39 kg

€1,462.00*
