Product number:
5022600
Product information
In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)!
Technical details:
• Flat gear motor 1100 W / 400 V
• Approx. 18 rpm
• Paddle screw with rake at the bottom
• Minimum filling quantity: 230 kg
• Inner tank Ø 72 cm welded bottom without gap
• Rigid handles
• Tank bottom with slope to the outlet

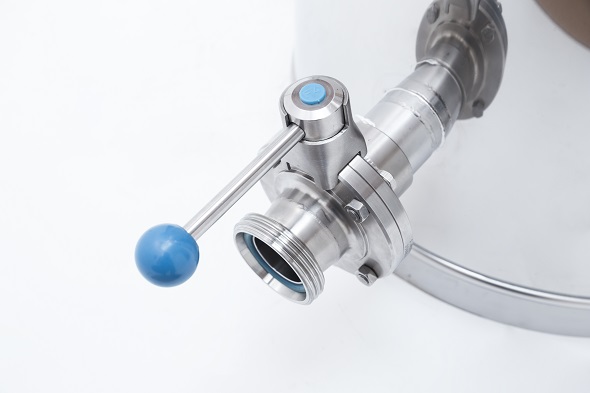

• Outlet: welded on DN50 dairy thread at bottom level with screwed on DN 50 disc valve
• Material: Stainless steel
• Outer tank height: 125 cm
• Total height: aprox. 150 cm
Weight without/with wrapping: 118 kg / 142 kg
Packed on a pallet
Chargeable weight: 142 kg
Accessories - please order separately:
Item no. 5091300 bottom heating
Item no. 5092100 timer switch
Item no. 5097020 stand for 600 kg creamer
Login
accessories
5091300
Bottom heating 1500 W / 230 V (Ø 69 - 77 cm)
The bottom heating 1500 W / 230 V is installed by our expert staff.
Bottom heating thermostatically adjustable for tanks, honey creamers and honey extractors with inner-Ø 69 - 77 cm.
5097020

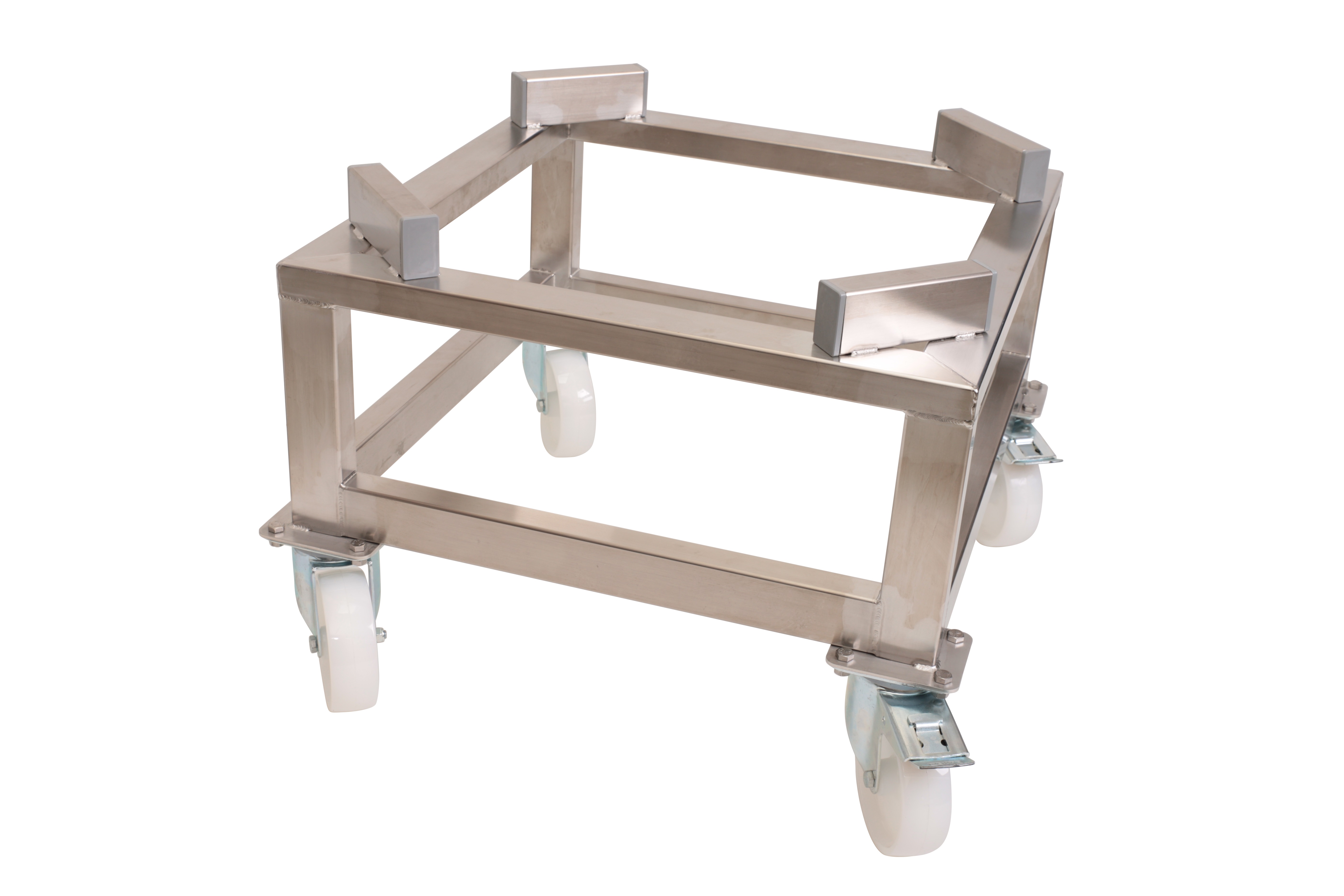

CFM-Stand for 600 kg tank or creamer, height 50 cm, with 4 wheels
CFM-Stand for 600 kg tanks
• Solid tube construction made of stainless steel
• Height 50 cm
• With 4 wheels two of them with locking brake
• Fits item number 5300193, 5309193 and 5022600
More sizes available on request.
Attention: Can not be usesd for a double walled tank! Please order item no. 5097031 for that purpose.
similar items
5822600
CFM-Honey creamer 600 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25-30°C.
In the tank you can stir up to 600 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (Rake has to be covered with honey)!
Technical details:
• flat gear motor 1100 W / 400 V
• approx. 18 rpm
• paddle screw with rake at the bottom
• minimum filling quantity: 130 kg
• inner tank Ø 72 cm, welded bottom without gap
• outer tank Ø 77 cm
• rigid handles
• tank bottom with slope to the outlet
• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve
• material: stainless steel
• heater 6kW / 400 V
• capacity for double wall: approx. 120 liter
• outer tank height: 137 cm
• total height: 162 cm
Please note:
We recommend filling the double wall with water (eg filtered rainwater).
Weight: without wrapping: approx. 175 kg / with wrapping 185 kg
Packed on a pallet
Chargeable weight: 185 kg
Optional accessories - please order separately:
Item no. 5092100 timer
Item no. 5097031 stand
