Product number:
5022050
Product information

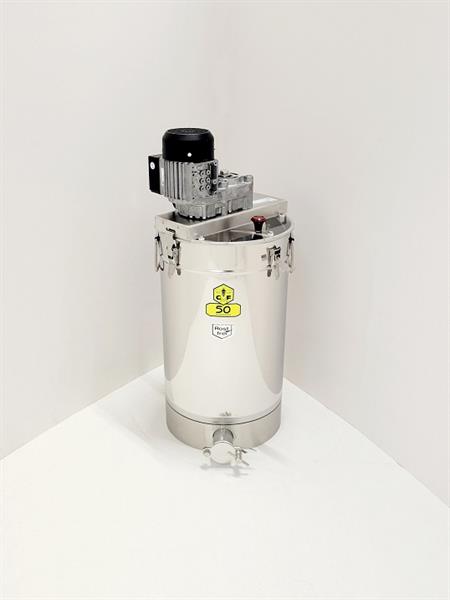

In the tank you can stir up to 50 kg of honey. The paddle screw always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 90 W / 230 V
• Approx. 23 rpm
• Inner tank Ø 30 cm, welded bottom without gap
• Tank with for locks
• Drop handles
• Tank bottom with slope to the outlet
• Outlet: Honey tap 1 1/2" welded at bottom level
• Material: Stainless steel
• Total height: approx. 76 cm
• Plug in timer switch included
Included in the delivery is a lid with silicon gasket
Weight: 17.5 kg
Wrapped in a cardboard box on a pallet
Chargeable weight: 31 kg
Accessories - please order separately:
Item no. 5009500 bottom heating
Item no. 5921050 stand for 50 kg creamer
Login
accessories
5009079

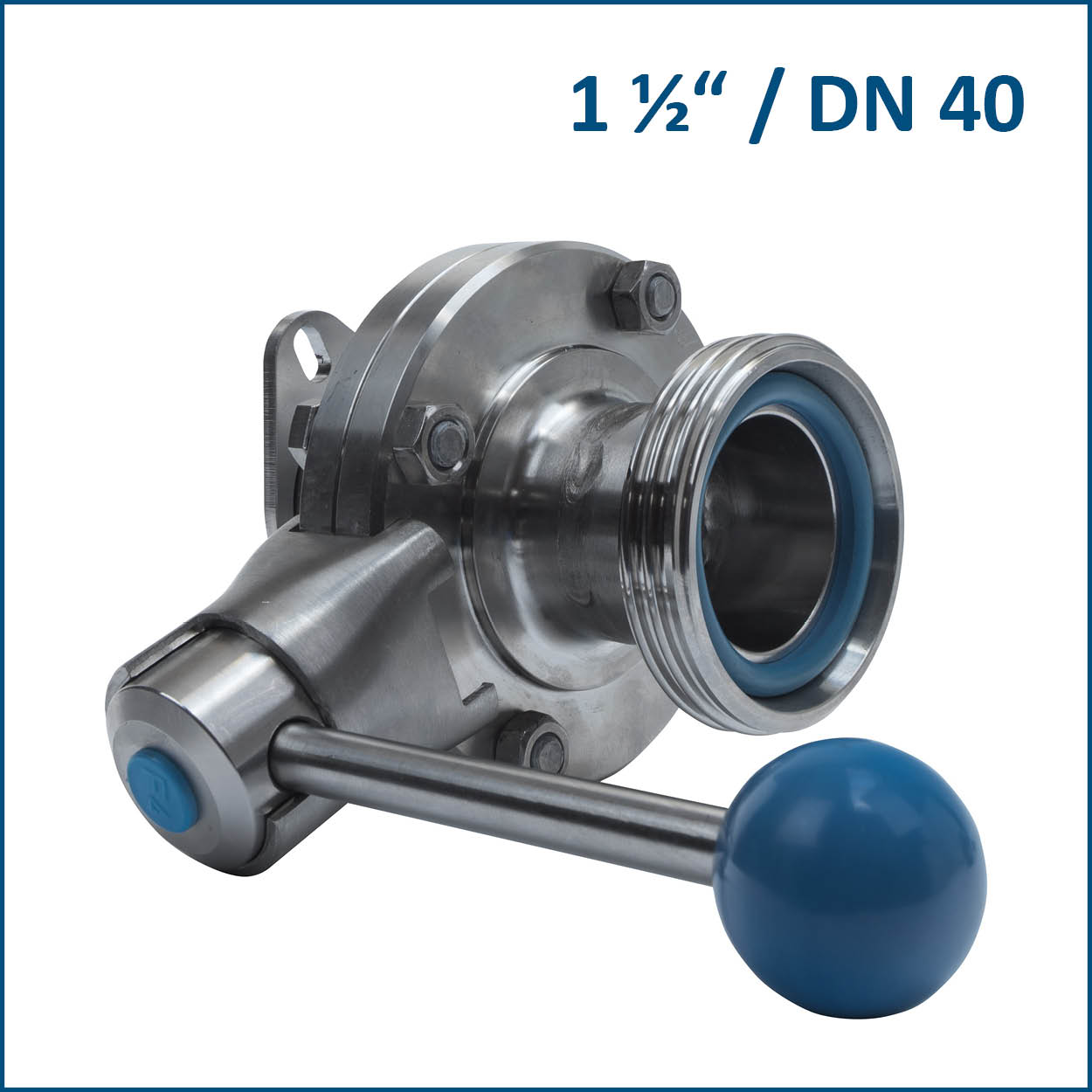

Disc valve DN40 with 1 1/2" honey tap flange incl. silicon seal
Tank side: 1 1/2" honey tap flange incl. silicon seal
Tap side: Dairy thread DN 40
Material: Stainless steel
5009500
Bottom heating 500W/230V for tanks up to Ø 30cm
Installation by CFM. For 25 kg, 35 kg and 50 kg tanks and 50 kg CFM-honey creamer and homogenizer
5200098

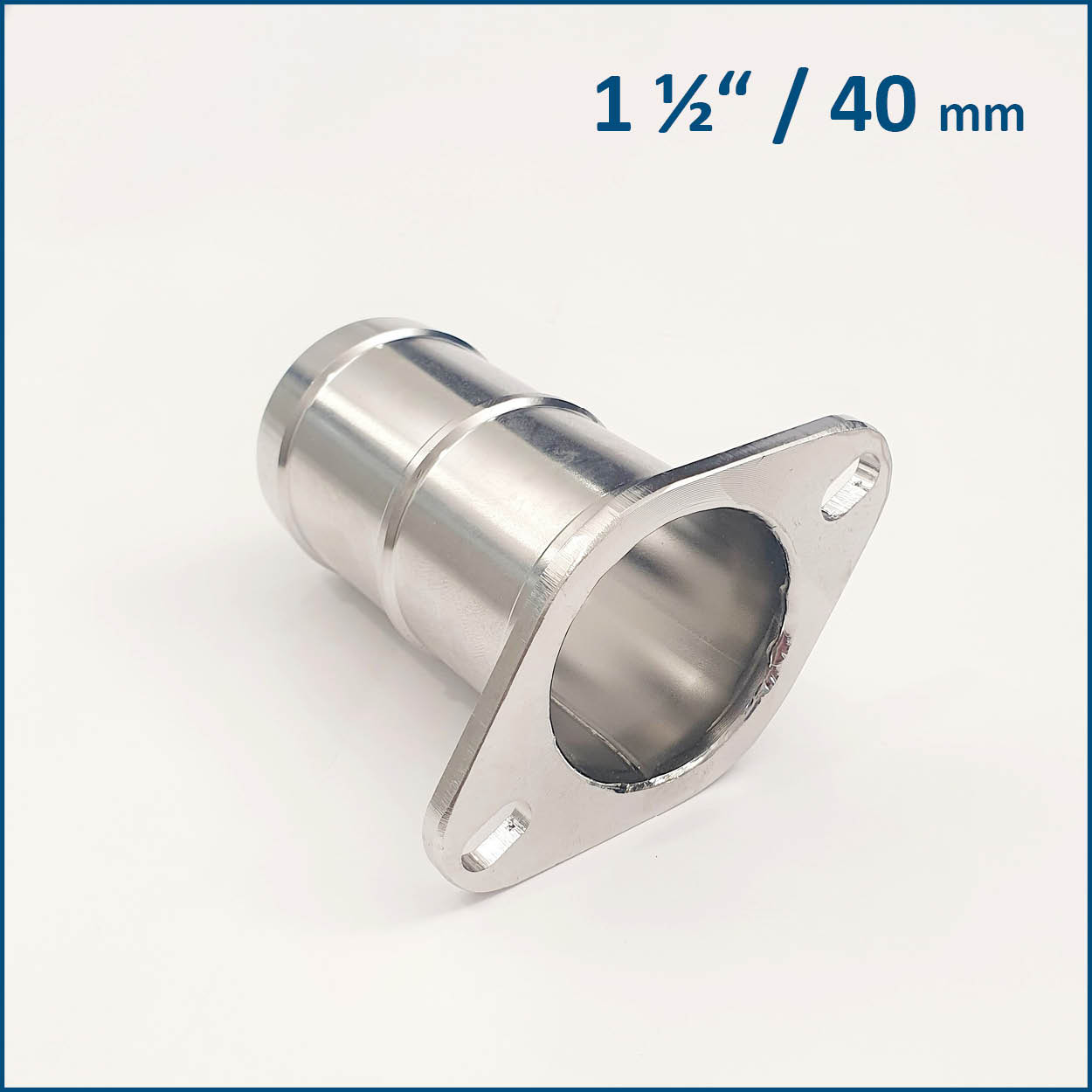

Hose connection with flange 1 1/2" | 40mm
*For honey tanks from year 2021 onwards*
Hose adapter with flange for honey tap with 1 1/2" (for hose Ø approx. 40 mm), long holes offer a distance of 62,5 - 88 mm.
Including wire hose clamp.
NOTE: Please order the matching silicone seal (item no. 6200099)!
5921050
CFM-Filling stand, stainless steel, for honey tank 50 kg, with glass tray
Bottom ring specially designed for the temperature control unit if the tank has a bottom heating, height 83.5 cm. The removable tray can be adjusted from 50 cm to 70 cm distance from the ground.
