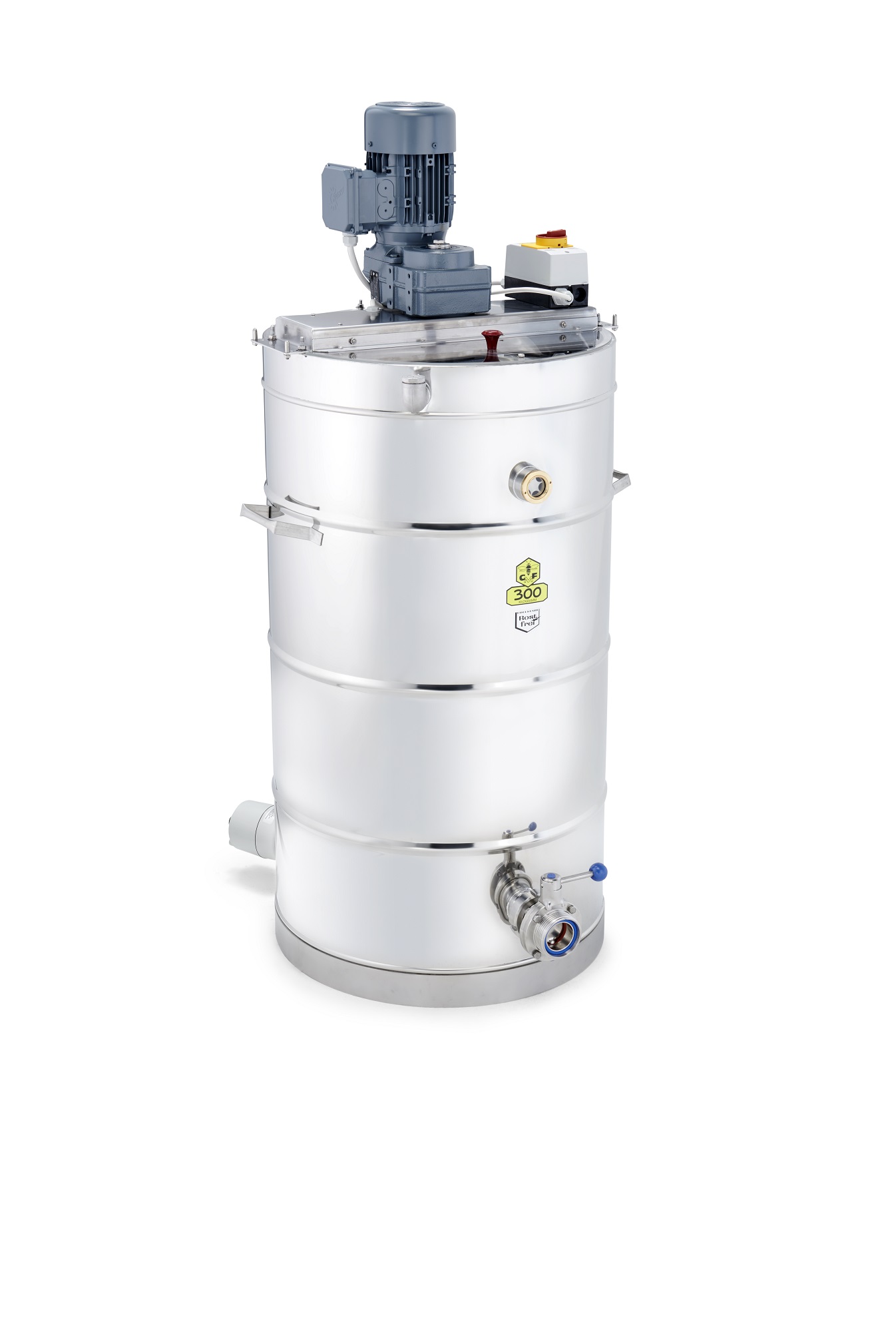

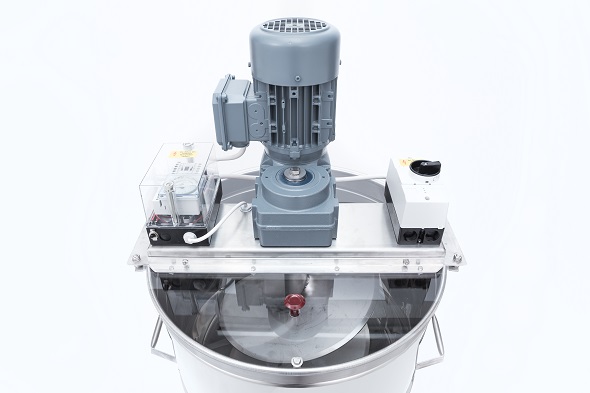

CFM-Honey creamer 300 kg (double walled)

€4,333.00*

Available in 15 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5822300

Product information

This double-walled honey creamer is especially suitable for mixing different blossom honey varieties. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 °C - 30 °C.

In the tank you can stir up to 300 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.

Technical details:
• flat gear motor 550 W / 400 V
• approx. 24 rpm

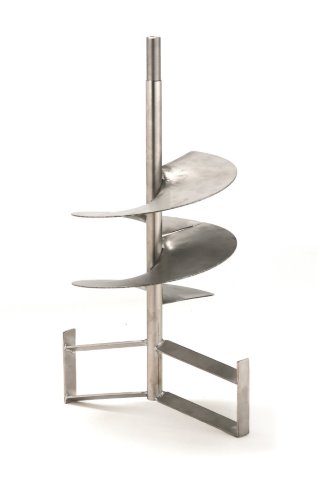

• paddle screw with rake at the bottom
• minimum filling quantity: 100 kg
• inner tank Ø 55 cm, welded bottom without gap
• outer tank Ø 60 cm
• rigid handles
• tank bottom with slope to the outlet

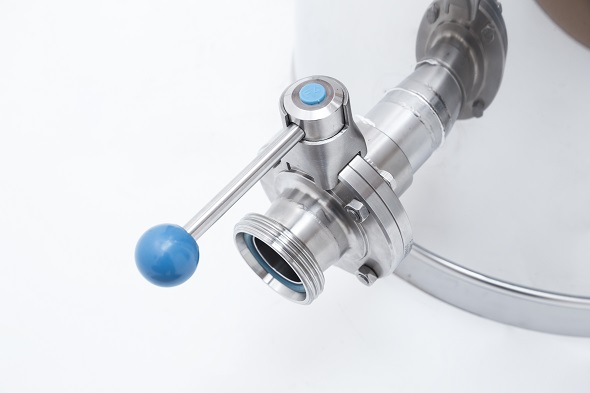

• outlet: DN50 dairy thread welded at bottom level with screwed on DN50 disc valve
• material: stainless steel
• heater 6 kW / 400 V
• capacity for double wall: approx. 72 liter
• outer tank height: 114 cm
• total height: 157 cm

Please note:
We recommend filling the double wall with water (eg filtered rainwater).

Weight: without/with wrapping: 88 kg / 110 kg
Packed on a wooden pallet
Chargeable weight: 110 kg

Accessories to be ordered separately:
Item no. 5092100 Timer switch
Item no. 5097050 Stand

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

5097050

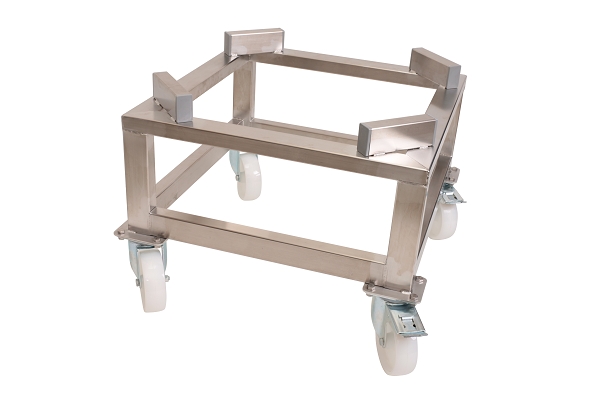

CFM-Stand for 300 kg double-walled tank

• Solid tube construction made of stainless steel• Height 50 cm• With 4 wheels, two of them with locking brake• Fits item number 5800191 + 5822300More sizes available on request.

€631.00*

6096000-3

Accessories for Water cooling system with circulation pump for 300 kg double walled tank (production 2023 or later) including the following:

Accessories for Water cooling system (item no. 6096100) to connect to a double walled 300 kg tank (production year 2023 or later) with return circulation distributor - picture similar

€445.00*

Water cooling system incl. circulation pump and digital temperature control

6096100

Water cooling system incl. circulation pump and digital temperature control

For tempering the honey during the creaming process – this produces the finest cream honey!Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat. The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.The device can only be used for cooling.Technical Data:Water connection: 3/4"Cooling power: 420 W at 0°C, 514 W at +5°C, 619 W at +10°CElectrical power: 230 V, 50 Hz, 1.6 AElectrical output: 300 WCooling machine: FR 7.5Cooling refrigerant: R290Filling quantity: 60 gTank content: 10 litreMeasurements (L/D/H): 480 x 300 x 370 mmCasing: stainless steelAgitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0.5 A, 64 WWeight: 22 kgShipping weight: 34 kg Optional Accessories - Please order separately:Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamerItem no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamerItem no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer

€1,997.00*

5092100

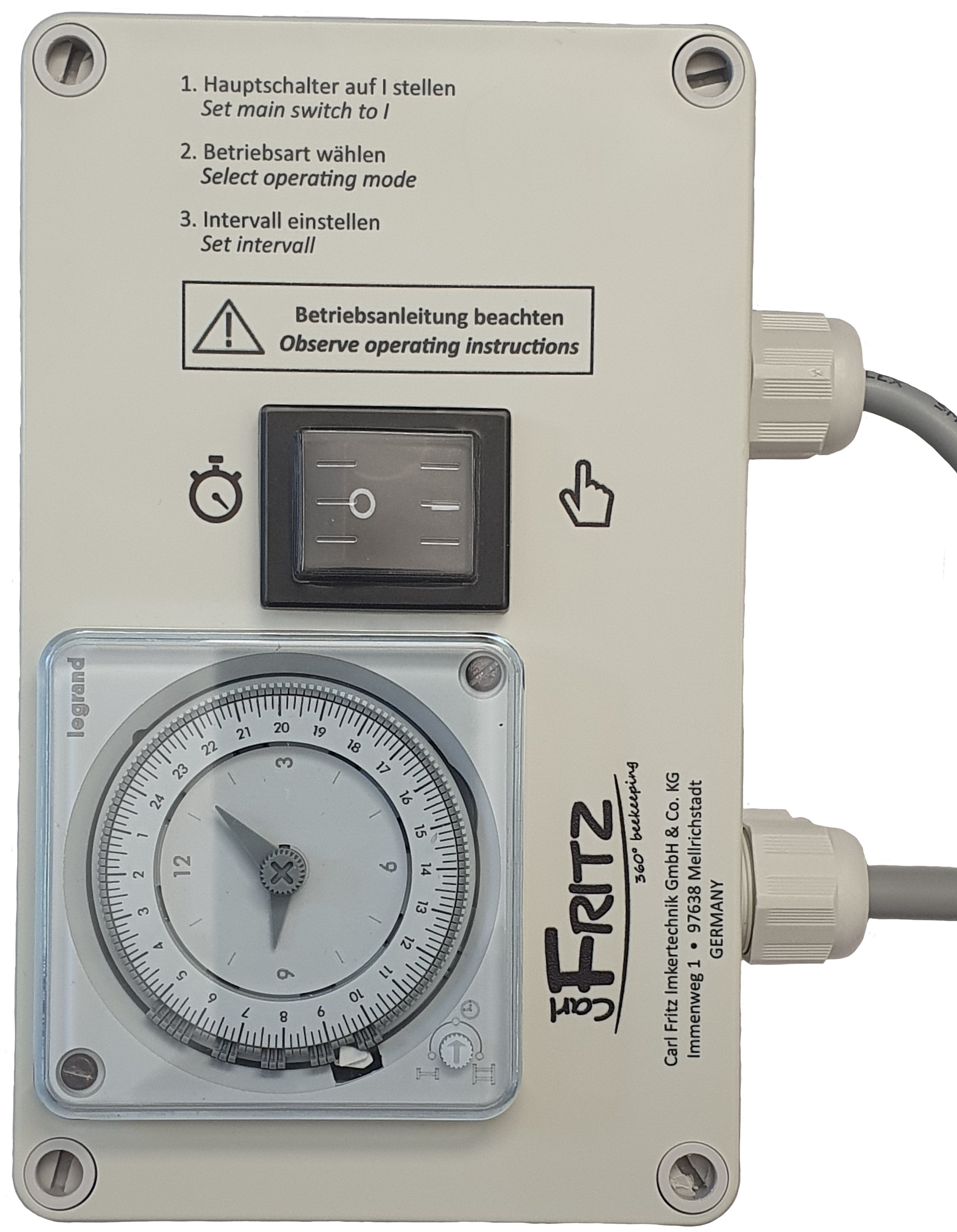

Time swith (installation by CFM)

This timer is suitable for all honey stirrers and mixers with 400 V motor.Using the timer, an even, recurring mixture of the honey can be set and therefore the consistency of the honey could be influenced. For example, the production of smooth, creamy honey. (24 hours programmable, shortest adjustable stirring time approx. 10 min.)One of our experienced employees does the installation.

€395.00*

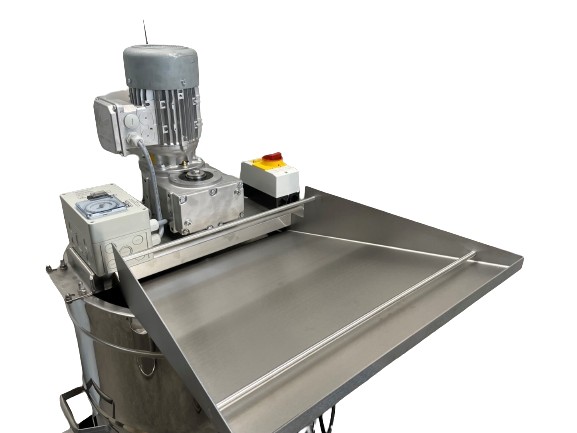

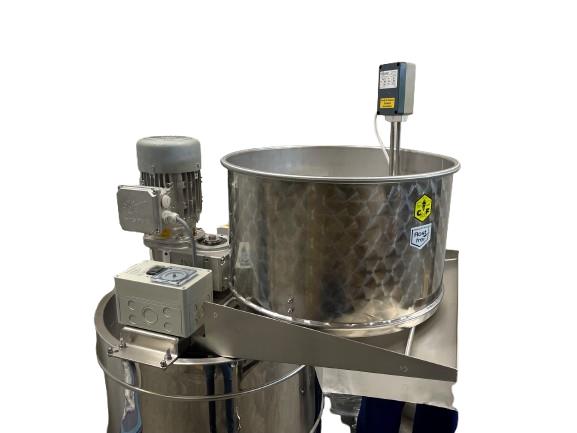

Filling chute für Melitherm Profi onto 300kg creamer

49500084

Filling chute für Melitherm Profi onto 300kg creamer

Made of Stainless Steel. The chute is easily hooked under the crossbar.(The Melitherm Profi is not included in the delivery.)

€295.00*

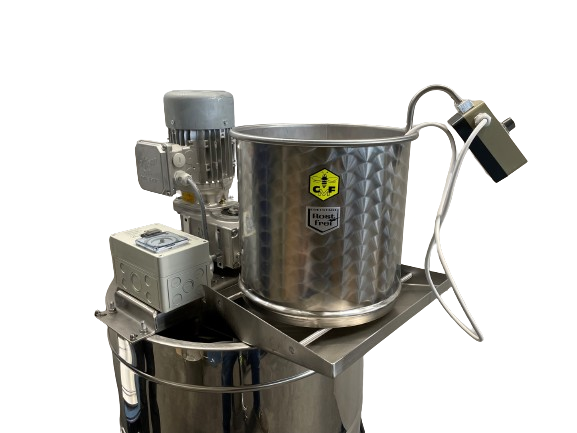

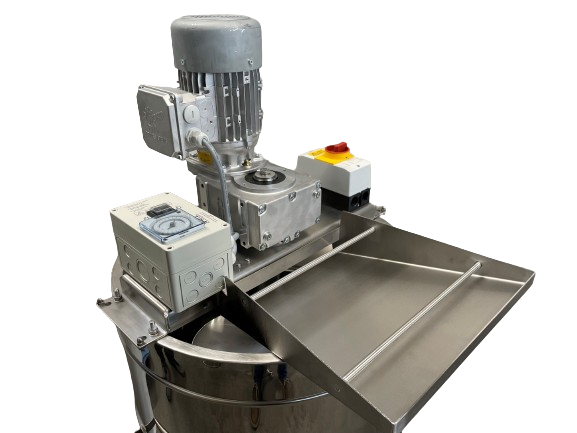

Filling chute für Melitherm AR onto 300kg creamer
