Product number:
5022100
Product information

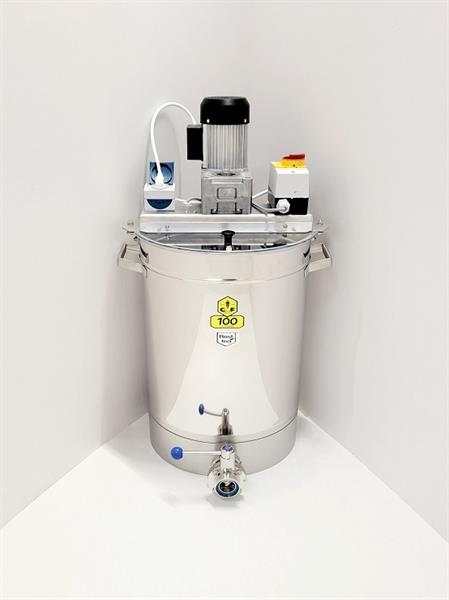

In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 250 W / 230 V
• Approx. 24 rpm

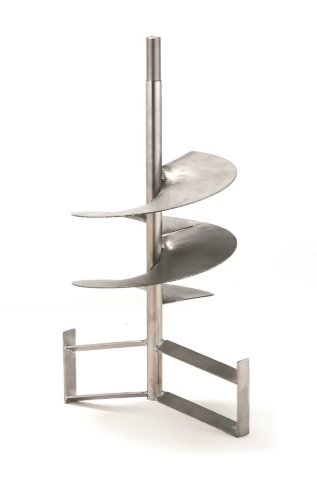

• Paddle screw with rake at the bottom
• Inner tank Ø 43 cm welded bottom without gap
• Rigid handles
• Tank bottom with slope to the outlet

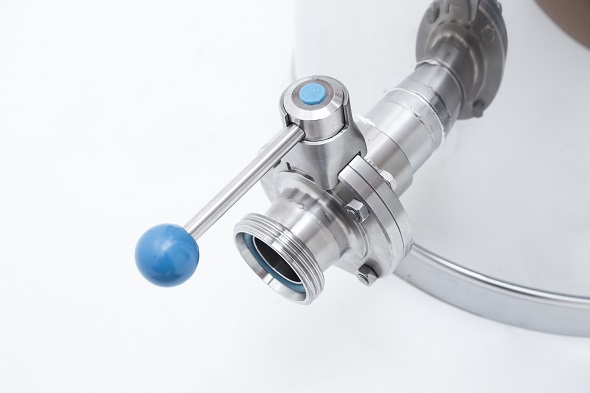

• Outlet: welded on DN40 dairy thread at bottom level with screwed on DN 40 disc valve
• Material: Stainless steel
• Outer tank height: 62 cm
• Total height: aprox. 90 cm
• Plug in timer switch included
Weight without/with wrapping: 32 kg / 36 kg
Wrapped in a cardboard box on a pallet
Accessories - please order separately:
Item no. 5009800 bottom heating
Login
accessories
5900202

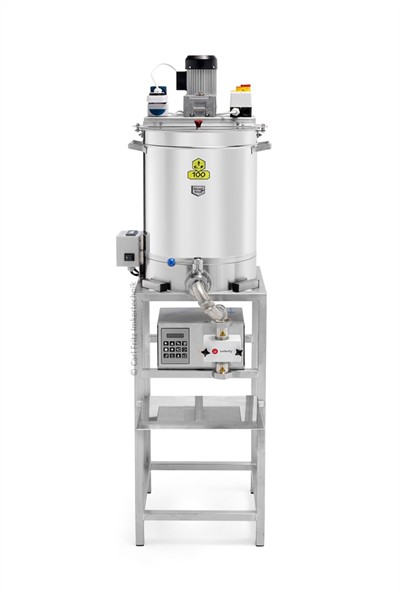

Support for creamer 100 kg together with filling machine Dana api Matic 1000
• Stainless steel, height 100 cm
• Suitable for No. 5022100 with filling machine No. 6099202
• Due to the stand design the stirrer is above the filling machine which is ideal for the filling process
• The stand includes a height adjustable tray. This tray can be moved up or down by loosening the screws so you always can adjust the proper distance between the honey glass and the bottling machine.
• After removing the filling socket and mounting a suction hose you can pump the honey easily into the creamer. So the uncomfortable transport of the creamer is not necessary anymore.
• Combination for making bottling honey easier.
• Including silicon tube with clamb as a connection between creamer and filling machine (DN40)
Please note: Delivery without creamer and filling machine.
49000039

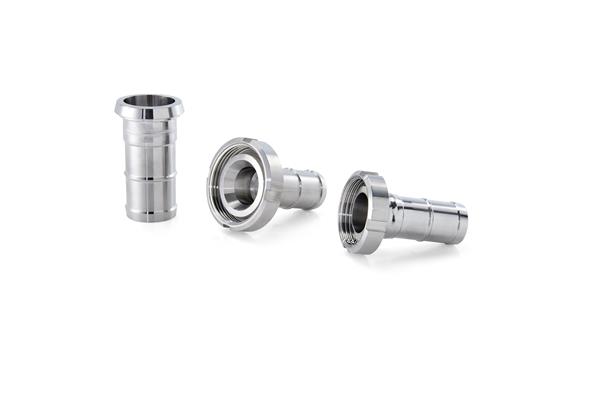

Half hose coupling DN40 / tube nozzle 40 mm
Half hose coupling made of stainless steel with cone connecting piece DN 40 and locking nut DN 40 for hose-Ø 40 mm.
For connecting hoses to disc valves.
5009800
Bottom heating 800 W / 230 V (up to Ø 50 cm)
The bottom heating 800 W / 230 V is installed by our expert staff.
Bottom heating thermostatically adjustable for tanks, honey creamers and honey extractors up to inner-Ø 50 cm.
similar items
5822100
CFM-Honey creamer 100 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 - 30 °C.
In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 250 W / 230 V
• Approx. 24 rpm
• Paddle screw with rake at the bottom
• Inner tank Ø 43, welded bottom without gap
• Outer tank Ø 48 cm
• Rigid handles
• Tank bottom with slope to the outlet
• Outlet: DN40 dairy thread welded at bottom level with screwed on DN40 disc valve
• Material: stainless steel
• Heater 3000 W / 230 V
• Capacity for double wall: approx. 38 liter
• Outer tank height: 72 cm
• Total height: 100 cm
• Incl. plug-in timer
Please note: We recommend filling the double wall with water (filtered rain water).
Weight without wrapping: 60 kg
Incl. wrapping: 65 kg
