CFM-Euro-Self-turning extractor 4 frames, Ø 63 cm, 270W motor

Create review

CFM-Euro-Self-turning extractor 4 frames, Ø 63 cm, 270W motor

€2,528.00*

Prices incl. VAT plus shipping costs

Available, Lieferzeit 1 - 3 Arbeitstage

Product number: 5714024

Product information

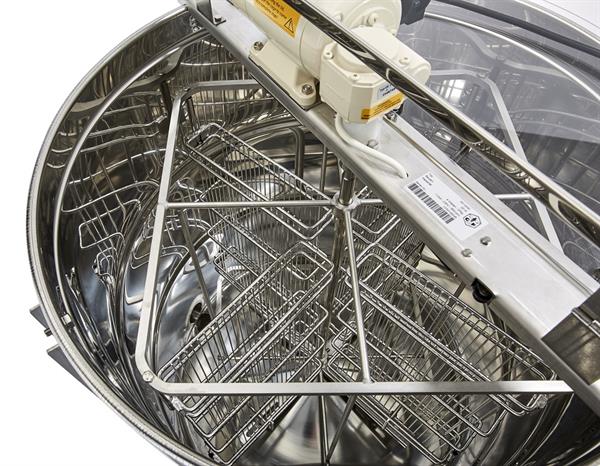

This CFM-Euro-Self-turning extractor is suitable for 4 frames Zander, German Standard or Langstroth. With an inner tank Ø of just 63 cm, this self-turning extractors is one of our narrowest models. The low-noise top drive gear motor offers you the possibility to switch from right to left (or vice versa) via a tilt switch. As soon as you change the direction with the switch, the drive automatically stops and then starts again in the other direction. The rotary knob can be steplessly adjusted. The honey extractor is also equipped with a safety device so that the lid cannot be opened during the extraction process. This mechanism is only released when the basket comes to a complete stop. Suitable for: • 4 deep frames up to 23 cm side bar length • Frame sizes: Zander, German Standard, Langstroth Technical details: • Security device with lid lock • Flat gear motor 270 W / 230 V • Left / right turn • Speed continously adjustable • Hinged acrylic glass lid halves • Inner tank Ø 63 cm, welded bottom without gap • Tank bottom with slope to the outlet • Outlet: 1 1/2" honey tap, welded at bottom level • Handles at the lower end of the tank • Frame pockets made of wire mesh bars 24 cm x 41 cm • Material: Edelstahl-Rostfrei • Total height: 126 cm • Distance from floor to the tap 38 cm Included in the delivery: 1 pack with one socket wrench no. 13 and a yellow sealant for the bottom bearing. Weight with/without wrapping: 45 kg / 65 kg Wrapping: cardboard box Chargeable weight: 65 kg Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6300061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20 g Item no. 23045007 Sealant for bottom bearing Acrylic glass lid half on request

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

6000070

Ball Ø 10 mm for bottom bearing

Ball small Ø 10 mm for insertion into the bottom bearing. For honey extractors with drive or motor on TOP of the honey extractor.

€1.50*

23045007

Sealant for bottom bearing (starting building year 2021)

Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top. This sealant is to cover the bottom bearing while cleaning the tank. Colour: yellow

€1.50*

6000074

Food lubricant grease for bottom bearing 20 g

Food grade grease for the bottom bearing. Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage. For regular maintenance of your honey extractor. Contents: tin with 20 g

Content: 0.02 Kilogramm (€325.00* / 1 Kilogramm)

€6.50*
