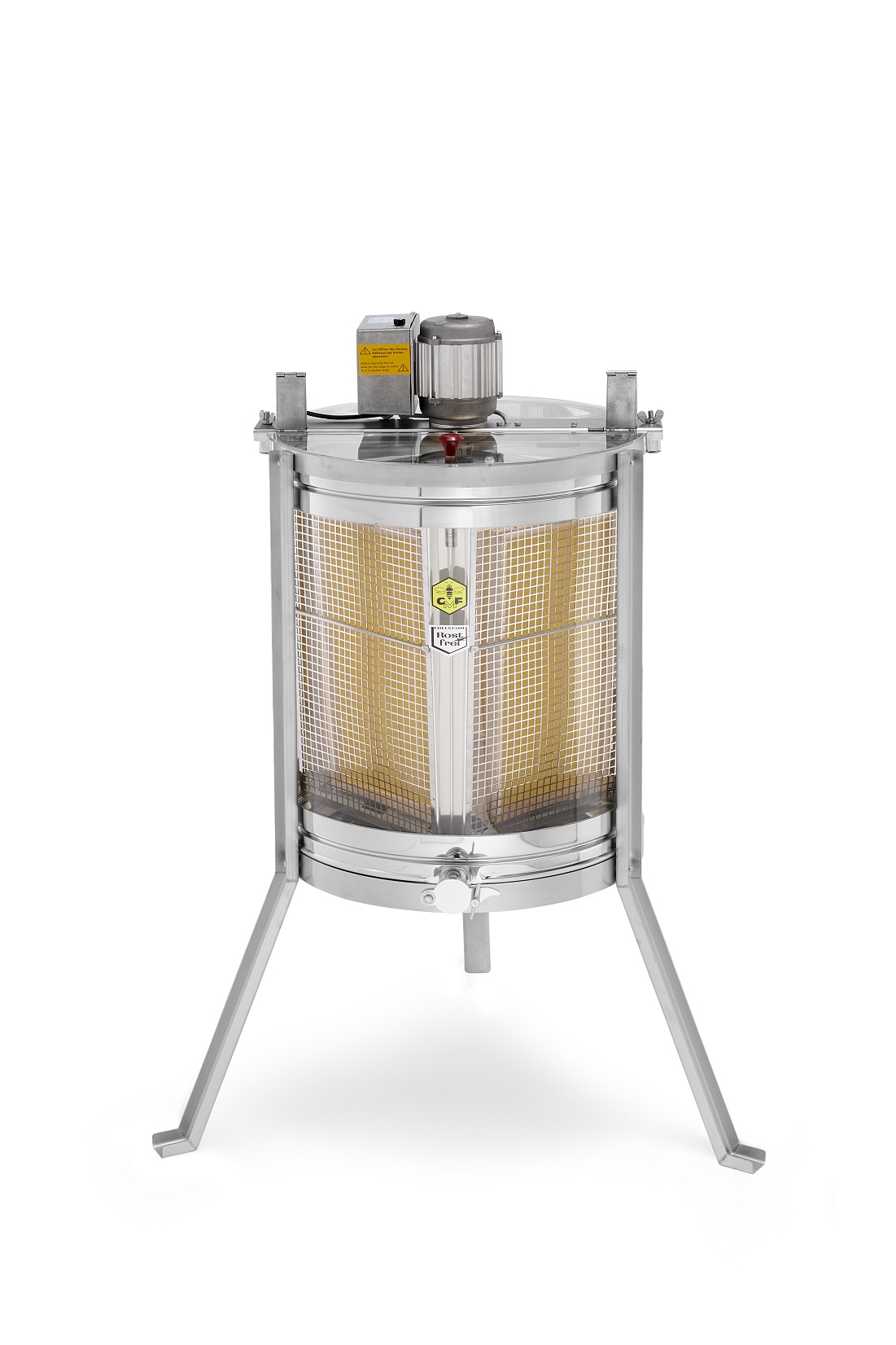

CFM-Acrylic glass tangential extractor Ø 50 cm, 4-frames with "Whispering Witch"

€1,929.00*

Available in 8 days, Lieferzeit 1 - 3 Arbeitstage

Product number: 5004581

Product information

* Our innovation for 2020 * This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier? Suitable for: • 4 frames up to 28 cm or 8 shallow frames up to 14 cm sidebar length • Frame sizes: Zander, DN, Langstroth, Freudenstein, Gerstung, Kuntzsch Technical data: • Direct drive with security switch • Motor power 40 W / 230 V • Very quiet drive, even at full speed • Infinitely variable speed control 80 - 350 rpm • Hinged acrylic glass lid halves • Inner tank Ø 50 cm • Grid area of the cage 29 cm x 46 cm • Without middle axis (frames can be turned in the cage) • Material: Stainless steel (cage) / food safe acrylic glass (tank) • Total height 116 cm • Distance from the floor to the bottom edge of the tank 38 cm Weight with/without packaging: 28 kg / 33 kg Packaging: Cardboard on pallet Chargeable weight: 33 kg Spare parts and accessories: Item no. 6000070 Ball for bearing Item no. 6300061 Rubber feet Item no. 6000074 Food lubricant grease for bottom bearing 20g Item no. 23045001 Sealant for bottom bearing Item no. 5002943 4-frames tangetial cage Acrylic glass lid half on request

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

accessories

5003244

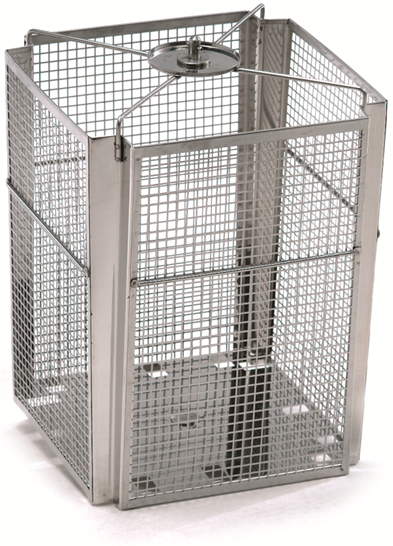

4 frames tangential cage 32 x 46 cm for tank Ø 55 cm

Cage without going through shaft so that the frames can be turned inside the cage. For extractors with Ø 55 cm. Stainless steel, grid area of the cage 32 x 46 cm. Our standard size on top and bottom of the drive shaft: Ø 14 mm. For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.

€294.00*

6300061

Rubber feet with stainless steel for extractor up to inner tank Ø 63 cm, 1 set = 3 pieces, with M8 grub screws and nuts

1 set (contains 3 pieces) of rubber feet with metal parts from stainless steel for honey extractors up to inner-Ø 63 cm with M8 threaded pin and nut. Protect your floors and ensure your extractor stands more firmly. Height of each rubber foot is 28 cm.

€18.30*

23045007

Sealant for bottom bearing (starting building year 2021)

Please note: Only for extractors building year 2021 or later. Plastic sealant for extractors with top drive, for example manual drive or with motor on top. This sealant is to cover the bottom bearing while cleaning the tank. Colour: yellow

€1.50*

6000074

Food lubricant grease for bottom bearing 20 g

Food grade grease for the bottom bearing. Suitable for all CFM honey extractors for re-greasing the bottom bearing for optimum rotation of the honeycomb cage. For regular maintenance of your honey extractor. Contents: tin with 20 g

Content: 0.02 Kilogramm (€325.00* / 1 Kilogramm)

€6.50*

6000070

Ball Ø 10 mm for bottom bearing

Ball small Ø 10 mm for insertion into the bottom bearing. For honey extractors with drive or motor on TOP of the honey extractor.

€1.50*
