Accessories for Water cooling system with circulation pump for 100 kg double walled tank (production year 2023 or later) including the following:
Product number:
6096000-5
Product information

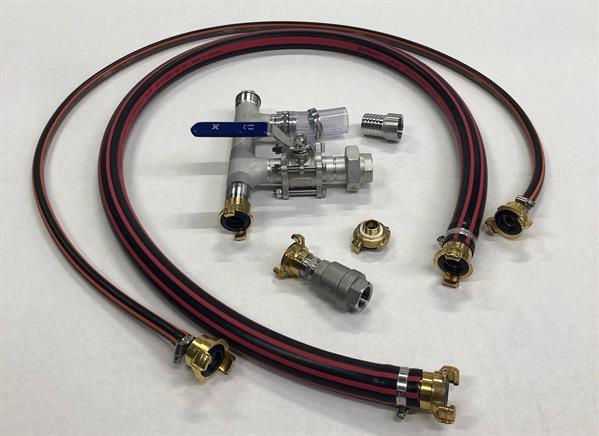

Accessories for Water cooling system (item no. 6096100) to connect to a double walled 100 kg tank (production year 2023 or later) with return circulation distributor - picture similar
Login
accessories
5822100
CFM-Honey creamer 100 kg (double walled)
This double-walled honey mixer is especially suitable for mixing different blossom honeys. With our CFM honey creamer you can achieve a uniform colour and consistency of the different kinds of honey by mixing them with each other at an even temperature of 25 - 30 °C.
In the tank you can stir up to 100 kg of honey. The combination of paddle screw and rake always transports the honey from the bottom to the top during the stirring process. This has the advantage that you can use the creamer even when only 1/3 full (rake has to be covered with honey)! At the same time, the plug-in timer offers you the possibility to set different stirring intervals per day.
Technical details:
• Flat gear motor 250 W / 230 V
• Approx. 24 rpm
• Paddle screw with rake at the bottom
• Inner tank Ø 43, welded bottom without gap
• Outer tank Ø 48 cm
• Rigid handles
• Tank bottom with slope to the outlet
• Outlet: DN40 dairy thread welded at bottom level with screwed on DN40 disc valve
• Material: stainless steel
• Heater 3000 W / 230 V
• Capacity for double wall: approx. 38 liter
• Outer tank height: 72 cm
• Total height: 100 cm
• Incl. plug-in timer
Please note: We recommend filling the double wall with water (filtered rain water).
Weight without wrapping: 60 kg
Incl. wrapping: 65 kg
6096200

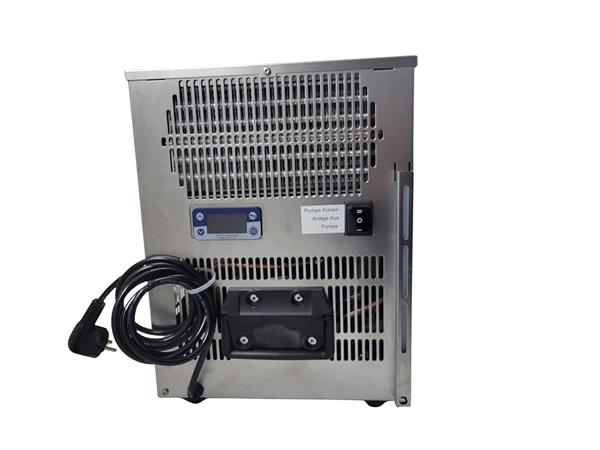

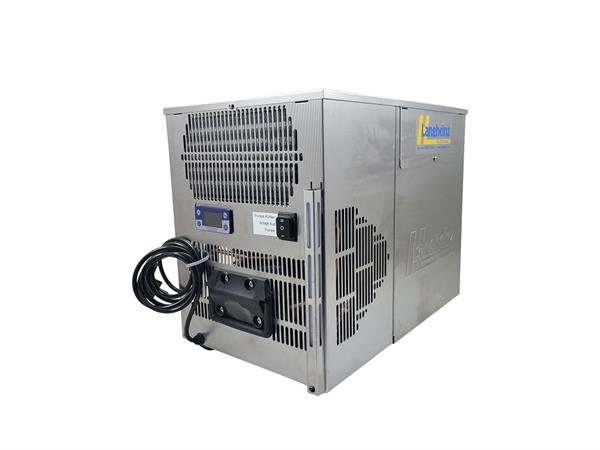

Water cooling system incl. circulation pump and digital temperature control
For tempering the honey during the creaming process – this produces the finest cream honey!
Ideal for use with double-walled honey creamers. It is also possible to retrofit a single-walled creamer with a capillary tubular mat.
The use of the device allows the honey to be optimally tempered while stirring, resulting in a homogeneous, fine crystal structure of the creamy honey.
The device consists of a cooling system and an integrated circulating pump. The pump serves to distribute the tempered water evenly within the double wall.
The pump can also be operated independently of the cooling system. The temperature range is adjustable from approx. 10 - 30°C. The regulation is working very precise. The temperature is set with a digital temperature regulation unit.
The device can only be used for cooling.
Technical Data:
Water connection: 3/4"
Cooling power: 457 W at0 °C, 527 W at +5 °C
Electrical power: 230 V, 50 Hz, 2,1 A / 350 W
Cooling machine: DLE4CN
Cooling refrigerant: R290
Filling quantity: 60 g
Tank content: 12,5 litre
Measurements (L/D/H): 480 x 300 x 400 mm
Casing: stainless steel
Agitator motor pump: TYP MID - 7, 230 V, 50 Hz, 0,6 A, 64 W
Weight: 25 kg
Shipping weight: 37 kg
Optional Accessories - Please order separately:
Item no. 6096000-3 tubes and connection kit for use with our 300 KG double walled creamer
Item no. 6096000-4 tubes and connection kit for use with our 600 KG double walled creamer
Item no. 6096000-5 tubes and connection kit for use with our 100 KG double walled creamer
