Product number:
5003840
Product information

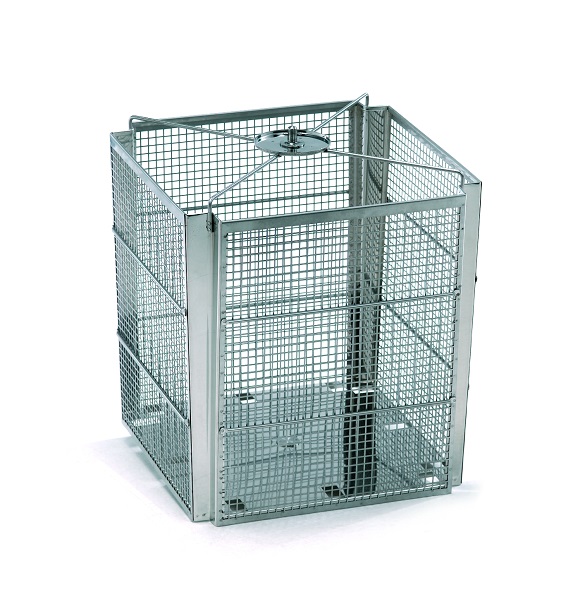

Cage without going through shaft so that the frames can be turned inside the cage.
For extractors with Ø 63 cm.
Stainless steel, grid area of the cage 38 x 46 cm.
Our standard size on top and bottom of the drive shaft: Ø 14 mm.
For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.
Login
accessories
5263018
CFM-Radial extractor Ø 63cm, 18 shallow frames with "Whispering Witch"
The basic model of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 18 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303818 3 grids
Item no. 5003840 4 frames tangential cage 38 x 46cm
Acrylic glass lid half on request
5163018
CFM-Radial extractor Ø 63cm, 18 shallow frames, with "Extractor Witch"
The basic model of our radial extractors with motor. The extractor has a honey tap and practical handles at the tank.
For cleaning just open the wing nuts at the cross-beam and take off the complete drive including the lids.
Suitable for:
• 18 shallow frames (side bar up to 16 cm and side bar width 42 mm)
• Frame sizes: Dadant super, Zander half and super, German Standard half and super, Langstroth half and super frames
Technical details:
• Top drive with safety device
• Motor 110 W / 230 V
• Hinged acrylic glass lid halfs
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 18 shallow frames
• Material: Stainless Steel
• Loading height: 100 cm
• Total height: 111 cm
• Distance from the floor to the honey tap: 38 cm
• Conversion into tangential extractor possible
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: approx. 50 kg / approx. 40 kg
Wrapping: cardboard box
Chargeable weight: 50 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203818 Radial cage for 18 shallow frames
Item no. 5303818 Grids to insert into the cage
Item no. 5003840 4-Frames tangential cage
Acrylic glass lid half on request
5263012-CH

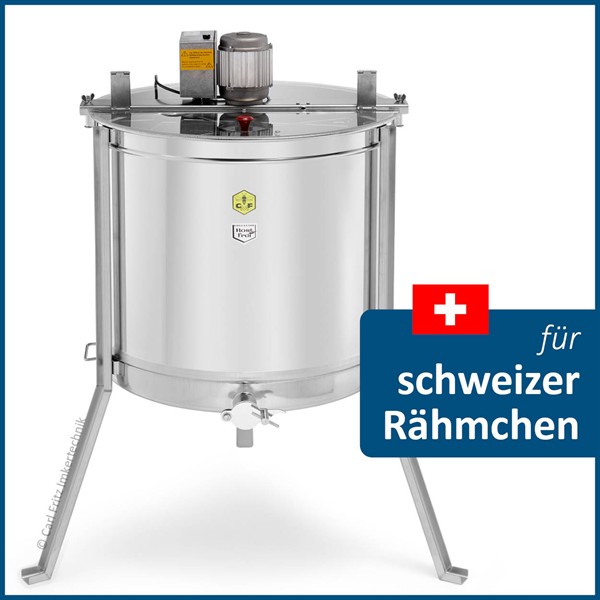

CFM-Radial extractor Ø 63cm, 12 SWISS frames, with "Whispering Witch"
Our Radial extractor especially for SWISS frames with adjusted cage height.
The extractors is equipped with our new "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 17.5 cm side bar length and 40 mm side bar width
• Frame sizes: low cage version especially made for SWISS frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 63 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 SWISS frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: approx. 50 kg / approx. 40 kg
Wrapping: cardboard box
Chargeable weight: 50 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712-CH 12 SWISS frames radial cage
Item no. XXX 3 grids
Item no. 5003840 4 frames tangential cage 38 x 46cm
Acrylic glass lid half on request
