Product number:
5003244
Product information

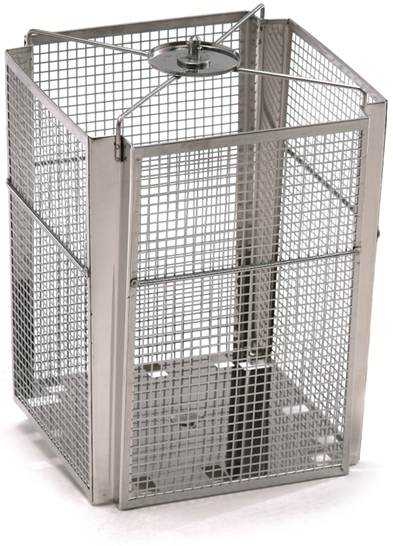

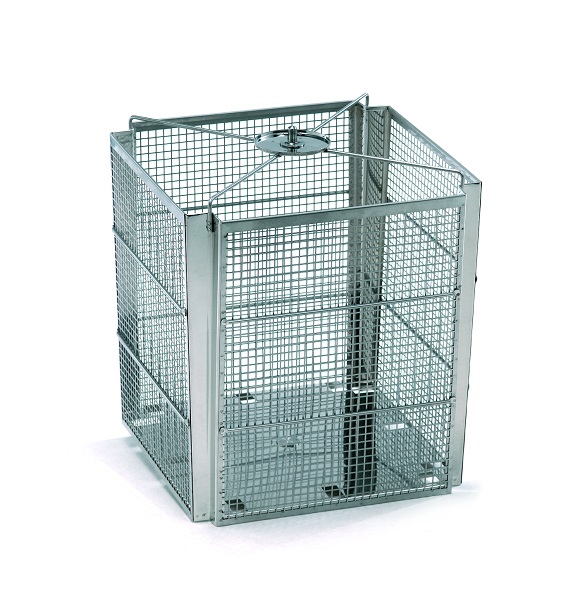

Cage without going through shaft so that the frames can be turned inside the cage.
For extractors with Ø 55 cm.
Stainless steel, grid area of the cage 32 x 46 cm.
Our standard size on top and bottom of the drive shaft: Ø 14 mm.
For order indicate the diameter of the shaft (top and bottom) and the length of the shaft.
Login
accessories
5004500

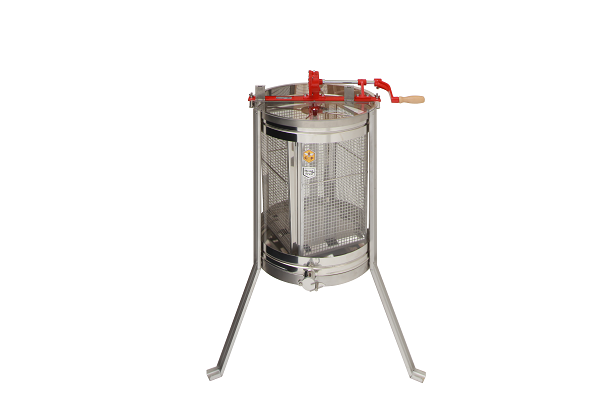

CFM-Acrylic glass tangential extractor, 4 frames, manual drive
Suitable for:
• 4 deep frames (side bar up to 28 cm) / 8 shallow frames (side bar up to 14 cm)
• frame sizes: Zander, German Standard, Langstroth, Freudenstein, Gerstung, Kuntzsch
Technical details:
• Manual drive
• Hinged acrylic glass lid halfs
• Tank inner-Ø 50 cm
• Grid area of the comb cage 29 x 46 cm
• Without middle axis (frames can be turned inside the cage)
• Food safe acrylic glass / stainless steel
• Total height 116 cm
Weight: 20 kg
Chargeable weight: 34 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20g
Item no. 23045001 Sealant for bottom bearing
Item no. 5002943 4-frames tangetial cage
Acrylic glass lid half on request
5004581

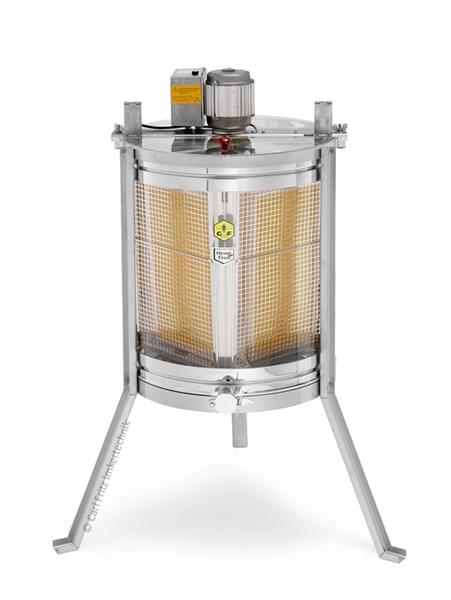

CFM-Acrylic glass tangential extractor Ø 50 cm, 4-frames with "Whispering Witch"
* Our innovation for 2020 *

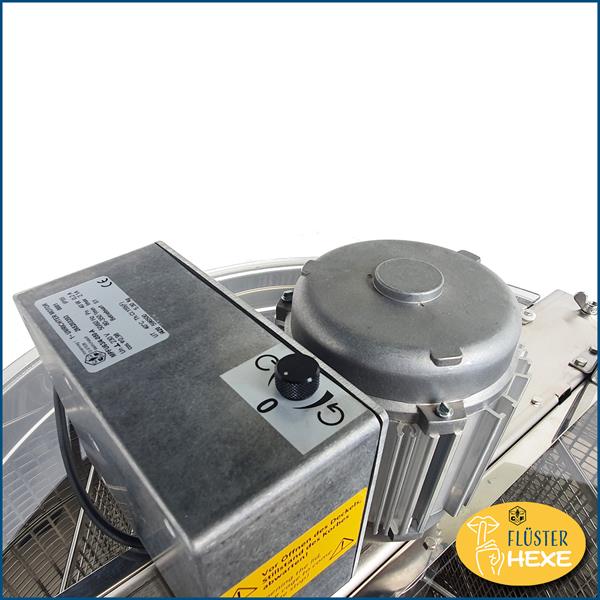

This honey extractor is equipped with our new CFM whispering witch (direct drive). Why is the name whispering witch? Because this drive is incredibly quiet. Even at full speed! In addition to the wonderful tranquility of the drive, the comfortable operation is also a major advantage. With one knob you have everything under control - can it be easier?
Suitable for:
• 4 frames up to 28 cm or 8 shallow frames up to 14 cm sidebar length
• Frame sizes: Zander, DN, Langstroth, Freudenstein, Gerstung, Kuntzsch
Technical data:
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive, even at full speed
• Infinitely variable speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 50 cm
• Grid area of the cage 29 cm x 46 cm
• Without middle axis (frames can be turned in the cage)
• Material: Stainless steel (cage) / food safe acrylic glass (tank)
• Total height 116 cm
• Distance from the floor to the bottom edge of the tank 38 cm
Weight with/without packaging: 28 kg / 33 kg
Packaging: Cardboard on pallet
Chargeable weight: 33 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20g
Item no. 23045001 Sealant for bottom bearing
Item no. 5002943 4-frames tangetial cage
Acrylic glass lid half on request
5055012

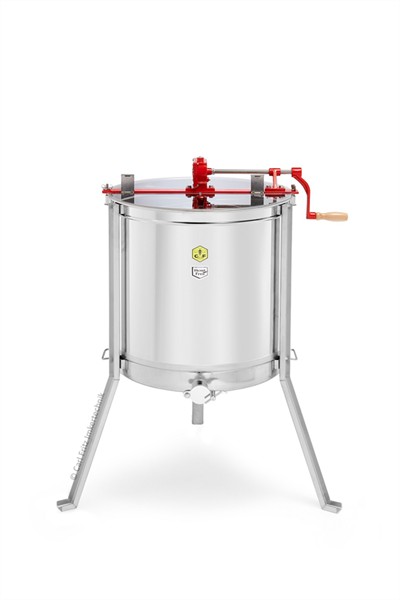

CFM-Honey extractor 12 shallow frames, radial, manual drive
The smallest of our CFM-Honey radial extractors with manual drive
Advantages are the compact design and the fact that you can run this honey extractor without electricity.
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
Technical details:
• Manual drive with hinged lid halfs
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 110 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 26 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request
5255012

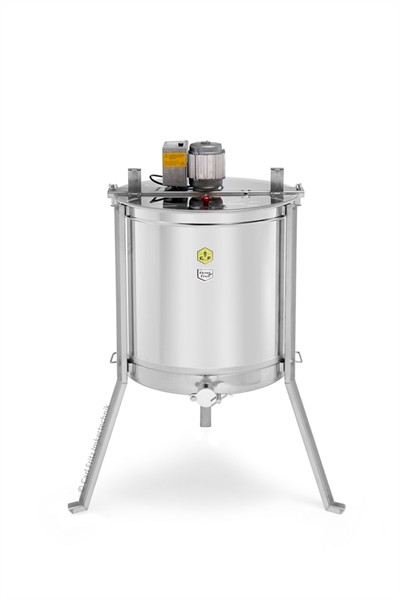

CFM-Radial extractor 12 shallow frames, with "Whispering Witch"
The smallest of our CFM-Honey radial extractors with "Whispering Witch".
Why "Whispering"? Because this drive is amazingly quiet even at full speed.
In addition to the superb quietness of the drive, the comfortable operation is also a major advantage. With a rotary knob you have everything under control – can it be easier?
This extractor is equipped with a honey tap and has two practical handles at the tank.
For cleaning just loosen the two screws of the traverse and take off the drive incl. the lids.
Suitable for:
• 12 shallow frames up to 16 cm side bar length and 42 mm side bar width
• Frame sizes: Dadant shallow frames, Zander shallow frames, German Standard shallow frames, Langstroth shallow frames
• Direct drive with security switch
• Motor power 40 W / 230 V
• Very quiet drive even at full speed
• Speed control 80 - 350 rpm
• Hinged acrylic glass lid halves
• Inner tank Ø 55 cm, welded bottom without gap
• Tank bottom with slope to the outlet
• Outlet: 1 1/2" honey tap, welded at bottom level
• Handles at the lower end of the tank
• Radial cage for 12 shallow frames
• Material: Edelstahl-Rostfrei
• Loading height: 100 cm
• Total height: 115 cm
• Distance from floor to the tap 38 cm
• Can be modified to extract tangential
Included in the delivery:
1 pack with hexagonal screws and nuts for the feet, one socket wrench no. 13 and a yellow sealant for the bottom bearing.
Weight with/without wrapping: XX kg / XX kg
Wrapping: cardboard box
Chargeable weight: 40 kg
Spare parts and accessories:
Item no. 6000070 Ball for bearing
Item no. 6300061 Rubber feet
Item no. 6000074 Food lubricant grease for bottom bearing 20 g
Item no. 23045007 Sealant for bottom bearing
Item no. 5203712 12 frames radial cage
Item no. 5303712 3 grids
Item no. 5003244 4 frames tangential cage 32 x 46cm
Acrylic glass lid half on request
